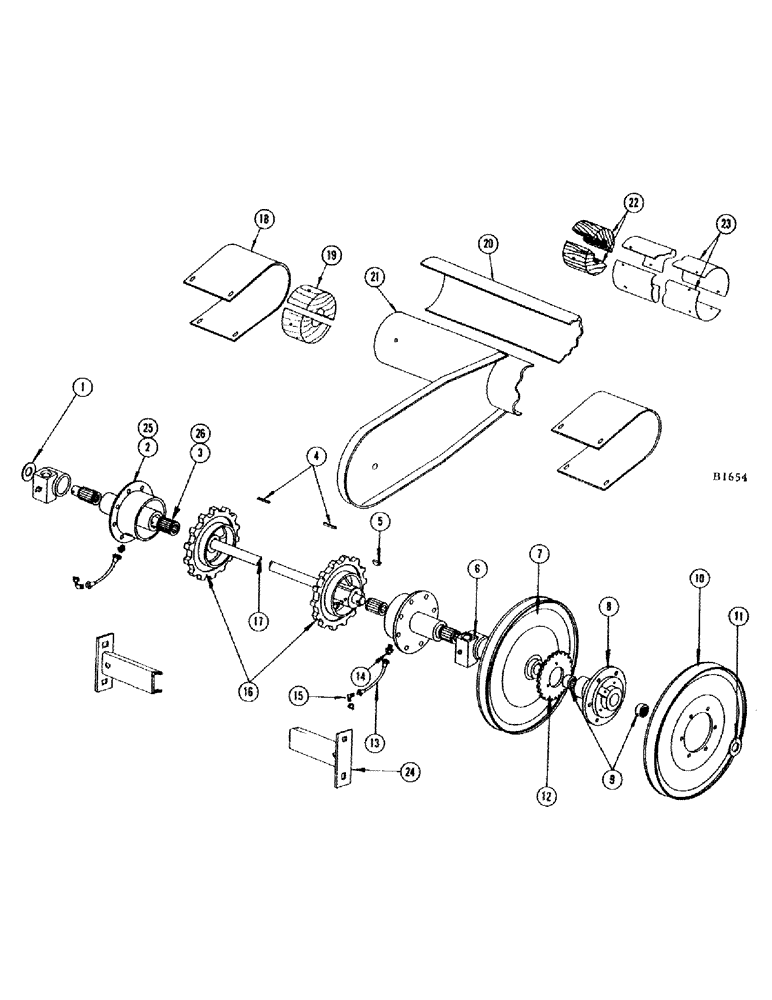

Запчасти Case IH 660 (082) - FEEDER RAKE UPPER SHAFT

1

F62231

WASHER - R.H. end (For F20900 shaft)

2шт.

T25644

WASHER

- R.H. end (For F22411 shaft)

2шт.

2

F83069

HUB - pivot plate (Before #8334601) see ref. 25

2шт.

3

F15709

BUSHING

2шт.

RIVET - 1/4" x 3/4" ctsk. hd. (46-412)

7шт.

4

F20957

KEY - sprocket to F20900 shaft

2шт.

F22401

KEY - sprocket to F22411 shaft

2шт.

5

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

Ref. 7 sheave to shaft #B, 5/16" x 1", HT

1шт.

6

F83093

BEARING

BLOCK - header pivot bearing, upper feeder rake shaft

2шт.

FITTING - grease 1/8" str. (219-1)

2шт.

7

F81743

SHEAVE - inside, drives upper feeder rake shaft

1шт.

8

F81746

HUB - header drive

1шт.

FITTING - grease 1/8" str. (219-1)

1шт.

9

F19478

NEEDLE BEARING,Needle, 31.75mm ID x 41.27mm OD x 19.05mm W

BEARING

2шт.

10

F81287

SHEAVE - header drive

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116) L.W. (92-6)

1шт.

11

F62110

WASHER - both ends of shaft

2шт.

12

F17454

SPROCKET - (30T) drive, upper feeder rake shaft

1шт.

BOLT - 3/8" x 2-1/2" N.F. hex. (14-640) nut (25-116) L.W. (92-6)

3шт.

13

F15710

OIL LINE - bearing

2шт.

FITTING - grease 1/8"-90 degrees (219-55)

2шт.

14

O3048CK

X

UNION - grease line, pivot plate hub

2шт.

15

O3049CK

ELBOW - grease line

2шт.

16

F1685

SPROCKET - (15T) grain combine (Before #8334601)

2шт.

F1716

SPROCKET - (15T) grain combine (#8334601 and after)

2шт.

SCREW - 3/8" x 1" N.C. sq. hd. cup pt. set (85-616) and jam nut (25-146)

2шт.

F1684

SPROCKET - (13T) 660 special combine

2шт.

17

F20900

SHAFT

- upper feeder rake (Before #8334601)

1шт.

F22411

SHAFT - upper feeder rake (#8334601 and after)

1шт.

PIN - cotter 3/16" x 2-1/2" (132-102)

2шт.

O5824A

WASHER - between ref. 7 sheave and ref. 8 hub (Not Shown)

1шт.

18

F19567

SHIELD - end, anti-wrap

2шт.

BOLT - 3/8" x 3/4" N.C. rhd. sq. nk. (11-612) nut (25-106) and L.W. (92-6), anit-wrap shields

8шт.

19

F4349

SUPPORT - shield, upper feed rake shaft (#8309001 to #8334601), anit-wrap

4шт.

F4352

SUPPORT - shield, upper feed rake shaft (#8334601 to #8357001), anit-wrap

47шт.

F4357

SUPPORT - shield, upper feed rake shaft (#8357001 and after), anit-wrap

2шт.

SCREW - #12 x 3/4" rhd. wood (186-69), anit-wrap shields

8шт.

20

F22249

SHIELD - center, anti-wrap (#8309001 and after)

1шт.

21

F84928

SHIELD - outer, anti-wrap (#8309001 and after)

1шт.

22

F4338

SUPPORT - shield, upper feed rake shaft (Before #8309001), anit-wrap

6шт.

SCREW - #12 x 1" rhd. wood (186-71), anit-wrap shields

12шт.

23

F18059

SHIELD - center, anti-wrap (Before #8309001)

2шт.

BOLT - 3/8" x 3/4" N.C. rhd. sq. nk. (11-612) nut (25-106) and L.W. (92-6), anit-wrap shields

6шт.

24

F83307

SUPPORT - shield, anti-wrap

2шт.

BOLT - 1/2" x 1" N.C. rhd. sq. nk. (111-816) nut (129-108) and L.W. (92-8), anit-wrap shields

4шт.

25

F91875

HUB - pivot plate (#8334601 and after), anit-wrap shields

2шт.

26

10545K

BUSHING

anit-wrap shields

2шт.
