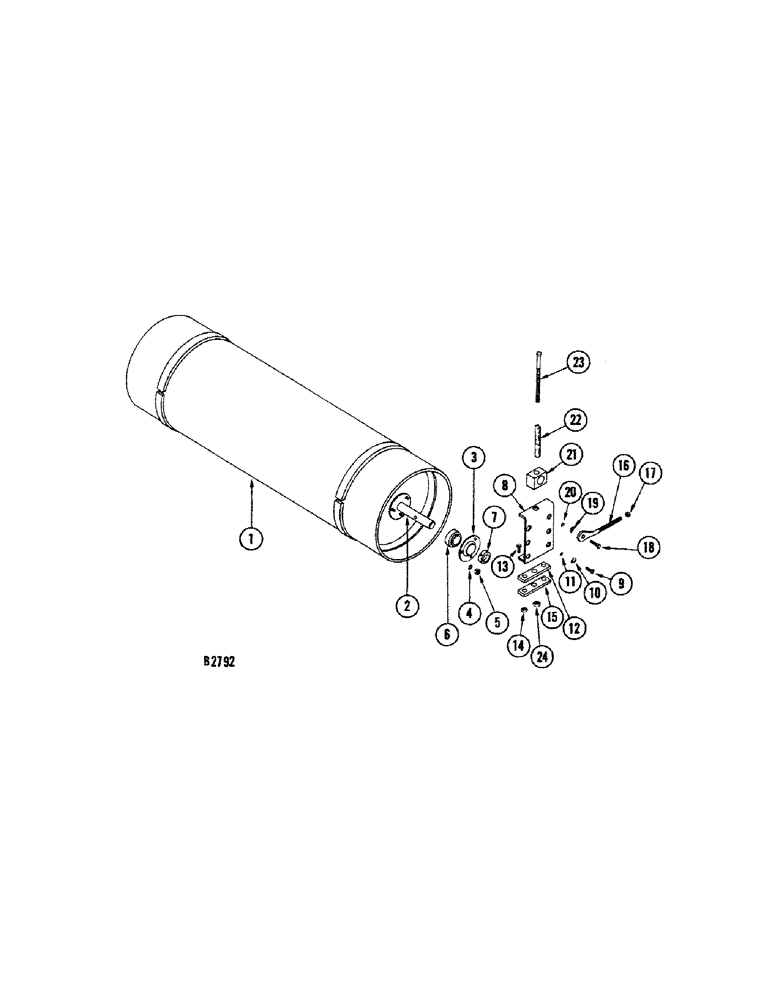

Запчасти Case IH 660 (081) - SPRING LOADED FEEDER RAKE DRUM, NUMBER 8357001 AND AFTER

1

F82574

DRUM - lower feed rake shaft

1шт.

2

F22650

PLOW BOLT

SHAFT - lower, feed rake

1шт.

3

B18282

FLANGE

- bearing

2шт.

4

92-5

LOCK WASHER,5/16"

6шт.

5

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

6шт.

6

F94133

HOUSING ASSY.

BEARING

2шт.

7

F10138

COLLAR

1шт.

8

F92653

BRACKET - drum

2шт.

9

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

8шт.

10

92-6

LOCK WASHER,3/8"

8шт.

11

195-25

WASHER,3/8"

- flat 3/8"

8шт.

12

F22654

PLOW BOLT

CUSHION - rubber, feed rake drum block

2шт.

13

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

14

131-4

LOCK NUT,5/16"-18, GB

LOCKNUT - 5/16" N.C.

4шт.

15

F22655

PLOW BOLT

PLATE - lower, feed rake drum bracket

2шт.

16

F22656

PLOW BOLT

BOLT - adjustment, feed rake drum

2шт.

17

25-117

NUT,7/16"-20, G5

- 7/16" N.C. hex.

4шт.

18

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

195-25

WASHER,3/8"

- flat 3/8"

2шт.

21

F22653

PLOW BOLT

BLOCK - feed rake drum

2шт.

22

71EB

SPRING

2шт.

23

13-6108

BOLT,Hex, 3/8" - 16 x 6-3/4", Gr 5

2шт.

24

131-6

LOCK NUT,3/8"-16, GC

LOCKNUT - 3/8" N.C.

2шт.
