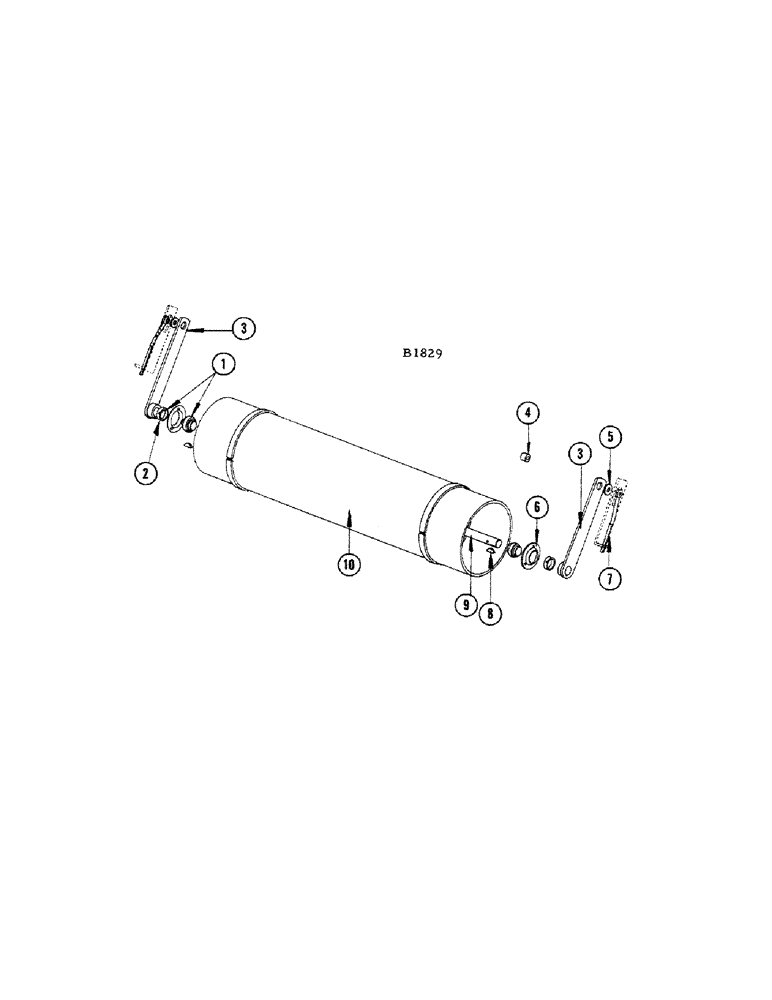

Запчасти Case IH 660 (081[A]) - FEEDER RAKE LOWER SHAFT, BEFORE NUMBER 8357001

1

F94133

HOUSING ASSY.

BEARING

2шт.

2

F10138

COLLAR

1шт.

3

F81691

ARM - adjustment

2шт.

4

F18490

SPACER

- eyebolt

2шт.

5

O273B

WASHER - between adjustment arm and side sheet

4шт.

6

B18282

FLANGE

- bearing

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

6шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

6шт.

92-5

LOCK WASHER,5/16"

6шт.

7

F17402

EYEBOLT - adjustment

2шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

4шт.

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

2шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

2шт.

92-7

LOCK WASHER,7/16"

2шт.

8

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Arm to shaft #C, 5/16" x 1 1/8", HT

2шт.

9

F17397

SHAFT

- lower feed rake

1шт.

10

F82574

DRUM - lower feed rake shaft

1шт.
