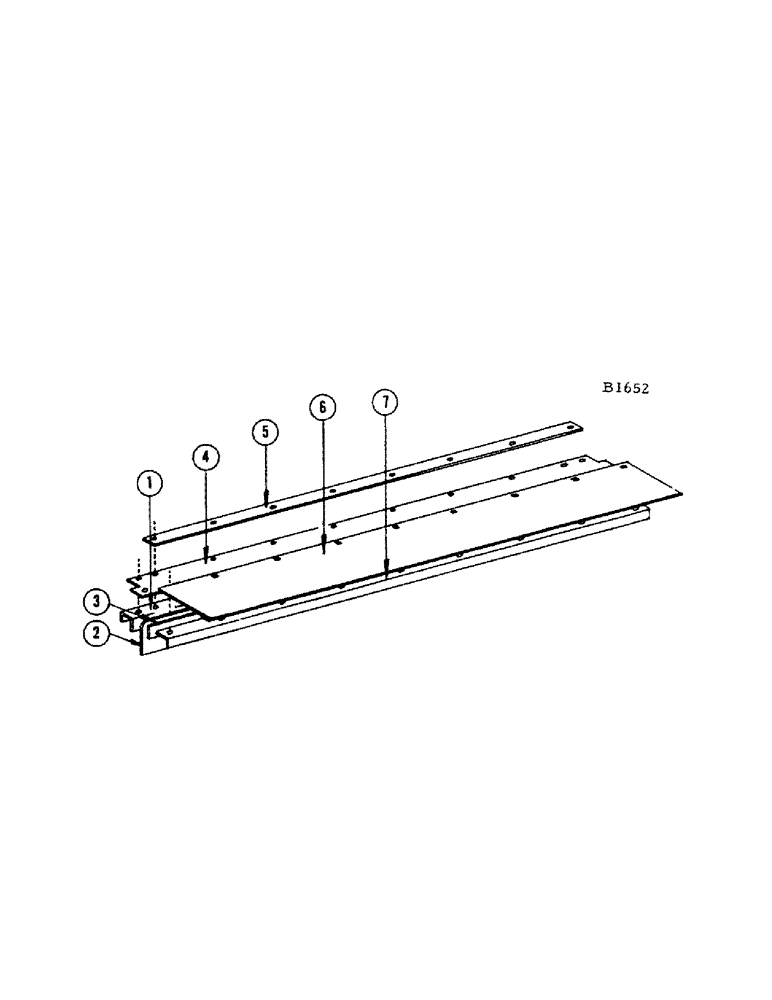

Запчасти Case IH 660 (080) - HINGED FEED PLATE FOR FEEDER SPOUT

1

F22367

REINFORCEMENT - feed plate (#8309001 and after)

1шт.

F15741

REINFORCEMENT - feed plate (Before #8309001)

1шт.

2

F22366

SEAL - rubber (#8309001 and after)

1шт.

3

F22368

STRIP - bolting, reinforcement (#8309001 and after)

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)

10шт.

4

F18814

HINGE - rubber, for feeder spout

1шт.

5

F15739

STRIP - bolting, feed plate

1шт.

BOLT - 1/4" x 3/4" N.C. rhd. sq. nk. (11-412) nut (25-104)

8шт.

6

F22245

FEED PLATE - feeder spout

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut 24-104)

9шт.

7

F22246

REINFORCEMENT

- feed plate (#8309001 and after)

1шт.

F18815

REINFORCEMENT

- feed plate (Before #8309001)

1шт.
