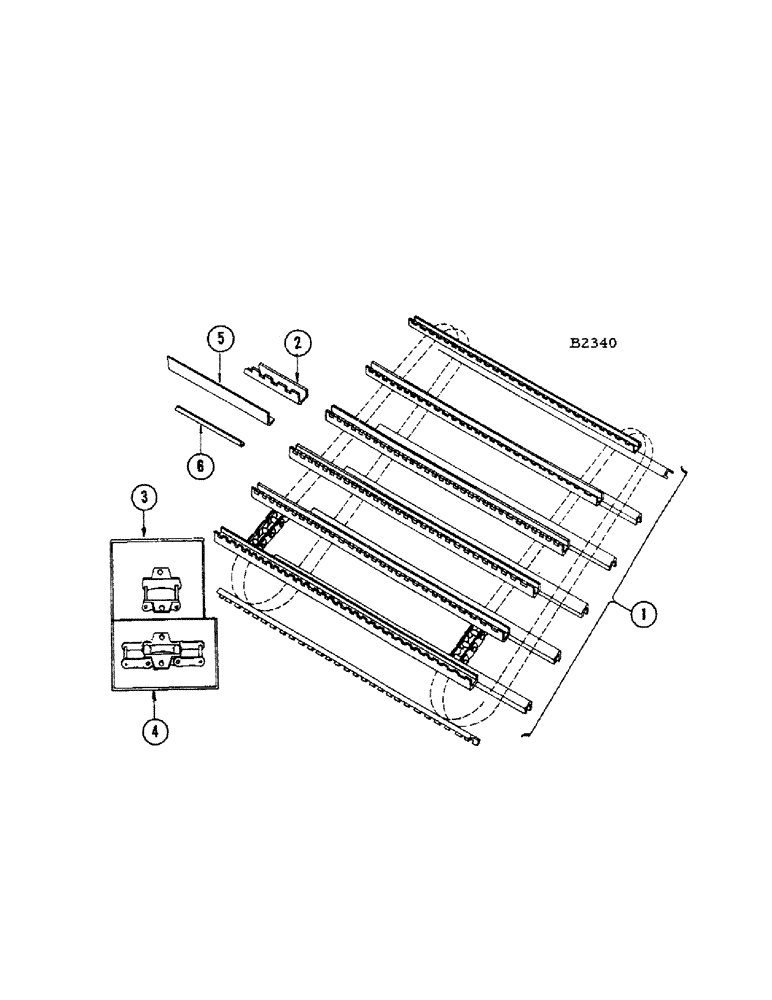

Запчасти Case IH 660 (080[A]) - FEEDER RAKE

1

F84455

FEEDER RAKE - Consists of 11-F21722 slats, 20-F11698 outside att. links, 2-inside att. links, 2-K3915 offset links, 2-K3913 conn. links and 100 plain links #A550 roller chain)

1шт.

2

F21722

SLAT - feeder rake

11шт.

45-410

RIVET,But Hd, 1/4" x 5/8"

- 1/4" x 5/8" rhd.

44шт.

3

F11698

LINK ASSY.

LINK - conn. attachment

1шт.

4

F79916

LINK - roller attachment (Includes 2 conn. links)

1шт.

K3915

LINK

- offset

1шт.

K3913

LINK

- connector

1шт.

K3914

LINK

- roller

1шт.

F79124

COTTER - hardened (Pkg. of 25)

1шт.

5

F17575

WIPER

STRIP - wiper (5-grain combine, 11-660 special combine)

1шт.

6

F17576

REINFORCEMENT - wiper strip (5-grain combine, 11-660 special combine)

1шт.

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- 1/4" x 3/4" N.F. hex. (40-grain combine, 88-660 special combine)

1шт.

129-121

NUT,1/4"-28, G5

(40-grain combine, 88-660 special combine) 1/4"-28, G5

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (40-grain combine, 88-660 special combine) 1/4"

1шт.
