Запчасти Case IH 660 (078) - FRONT DECK

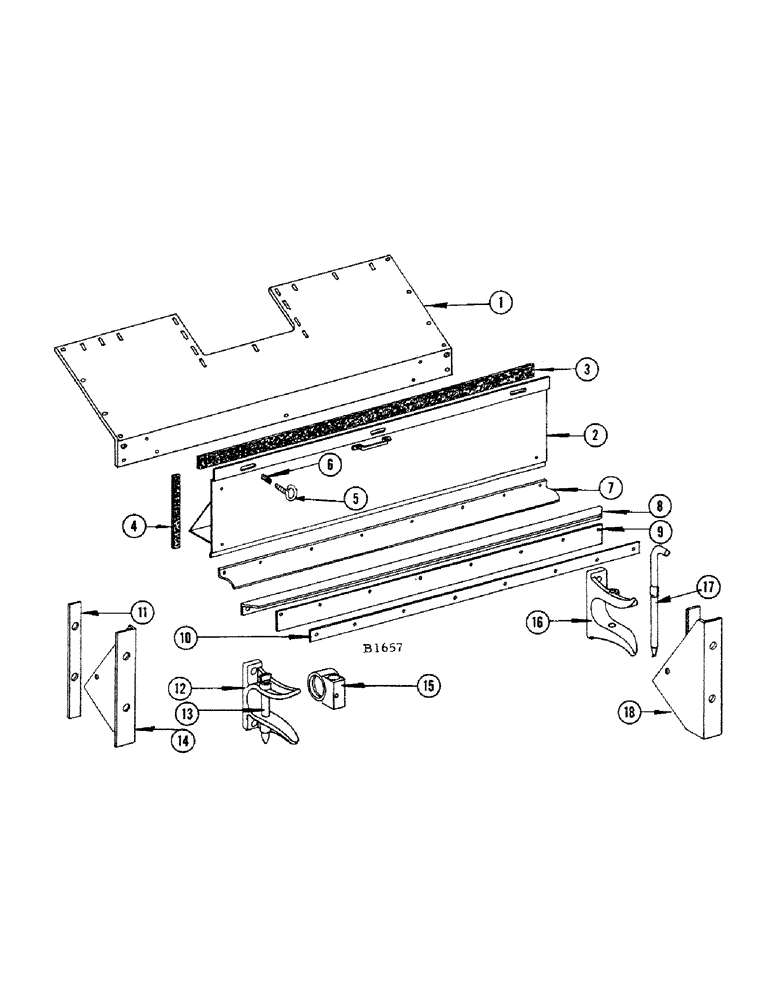

Схема запчастей Case IH 660 - (078) - FRONT DECK
17
5
2
1
11
18
8
7
16
9
3
13
10
6
15
4
14
12

№

Артикул

Название

Примечание

Количество

1

F18479

FRONT DECK - grain combine

1шт.

SCREW - 5/16" x 1/2" N.C. rhd. mach. (75-58) nut (25-105) and L.W. (92-5)

2шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116) L.W. (92-6)

6шт.

1

F19497

FRONT DECK - 660 special combine

1шт.

2

F84714

DOOR - cylinder (Rub Bar - V.S. cylinder drive) Replaces F83090 when stocks are exhausted, concave access section

1шт.

F84716

DOOR - cylinder (Spike Tooth - V.S. cylinder drive) Replaces F83315 when stocks are exhausted, concave access section

1шт.

3

F22002

SEAL

- (Foam) top, for cylinder door, concave access section

1шт.

4

F19317

SEAL - (Foam) side, for cylinder door, concave access section

2шт.

HANDLE - Stanley #479 (228-3), concave access section

1шт.

RIVET - 3/16" x 3/8" W.B. hd. (49-36), concave access section

2шт.

F83090

DOOR - cylinder (Rub Bar - chain cylinder drive) Replaced by F84714 when stocks are exhausted, concave access section

1шт.

F83315

DOOR - cylinder (Spike Tooth - chain cylinder drive) Replaced by F84716 when stocks are exhausted, concave access section

1шт.

3

F19316

SEAL - (Foam) top, for cylinder door, concave access section

1шт.

4

F19317

SEAL - (Foam) side, for cylinder door, concave access section

2шт.

HANDLE - Stanley #479 (228-3), concave access section

1шт.

RIVET - 3/16" x 3/8" W.B. hd (49-36), concave access section

2шт.

5

F19960

LATCH

BOLT - latch, for cylinder door, concave access section

3шт.

NUT - 1/4" N.C. hex. (25-104), concave access section

6шт.

6

117EB

SPRING

- door latch bolt, concave access section

3шт.

7

F20192

SHIELD - feeder spout (Spike Tooth only), concave access section

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (14-412) nut (25-114) L.W. (92-4), concave access section

8шт.

8

F16211

ANGLE - feeder spout, concave access section

1шт.

BOLT - 7/16" x 1" N.F. hex. (14-716) nut (25-117) L.W. (92-7), concave access section

2шт.

9

F16213

SEAL

- feeder spout angle, concave access section

1шт.

10

F16214

STRIP - backing, concave access section

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (14-412) nut (25-114) L.W. (92-4), concave access section

8шт.

11

F18745

SPACER - cylinder post scuff plates, header pivot brackets

2шт.

12

F1105

PIVOT - header, R.H. side, brackets

1шт.

BOLT - 5/8" x 1-3/4" N.F. hex. (14-1028) nut (25-1110) and L.W. (92-10), header pivot brackets

2шт.

13

F6266

PIN - locking, RH. side pivot, header brackets

1шт.

14

F18746

PLATE - scuff, R.H. cylinder post, header pivot brackets

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) nut (25-114) L.W. (92-4), header pivot brackets

1шт.

WASHER - 1/4" flat (95-4), header pivot brackets

1шт.

15

F83093

BEARING

BLOCK - header pivot bearing, brackets

2шт.

FITTING - grease 1/8" str. (219-1), header pivot brackets

2шт.

16

F1105

PIVOT - header, L.H. side, brackets

1шт.

BOLT - 5/8" x 1-3/4" N.F. hex. (14-1028) nut (25-1110) and L.W. (92-10), header pivot brackets

2шт.

17

F17831

PIN - locking, L.H. side pivot, header brackets

1шт.

18

F18747

PLATE - scuff, L.H. cylinder post, header pivot brackets

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) nut (25-114) L.W. (92-4), header pivot brackets

1шт.

WASHER - 1/4" flat (95-4), header pivot brackets

1шт.

Выбрано товаров: 41
