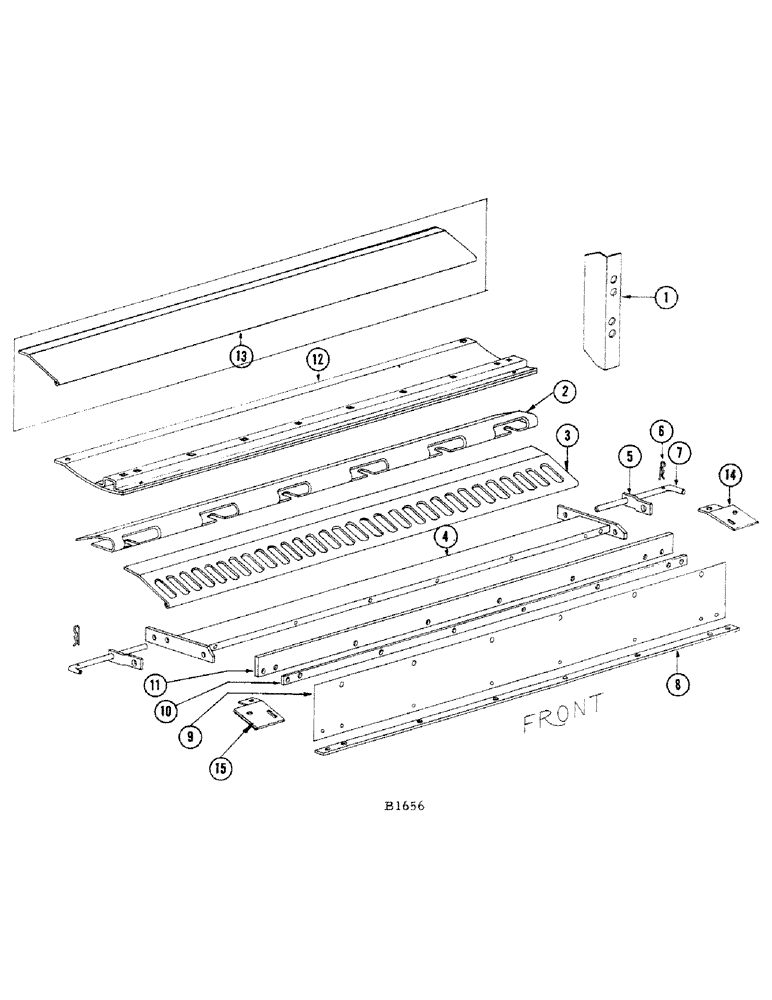

Запчасти Case IH 660 (076) - STONE TRAP FEED PLATE

1

F18748

PLATE - scuff, cylinder post

2шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) nut (25-114) L.W. (92-4)

2шт.

2

F17917

FEED PLATE - concave

1шт.

3

F18819

FEED PLATE - perforated - 28 slots (See ref. 13)

1шт.

4

F82067

SEAL - mounting plate, front grain pan

1шт.

BOLT - 5/16" x 1" N.F. hex. (114-104) nut (129-122) and L.W. (192-20)

2шт.

5

F17918

BRACKET - locking pin

2шт.

BOLT - 5/16" x 7/8" N.F. hex. (114-101) nut (129-104) and L.W. (192-20)

2шт.

6

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), , For F17916 locking pin Int, 3/16 x .080"

2шт.

7

F17916

PIN - locking, feed plate

2шт.

8

F21486

STRIP - bolting, front grain pan seal

1шт.

SCREW - 1/4" x 1/2" N.C. rhd. mach. (173-201) nut (129-101) and L.W. (192-19)

8шт.

9

F21485

SEAL - front, grain pan

1шт.

10

F17910

STRIP - bolting, front grain pan mounting seal

2шт.

SCREW - 1/4" x 1/2" N.C. rhd. mach. (75-48) nut (25-104) and L.W. (92-4)

8шт.

SCREW - 1/4" x 5/8" N.C. rhd. mach. (75-410) nut (25-104) and L.W. (92-4)

8шт.

11

F17908

SEAL - rubber, feeder

1шт.

12

F82068

PLATE - seal feeder

1шт.

13

F18245

FEED PLATE - solid (Can be used in place of F18819)

1шт.

14

F17911

SHIELD - front corner, L.H.

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) nut (25-114) L.W. (92-4)

1шт.

15

F17912

SHIELD - front corner, R.H.

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) nut (25-114) L.W. (92-4)

1шт.

F20449

FEED PLATE - concave (Used in place of F17917 and F18819 - ref. 2 and 3), deep sump stone attachment

1шт.
