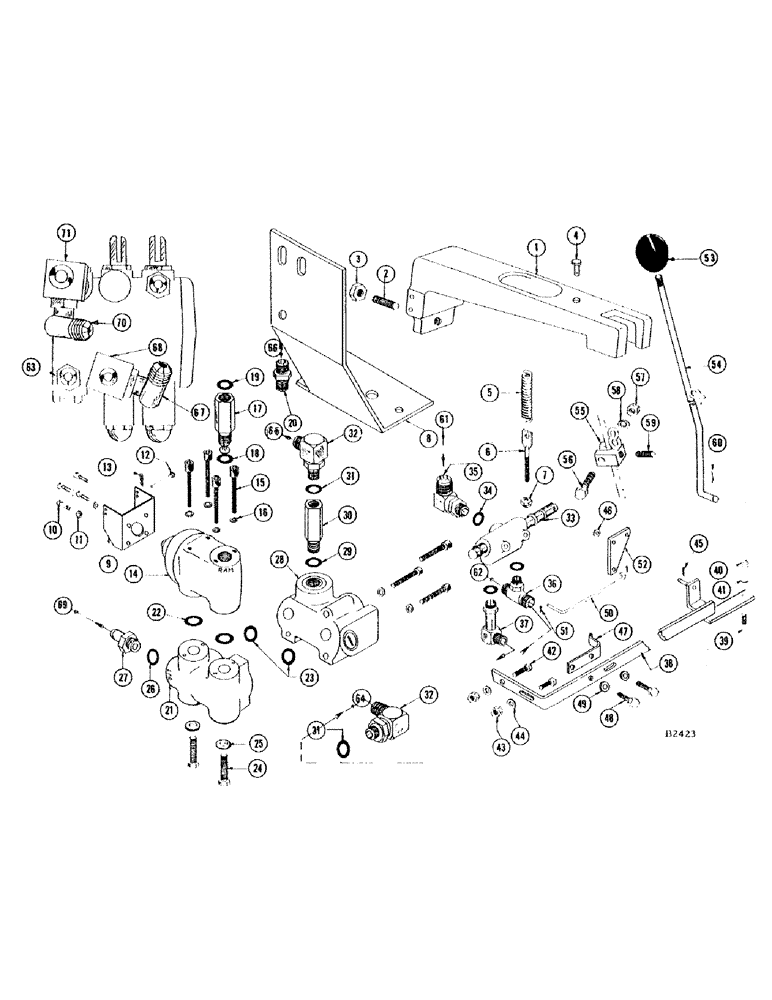

Запчасти Case IH 660 (072) - AUTOMATIC HEADER CONTROL

1

F2102

ARM - metering

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

3

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex. jam

1шт.

4

F53383

PIN - yoke

1шт.

5

F53381

SPRING

1шт.

6

F53382

BOLT - spade

1шт.

7

131-2

NUT,1/4"-20, GB

LOCKNUT, 1/4"-20, GB

1шт.

8

F91684

BRACKET - automatic valve bank

1шт.

9

F22091

BRACKET - metering arm

1шт.

10

62-48

HEX SOC SCREW,1/4"-28 x 1/2"

SCREW - 1/4" x 1/2" N.F. socket hd. cap

4шт.

11

193-28

LOCK WASHER,Int Tooth, 1/4"

LOCKWASHER - 1/4" internal

4шт.

12

F22092

PIN - clevis

1шт.

13

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

1шт.

14

F91708

VALVE - metering

1шт.

F53377

"O" RING

1шт.

15

165-29

SCREW,#10 - 24 x 2"

CAP SCREW - #10 - 24 x 2" hex. socket

4шт.

16

193-28

LOCK WASHER,Int Tooth, 1/4"

LOCKWASHER - 1/4" internal

4шт.

17

F91712

CARTRIDGE

1шт.

18

F53385

GASKET - copper

1шт.

19

F53361

"O" RING

1шт.

20

F53388

FITTING - str., ram line

1шт.

21

F91713

BLOCK - porting

1шт.

22

F53361

"O" RING

2шт.

23

F53429

"O" RING

2шт.

24

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- 1/2" x 3/4" N.C. hex.

2шт.

25

92-8

LOCK WASHER,1/2"

2шт.

26

F53361

"O" RING

1шт.

27

F53388

FITTING - porting block "out" port

1шт.

28

F91716

FLOW DIVIDER

1шт.

29

F53361

"O" RING

2шт.

F53393

"O" RING

1шт.

30

F91754

CHECK VALVE

1шт.

31

F53361

"O" RING

2шт.

32

F53386

FITTING - elbow, flow divider

2шт.

33

F91719

VALVE - selector

1шт.

F53400

RING - retaining

2шт.

F53401

"O" RING

2шт.

F53402

WASHER - backup

2шт.

34

F53361

"O" RING

3шт.

35

F53386

FITTING - elbow, selector valve

1шт.

36

F91756

X

TEE - 1/2" outlet selector valve

1шт.

37

F53404

FITTING - elbow, extended

1шт.

38

F91687

BRACKET - selector valve

1шт.

39

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

40

25-104

NUT,1/4"-20, G5

1шт.

41

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

42

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

43

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

44

92-5

LOCK WASHER,5/16"

2шт.

45

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

1шт.

46

95-5

WASHER,3/8" x 7/8" x .083"

- flat 5/16"

1шт.

47

F53379

CLIP - spring lock, selector control rod

1шт.

48

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

49

92-5

LOCK WASHER,5/16"

2шт.

50

F53378

ROD - selector control

1шт.

51

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

2шт.

52

F53374

LINK - selector control

1шт.

53

F53413

X

KNOB - selector lever

1шт.

54

F91759

LEVER - selector

1шт.

55

F53410

CLAMP

1шт.

56

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16" x 1-1/4" N.C. hex.

1шт.

57

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

58

92-5

LOCK WASHER,5/16"

1шт.

59

178-42

SET SCREW

SCREW - 5/16" x 1/2" N.C. hex. socket headless set

1шт.

60

132-26

COTTER PIN

PIN - cotter 3/16" x 5/8"

1шт.

61

F91746

LINE - hydraulic (From pump line to port of selector valve)

1шт.

62

F91744

LINE - hydraulic (From "T" of selector valve to "in" port of combine valve

1шт.

63

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

FITTING - str. for F91744 line

1шт.

64

F91745

LINE - hydraulic (From elbow of selector valve to "in" port of flow divider)

1шт.

65

F91748

LINE - hydraulic (From "CF" port of flow divider to "T" of selector valve)

1шт.

66

F91747

LINE - hydraulic (Ram line, from auto valve return "out" port on combine valve header section)

1шт.

67

F53386

FITTING - elbow

1шт.

68

F53423

FITTING - swivel nut, run "T"

1шт.

69

F91749

LINE - hydraulic (Auto valve "out" port to "T" out port on combine valve)

1шт.

70

F53386

FITTING - elbow

1шт.

71

F53420

FITTING - swivel nut, run "T"

1шт.
