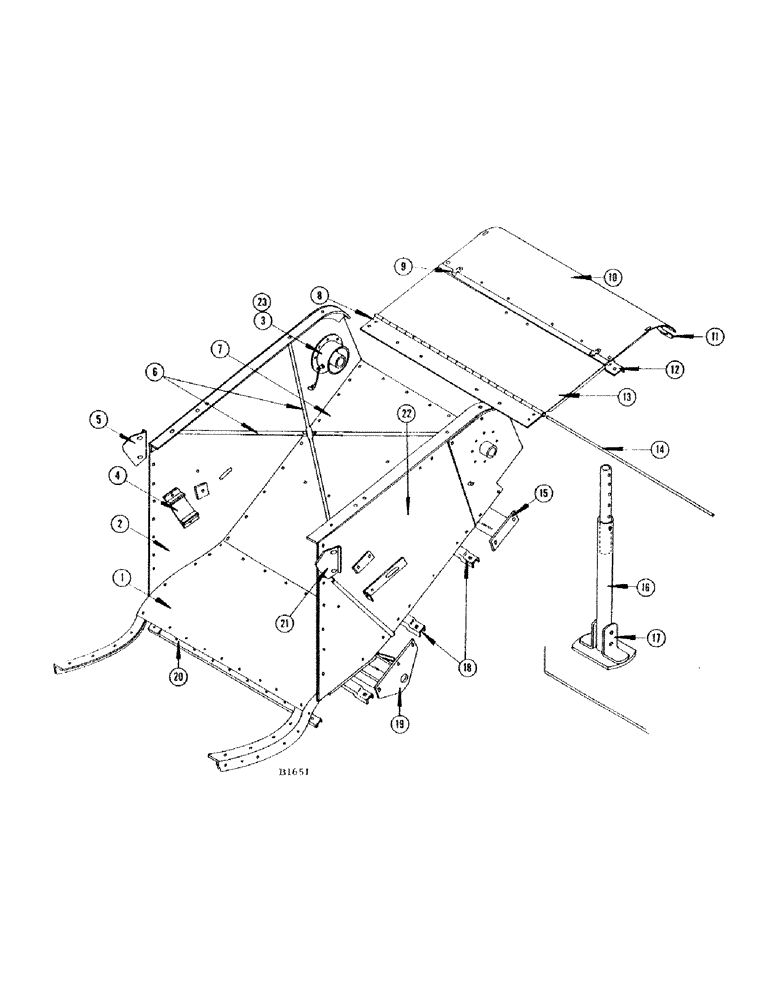

Запчасти Case IH 660 (068) - FEEDER SPOUT

1

F15730

FLOOR - lower

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)

8шт.

BOLT - 1/4" x 1/2" rhd. sq. nk. (12-48) nut (25-104)

6шт.

2

F84278

SIDE SHEET - R.H. (Before #8334601)

1шт.

3

F83069

HUB - pivot plate

1шт.

F15709

BUSHING - see upper feed rake shaft illustration

2шт.

46-512

RIVET - 1/4" x 3/4" ctsk. hd.

7шт.

O3048CK

X

UNION - grease line (See upper feed rake illustration)

1шт.

O3049CK

ELBOW - grease line (See upper feed rake shaft illustration)

1шт.

F91921

SIDE SHEET - R.H. (#8334601 to #8357001) Includes ref. 23, rivets, union and elbow

1шт.

F92649

SIDE SHEET - R.H. (#8357001 and after) Includes ref. 23, rivets, union and elbow

1шт.

4

F82074

BRACKET

SUPPORT - lower, feed rake

2шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116) L.W. (92-6)

4шт.

5

F16842

SHIELD - dust, R.H.

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

1шт.

6

F16822

BRACE - cross

2шт.

BOLT - 1/2" x 1-3/4" N.F. hex. (14-828) nut (25-118) L.W. (92-8)

2шт.

7

F15737

FLOOR - upper

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)

10шт.

8

F16851

HINGE STRIP - door

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)

6шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115) L.W. (92-5)

2шт.

9

F86525

CLIP

- spring, door

2шт.

SCREW - #10 x 1/2" N.C. mach. (173-97) L.W. (92-3)

2шт.

10

F15717

SHEET - top

1шт.

BOLT - 1/4" x 1/2" rhd. sq. nk. (11-48) nut (25-104) L.W. (92-4)

4шт.

11

F16826

ANGLE - top rear

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104) L.W. (92-4)

2шт.

12

F16832

ANGLE - reinforcement

1шт.

13

F80727

DOOR

1шт.

HANDLE - Stanley #479 (228-3)

1шт.

RIVET - 3/16" x 5/16" W.B. hd. (49-35)

2шт.

14

F15764

ROD - hinge, feeder door

1шт.

15

F80718

CHANNEL - cross

1шт.

16

F18498

PIPE - header support stand

1шт.

17

F81722

BASE - header stand

1шт.

18

F15738

REINFORCEMENT - feeder spout floors

3шт.

19

F92651

CHANNEL

- header, torque tube lower cross (Replaces F82503 when stocks are exhausted)

1шт.

F82503

CHANNEL

- header, torque tube lower cross (Replaced by F92651 when stocks are exhausted)

1шт.

20

F17871

REINFORCEMENT - lower feeder spout floor

1шт.

21

F16843

SHIELD - dust, L.H.

1шт.

22

F84275

SIDE SHEET - L.H. (Includes ref. 3, rivets, union and elbow) (Before #8334601)

1шт.

F91919

SIDE SHEET - L.H. (Includes ref. 23, rivets, union and elbow), Serial Range: #8334601-#8357001

1шт.

F92640

SIDE SHEET - L.H. (Includes ref. 23, rivets, union and elbow) #8357001 and after

1шт.

23

F91875

HUB - pivot plate

1шт.

10545K

BUSHING

- see upper feed rake illustration

2шт.

F83325

SHELL - 10 ft. header, repair

1шт.

F83321

SHELL - 13 ft. header, repair

1шт.

F83435

SHELL - 14 ft. header, repair

1шт.
