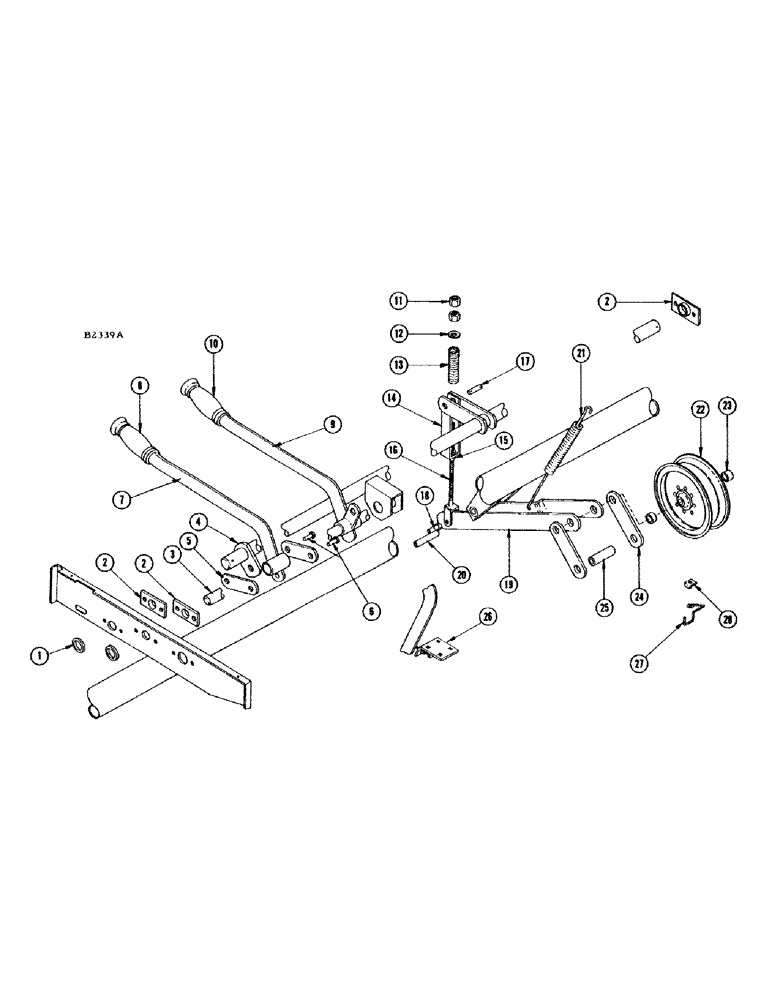

Запчасти Case IH 660 (066) - HEADER DRIVE THROWOUT

1

O906B

WASHER

- pivot

3шт.

2

F17298

BRACKET - bearing

3шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-24 x 5/8", G5, Full Thd

6шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

6шт.

92-5

LOCK WASHER,5/16"

6шт.

3

F17303

SHAFT - lever

1шт.

4

F84364

SHAFT - header throwout

1шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

2шт.

5

F17307

LINK - connecting

2шт.

6

B18213

PIN - connecting link

2шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

7

F84362

LEVER - header throwout

1шт.

8

F13012

SCREW

GRIP - lever, header throwout

1шт.

9

F84363

LEVER - combine control (Ref: See page 118)

1шт.

10

F13011

SCREW

GRIP - lever, combine control

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

2шт.

11

25-205

NUT - 5/16" N.C. hex.

2шт.

12

O58BL

WASHER

1шт.

13

O1826CH

SPRING

1шт.

14

F22356

CLEVIS - (Replaces F19376 when exhausted)

1шт.

F19376

CLEVIS - (Replaced by F22356 and F19583 when exh.)

1шт.

15

F19583

BUSHING - for F22356

1шт.

16

F82793

LINK - throwout

1шт.

17

70137

PIN

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

18

O1235HT

PIN

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

19

F81676

ARM - tightener, header belt

1шт.

20

F17356

SPACER - pivot

1шт.

14-548

SCREW,Hex, 5/16" - 24 x 3", Gr 5

BOLT - 5/16" x 3" N.F. hex.

1шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

92-5

LOCK WASHER,5/16"

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

21

O5646HT

SPRING - tightener

1шт.

132-91

COTTER PIN,3/16" x 1"

PIN - cotter 7/16" x 1"

1шт.

22

F80073

PULLEY ASSY.

SHEAVE - tightener, header drive belt

1шт.

23

F17354

SPACER

2шт.

14-1056

BOLT,Hex, 5/8" - 18 x 3-1/2", Gr 5

- 5/8" x 3-1/2" N.F. hex.

1шт.

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

24

F17355

BOLT

STRAP - retainer, header belt

2шт.

25

F20190

SPACER,1/4" Pipe x 2 1/2"

- retainer strap

1шт.

14-552

BOLT,Hex, 5/16" - 24 x 3-1/4", Gr 5

- 5/16" x 3-1/4" N.F. hex.

1шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

92-5

LOCK WASHER,5/16"

1шт.

26

F21560

STOP - over center, header lever

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

2шт.

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. hex. jam

2шт.

F22398

BELT

Header Drive, Replaces F17460 When Stocks are Exhausted

1шт.

F17460

BELT

- header drive (Replaced by F22398 when exh.)

1шт.

27

F18517

GUIDE - belt

1шт.

28

F18518

CLIP - guide

1шт.

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.
