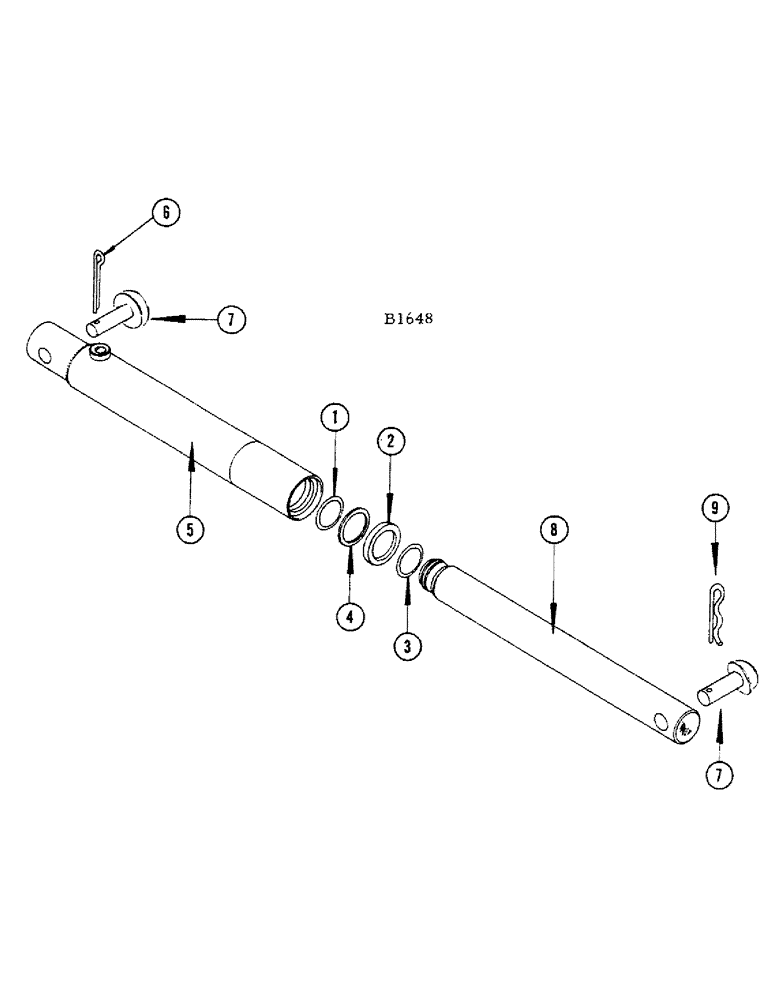

Запчасти Case IH 660 (064) - HEADER LIFT CYLINDER

F82009

CYLINDER - header lift, complete

1шт.

F86295

CYLINDER

KIT - repair

1шт.

1

F18075

"O" RING - (3/16" x 2-1/4" I.D.)

1шт.

2

F18073

WIPER

SEAL - rod

1шт.

3

F18076

RING, LOCKING

RING - lock

1шт.

4

F18074

WASHER

- (3/16" x 2-1/4") backup

1шт.

5

F82094

BARREL

1шт.

6

132-152

PIN

- (1/4" x 1-3/4" cotter) for F17830 pin of barrel

1шт.

7

F17830

PIN - rod and barrel

2шт.

8

F18077

ROD - piston

1шт.

9

T25682

SPLIT PIN

COTTER - hair pin, for F17830 pin of rod

1шт.
