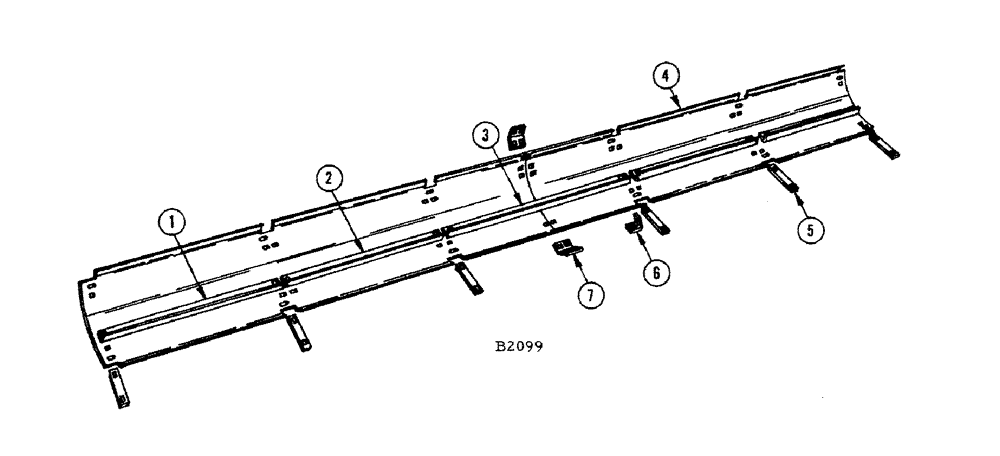

Запчасти Case IH 660 (062) - HEADER SKID ATTACHMENT

1

F19994

REINFORCEMENT - outer, skid plate (13 ft. header)

2шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) nut (129-103) and L.W. (192-21)

4шт.

F20063

REINFORCEMENT - outer, skid plate (14 ft. header)

2шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) nut (129-103) and L.W. (192-21)

4шт.

2

F19993

REINFORCEMENT - inner, skid plate

2шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) nut (129-103) and L.W. (192-21)

4шт.

3

F19992

PACKAGE

REINFORCEMENT - center, skid plate

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) nut (129-103) and L.W. (192-21)

4шт.

4

F19995

PLATE - header skid (13 ft. header)

2шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) L.W. (192-21)

6шт.

F19998

PLATE - header skid (14 ft. header)

2шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) L.W. (192-21)

6шт.

5

F19991

CLIP - front, skid plate

6шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) nut (129-103) and L.W. (192-21)

12шт.

6

F83117

BRACKET - rear

6шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122) and L.W. (192-20)

2шт.

BOLT - 5/16" x 7/8" N.F. hex. (114-101) nut (129-122) and L.W. (192-20)

3шт.

BOLT - 5/16" x 1" N.F. hex. (114-104) nut (129-122) and L.W. (192-20)

1шт.

7

F19989

SPLICE - skid plate

2шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) nut (129-103) and L.W. (192-21)

8шт.
