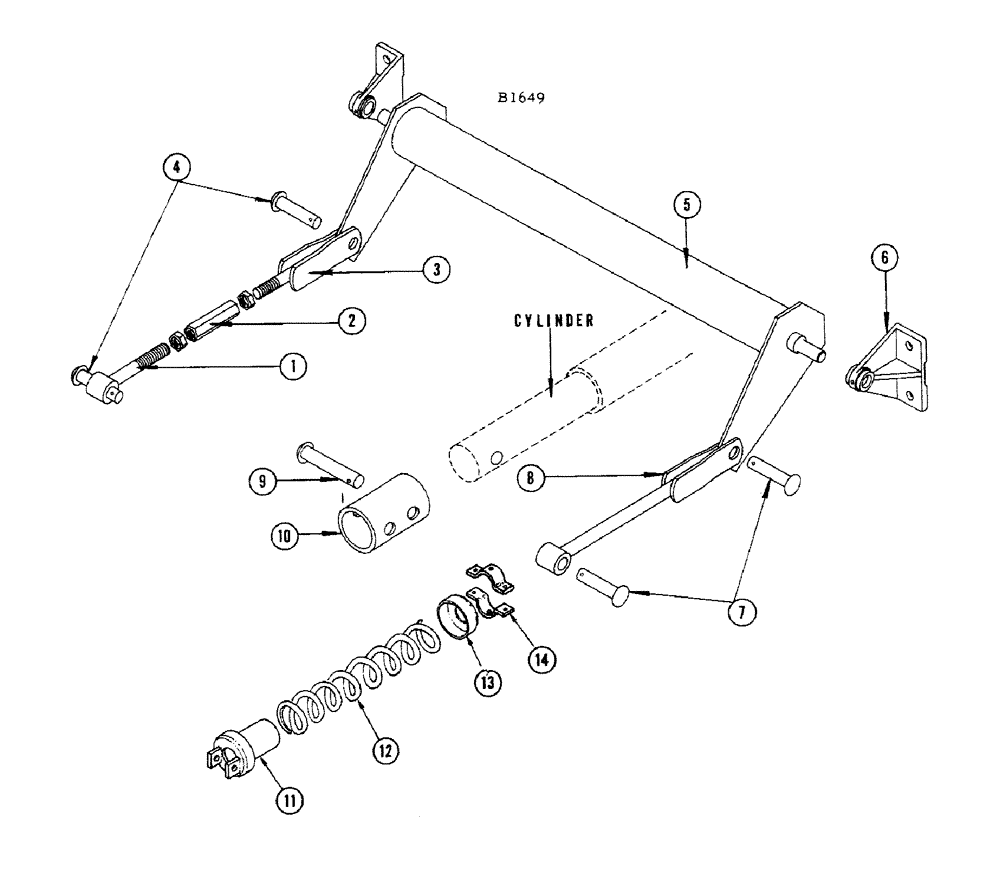

Запчасти Case IH 660 (062[A]) - HEADER SUPPORT TORQUE TUBE

1

F81991

LINK - front R.H. (L.H. thrd.)

1шт.

NUT - 7/8" N.F. jam L.H. thrd. (129-369)

1шт.

2

F17790

TURNBUCKLE - torque tube link, R.H. side

1шт.

3

F81990

LINK - torque tube, rear R.H. (R.H. thrd.)

1шт.

NUT - 7/8" N.F. jam R.H. thrd. (25-1514)

1шт.

4

F17254

PIN - R.H. torque tube link

2шт.

PIN - cotter 1/4" x 1-3/4" (132-152)

2шт.

5

F82852

TUBE - torque, header support

1шт.

6

F1487

BRACKET - mounting

2шт.

FITTING - grease 1/4" str. (219-8)

2шт.

BOLT - 3/8" x 1-1/2" N.F. hex. (114-203) nut (129-123) and L.W. (192-21)

4шт.

7

F60945

PIN - L.H. torque tube link

2шт.

PIN - cotter 1/4" x 1-3/4" (132-152)

2шт.

8

F81989

LINK - torque tube, L.H.

1шт.

HEADER LIFT EXTENSION ATTACHMENT

1шт.

9

F17830

PIN - for F82909 extension, header lift attachment

1шт.

PIN - cotter 1/4" x 1-3/4" (132-152), header lift extension attachment

1шт.

10

F82909

LINK - (7-1/2") extension (For transport only), header lift attachment

1шт.

HEADER LIFT SPRING ASSIST

1шт.

11

F94093

SPRING - retainer, header lift assist

1шт.

12

F9931

SPRING, header lift assist

1шт.

13

F53345

CUP - spring retainer, header lift assist

1шт.

14

F53463

CLAMP - spring retainer, header lift assist

2шт.

114-406

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5, Full Thd

Header lift spring assist Hex, 1/2"-20 x 1 1/2", G5, Full Thd

2шт.

129-125

NUT,1/2"-20, G5

and L.W. (192-23), Header lift spring assist 1/2"-20, G5

2шт.
