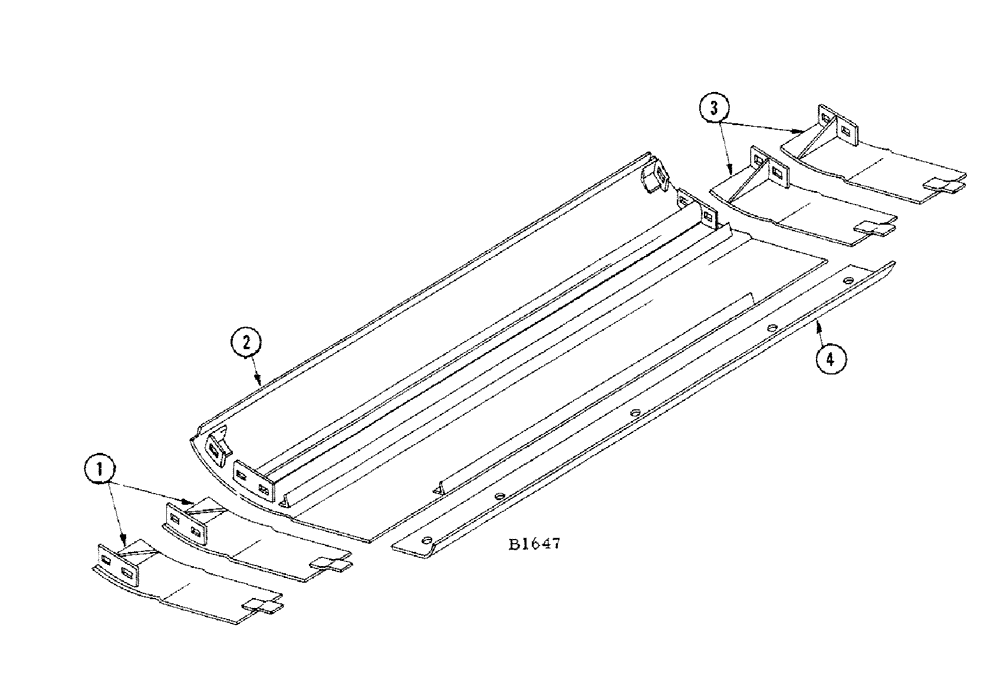

Запчасти Case IH 660 (060[A]) - HEADER FLOTATION SHOE ATTACHMENT

1

F81864

SHOE - R.H. (1 - 10 ft. and 2 - 13 ft. and 14 ft.)

2шт.

BOLT - 5/16" x 7/8" N.F. hex. (114-101) nut (129-122)

6шт.

WASHER - 5/16" flat (195-103) L.W. (192-20)

6шт.

2

F81861

GUARD - header shoe

1шт.

BOLT - 5/16" x 7/8" N.C. hex. (113-113) L.W. (192-20)

4шт.

3

F81863

SHOE - L.H. (1 - 10 ft. and 2 - 13 ft. and 14 ft.)

2шт.

BOLT - 5/16" x 7/8" N.C. hex. (113-113) L.W. (192-20)

2шт.

BOLT - 5/16" x 7/8" N.F. hex. (114-101) nut (129-122)

2шт.

WASHER - 5/16" flat (195-103) L.W. (192-20)

2шт.

4

F17637

RETAINER - guard

1шт.

SCREW - 5/16" x 3/4" N.C. mach. (171-221) nut (129-102)

3шт.

SCREW - 5/16" x 7/8" N.F. mach. (171-220) nut (129-102)

2шт.
