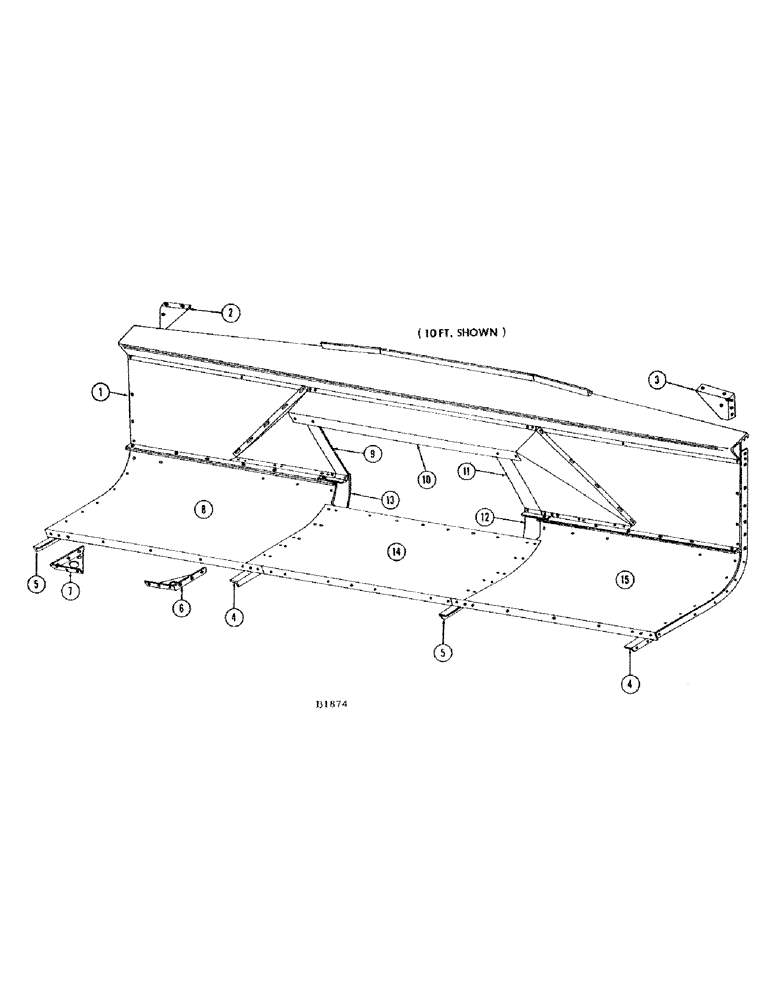

Запчасти Case IH 660 (056) - AUGER TROUGH

1

F83247

SHEET - header top and back (10 ft.)

1шт.

BOLT - 1/4" x 1/2" rhd. sq. nk. (11-48) nut (25-104) and L.W. (92-4)

6шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) nut (25-114) L.W. (92-4)

4шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116) L.W. (92-6)

2шт.

1

F83248

SHEET - header top and back (13 ft.)

1шт.

BOLT - 1/4" x 1/2" rhd. sq. nk. (11-48) nut (25-104) and L.W. (92-4)

6шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) nut (25-114) L.W. (92-4)

4шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116) L.W. (92-6)

2шт.

1

F83062

SHEET - header top and back (14 ft.)

1шт.

BOLT - 1/4" x 1/2" rhd. sq. nk. (12-48) nut (25-104) and L.W. (92-4)

3шт.

BOLT - 5/16" x 1-3/4" N.F. hex. (14-828) nut (25-118) L.W. (92-8)

2шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115) L.W. (92-5)

1шт.

BOLT - 3/8" x 3/4" rd. shank sq. nk. (12-612) nut (25-106) and L.W. (92-6)

1шт.

2

F17541

GUSSET - reel support arm, R.H.

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104) L.W. (92-4)

1шт.

BOLT - 5/16" x 3/4" rd. shank sq. nk. (12-512) nut (25-105) and L.W. (92-5)

2шт.

3

F17540

GUSSET - reel support arm, L.H.

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104) L.W. (92-4)

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (12-512) nut (25-105) L.W. (92-4)

2шт.

4

F15710

RAIL - hook, 2 - 10 ft., 3 - 13 ft., and 14 ft. headers

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104) and L.W. (92-4)

1шт.

BOLT - 3/8" x 5/8" N.F. hex. (14-610) nut (25-116) L.W. (92-6)

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115) L.W. (92-5)

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) nut (25-106) and L.W. (92-6)

1шт.

5

F15719

RAIL - hook, 2 - 10 ft., 3 - 13 ft., and 14 ft. headers

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104) and L.W. (92-4)

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105) and L.W. (92-5)

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115) L.W. (92-5)

1шт.

BOLT - 3/8" x 3/8" rhd. sq. nk. (11-612) nut (25-106) and L.W. (92-6)

1шт.

6

F15766

PLATE - L.H., 3 - 10 ft., 4 - 13 ft., and 14 ft. headers

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115) L.W. (92-5)

1шт.

BOLT - 5/16" x 1" rhd. sq. nk. (11-516) nut (25-105) and L.W. (92-5)

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116) L.W. (92-6)

1шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115) L.W. (92-5)

1шт.

7

F15765

PLATE - R.H., 3 - 10 ft., 4 - 13 ft., 14 ft. headers

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104) and L.W. (92-4)

1шт.

BOLT - 3/8" x 5/8" N.F. hex. (14-610) nut (25-116) L.W. (92-6)

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115) L.W. (92-5)

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) nut (25-106) and L.W. (92-6)

1шт.

8

F19671

FLOOR - R.H., auger trough (10 ft.)

1шт.

SCREW - 1/4" x 3/4" N.C. fl. hd. soc. cap (164-31) nut (25-114)

2шт.

WASHER - 1/4" flat (95-4) L.W. (92-4)

2шт.

BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514) nut (25-105)

3шт.

8

F19677

FLOOR - R.H., auger trough (13 ft.)

1шт.

SCREW - 1/4" x 3/4" N.F. fl. hd. soc. cap (164-111) nut (25-114)

4шт.

WASHER - 1/4" flat (95-4) L.W. (92-4)

4шт.

BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514) nut (25-105)

5шт.

8

F19932

FLANGE BOLT

FLOOR - R.H., auger trough (14 ft.)

1шт.

SCREW - 1/4" x 3/4" N.C. fl. hd. soc. cap (164-31) nut (25-114)

4шт.

WASHER - 1/4" flat (95-4) L.W. (92-4)

4шт.

9

F20237

SHIELD - upper, R.H.

1шт.

SCREW - 1/4" x 5/8" N.C. mach. (173-207) nut (129-101)

3шт.

WASHER - 1/4" flat (195-518) L.W. (192-19)

3шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (114-201) nut (129-125)

1шт.

WASHER - 3/8" flat (195-525) L.W. (192-21)

1шт.

10

F81958

SHIELD - feed rake

1шт.

SCREW - 1/4" x 1/2" N.C. rhd. mach. (75-48) nut (25-104)

10шт.

SCREW - 1/4" x 5/8" N.C. rhd. mach. (75-410) nut (25-104)

8шт.

WASHER - 1/4" flat (95-4) L.W. (92-4)

16шт.

11

F20236

SHIELD - upper, L.H.

1шт.

SCREW - 1/4" x 5/8" N.C. mach. (173-207) nut (129-101)

3шт.

WASHER - 1/4" flat (195-518) L.W. (192-19)

3шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (114-201) nut (129-123)

1шт.

WASHER - 3/8" flat (195-525) L.W. (192-21)

1шт.

12

F20234

SHIELD - lower, L.H.

1шт.

SCREW - 1/4" x 3/4" N.C. truss hd. mach. (175-403) and nut (129-101)

1шт.

BOLT - 5/16" x 1" rhd. sq. nk. (111-203) nut (129-102)

2шт.

BOLT - 1/4" x 1" rhd. sq. nk. (111-111) nut (129-101)

1шт.

WASHER - 1/4" flat (195-518) L.W. (192-19)

1шт.

WASHER - 5/16" flat (195-521) L.W. (192-20)

2шт.

13

F20235

SHIELD - lower, R.H.

1шт.

SCREW - 1/4" x 3/4" N.C. truss hd. mach. (175-403) and nut (129-101)

1шт.

BOLT - 5/16" x 1" N.C. rhd. sq. nk. (111-203) nut (129-102)

2шт.

BOLT - 1/4" x 1" N.C. rhd. sq. nk. (111-111) nut (129-101)

1шт.

WASHER - 1/4" flat (195-518) L.W. (192-19)

1шт.

WASHER - 5/16" flat (195-521) L.W. (192-20)

2шт.

14

F19670

FLOOR - center, auger trough

1шт.

SCREW - 1/4" x 3/4" N.C. fl. hd. soc. cap (164-31) nut (25-104)

8шт.

WASHER - 1/4" flat (95-4) L.W. (92-4)

8шт.

BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514) nut (25-105)

8шт.

15

F19672

FLOOR - L.H., auger trough (10 ft.)

1шт.

SCREW - 1/4" x 3/4" N.C. fl. hd. soc. cap (164-31) nut (25-114)

2шт.

WASHER - 1/4" flat (95-4) L.W. (92-4)

2шт.

BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514) nut (25-105)

3шт.

15

F19678

FLOOR - L.H., auger trough (13 ft.)

1шт.

SCREW - 1/4" x 3/4" N.F. fl. hd. soc. cap (164-111) nut (25-114)

4шт.

WASHER - 1/4" flat (95-4) L.W. (92-4)

4шт.

BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514) nut (25-105)

5шт.

15

F19933

FLANGE BOLT

FLOOR - L.H., auger trough (14 ft.)

1шт.

SCREW - 1/4" x 3/4" N.C. fl. hd. soc. cap (164-31) nut (25-114)

4шт.

WASHER - 1/4" flat (95-4) L.W. (92-4)

4шт.
