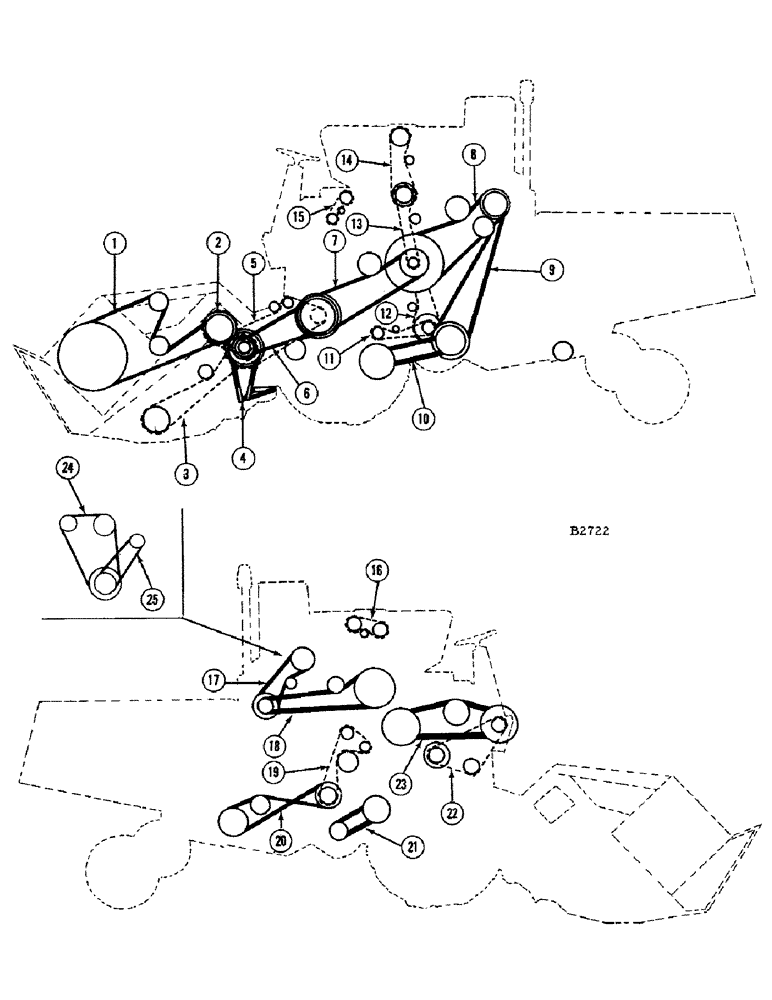

Запчасти Case IH 660 (005A) - BELT AND CHAIN DRIVE REFERENCE

1

F16633

BELT

Final Reel Drive

1шт.

1

O4402CS

V-BELT 170.00" L, Reel drive (Fixed sheave reel drive - special) 170.00" L

1шт.

2

F17456

X

CHAIN - reel jackshaft drive

1шт.

2

F17924

X

CHAIN - reel jackshaft (Fixed sheave reel drive - special)

1шт.

3

F17450

X

CHAIN - header auger drive

1шт.

4

F16867

BELT

Sickle Drive, 10 Foot Header

1шт.

4

F9659

V-BELT

Sickle Drive, 13 Foot Header

1шт.

4

F19939

BELT

- sickle drive, 14 ft.

1шт.

5

F18828

X

CHAIN - header jackshaft drive

1шт.

6

F19498

V-BELT

Feeder Rake Drive

1шт.

7

F22398

BELT

Header Drive

1шт.

8

CASF20061

BELT

- beater drive

1шт.

9

F20033

BELT

Primary Variable Speed Traction Drive

1шт.

10

F20032

V-BELT

Secondary Variable Speed Traction Drive

1шт.

11

F16079

X

CHAIN - fan drive jackshaft

1шт.

12

F16228

X

CHAIN - rocker arm crankshaft drive

1шт.

13

N3412

X

CHAIN - grain elevator drive

1шт.

14

F84913

CHAIN - leveling auger and elevator drive (Grain combines)

1шт.

14

F84911

CHAIN - leveling auger and elevator drive (Used with 660 special grain bin)

1шт.

14

F84912

CHAIN - leveling auger and elevator drive (Used with 660 special standard grain bin)

1шт.

15

F7904

X

CHAIN - tailings elevator discharge auger drive

1шт.

16

N4843

X

CHAIN - grain bin elevator drive (Grain combines)

1шт.

16

F84828

X

CHAIN - grain bin elevator drive (660 special combine)

1шт.

17

F19581

BELT

- grain bin secondary jackshaft drive

1шт.

18

F17082

V-BELT

BELT - grain bin discharge auger drive (Grain combines)

1шт.

18

O2213BD

BELT - grain bin discharge auger drive (660 special combine)

1шт.

19

F16228

X

CHAIN - strawrack drive

1шт.

20

F16447

V-BELT

Tailings Auger Drive

1шт.

21

F16080

V-BELT

Fan Drive

1шт.

22

F18520

X

CHAIN - cylinder drive (Chain drive option)

1шт.

22

F22009

X

CHAIN - cylinder drive (Variable speed drive option)

1шт.

23

F21990

BELT

Cylinder Drive, Variable Speed Drive Option

1шт.

24

G46238

BELT,0.55" W x 17.78" L

Engine Fan Drive 0.55" W x 17.78" L

1шт.

25

G46195

V-BELT,0.40" W x 10.75" L

Governor Drive, Gas Engines Only 0.40" W x 10.75" L

1шт.
