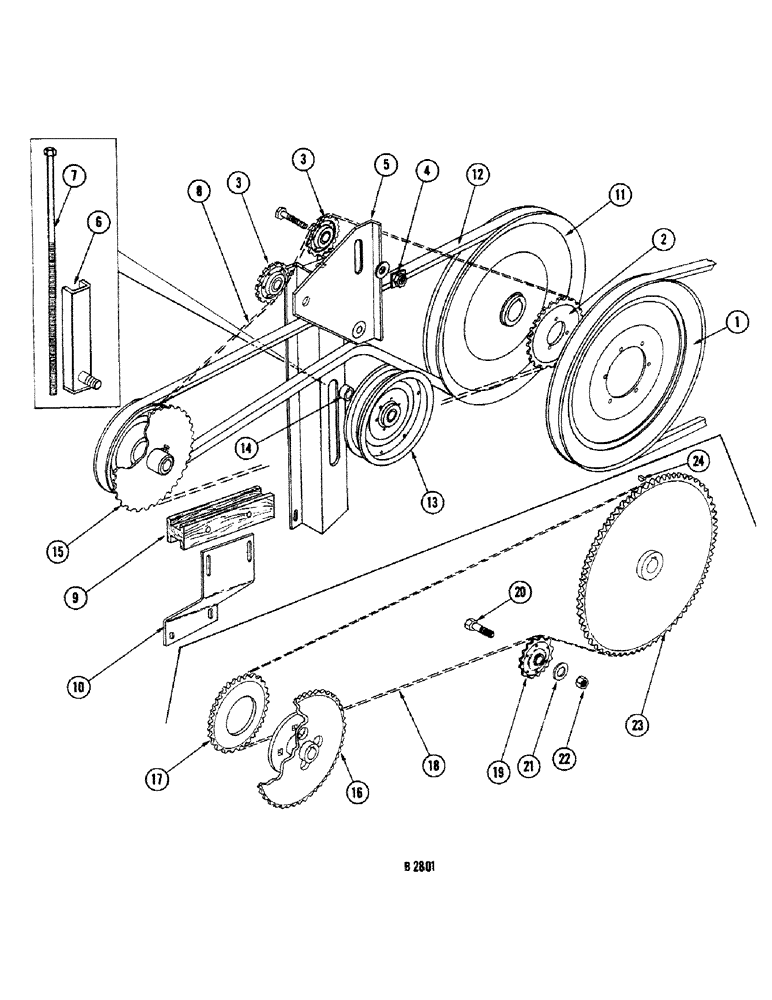

Запчасти Case IH 660 (053A) - TIGHTENER, HEADER DRIVE AND UPPER FEEDER RAKE SHAFT, NUMBER 8357001 AND AFTER

1

F81287

SHEAVE - header drive

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

6шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

6шт.

92-6

LOCK WASHER,3/8"

6шт.

2

F17454

SPROCKET - (30T) upper feed rake shaft drive

1шт.

F17959

SPROCKET - (24T) upper feed rake shaft drive (Special - slow speed header)

1шт.

14-640

BOLT,Hex, 3/8" - 24 x 2-1/2", Gr 5

- 3/8" x 2-1/2" N.F. hex.

3шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

3шт.

92-6

LOCK WASHER,3/8"

3шт.

3

F6078

SPROCKET ASSY.

SPROCKET - (17T) tightener, main header jackshaft chain

2шт.

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

Nut (25-1110) L.W. (92-6) Hex, 5/8"-18 x 2", G5

2шт.

195-41

WASHER,5/8"

- flat 5/8"

6шт.

4

F75313

LOCKNUT - (5/8" Gripco) for 1-(14-1032) bolt of F6078

1шт.

5

F82505

BRACKET - idler, header drive jackshaft chain

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

and Nut (25-115) Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

195-21

WASHER,5/16"

- flat and L.W. (92-5) 5/16"

4шт.

6

F82506

BRACKET - adjusting, tightener sheave or sprocket

1шт.

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - 5/8" N.F. hex. jam

1шт.

7

F18486

DRAW BOLT

1шт.

131-133

NUT,Ret, 3/8"-16

Tinnerman Ret, 3/8"-16

1шт.

8

F18828

X

CHAIN - drives main header drive jackshaft (NSS - see pg. 7)

1шт.

9

F4358

GUIDE - header drive jackshaft chain

1шт.

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

92-5

LOCK WASHER,5/16"

2шт.

195-21

WASHER,5/16"

- flat 5/16"

2шт.

10

F22934

SUPPORT - bracket, chain guide

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

92-5

LOCK WASHER,5/16"

2шт.

11

F81743

SHEAVE - inside, drives upper feed rake shaft (Grain combine) see ref. 23

1шт.

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

12

F19498

V-BELT

Drives Upper Feeder Rake Shaft, Grain Combine, See Ref. 18

1шт.

13

F6458

BEARING ASSY

SHEAVE - tightener, upper feed rake shaft belt (Grain combine) see ref. 19

1шт.

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

and nut (25-1110) Hex, 5/8"-18 x 2 1/4", G5

1шт.

195-41

WASHER,5/8"

- flat and L.W. (92-10) 5/8"

1шт.

14

F18827

SPACER - tightener sheave (Grain combine) see ref. 21

1шт.

15

F82903

SHEAVE AND SPROCKET - drives jackshaft and upper feed rake shaft (Grain combine)

1шт.

16

F94354

SPROCKET AND CLUTCH PLATE - drives jackshaft and upper feed rake shaft (Ed. Bean combine)

1шт.

17

F22930

SPROCKET - (31T) slip clutch (Ed. Bean combine)

1шт.

18

F22932

CHAIN - drives upper feed rake shaft (Ed. Bean combine) NSS - see page 7

1шт.

19

F6078

SPROCKET ASSY.

SPROCKET - (17T) tightener, upper feed rake shaft chain (Ed. Bean combine)

1шт.

20

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

1шт.

21

195-41

WASHER,5/8"

- flat, Tightener sprocket spacer 5/8"

1шт.

22

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - 5/8" N.F. hex. jam

1шт.

23

F94352

SPROCKET - (72T) inside (Ed. Bean combine)

1шт.

24

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.
