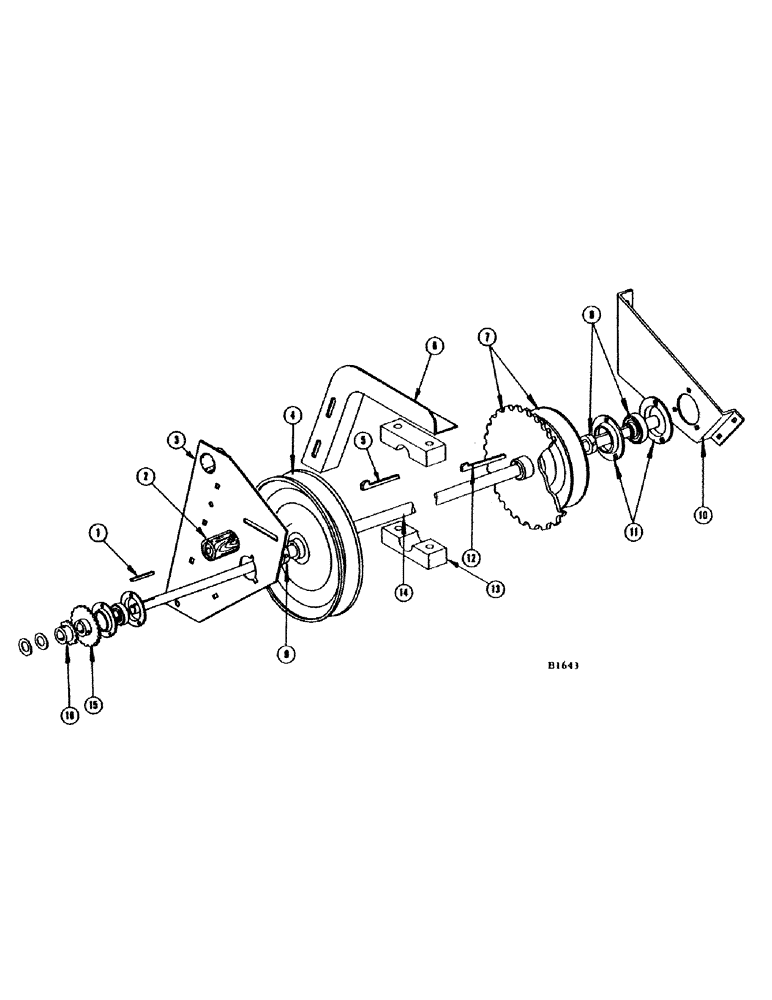

Запчасти Case IH 660 (052) - MAIN HEADER DRIVE JACKSHAFT, BEFORE NUMBER 8357001

1

O1106HT

KEY

1шт.

2

31621/2HT

BLOCK

IDLER - reel jackshaft drive

1шт.

11-552

BOLT

- 5/16" x 3-1/4" rhd. sq. nk. and nut (25-105)

1шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" flat and L.W. (92-5)

1шт.

3

F91934

BRACKET - L.H. outer pivot (Replaces F83333 when stocks are exhausted)

1шт.

F83333

BRACKET - L.H. outer pivot (Replaced by F91934 when stocks are exhausted)

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex., nut (25-114) L.W. (92-4)

1шт.

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

BOLT - 3/8" x 7/8" N.F. hex., nut (25-116) L.W. (92-6)

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex., nut (25-116) L.W. (92-6)

1шт.

4

F81281

SHEAVE - sickle drive

1шт.

5

F17863

JEY - gib

1шт.

6

F20993

BRACKET - support, center bearing (13 and 14 ft. headers)

1шт.

11-417

BOLT - 1/4" x 3/4" rhd. sq. nk. and nut (25-104)

2шт.

195-18

WASHER,1/4"

- flat and L.W. (92-4) 1/4"

2шт.

7

F82903

SHEAVE AND SPROCKET - drives jackshaft and upper feed rake shaft

1шт.

8

3074CSA

BALL BEARING

- jackshaft

2шт.

9

F62108

COLLAR

1шт.

10

F15750

BRACKET - inner support

1шт.

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4" x 3/4" rhd. sq. nk., nut (25-104) L.W. (92-4)

1шт.

12-410

BOLT - 1/4" x 5/8" rhd. short sq. nk., nut (25-104) L.W. (92-4)

2шт.

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

- 1/4" x 1" N.F. hex. nut (25-114) L.W. 92-4)

1шт.

75-416

SCREW,Rd, 1/4" - 20 x 1"

- 1/4" x 1" N.C. mach., nut (25-104) L.W. (92-4)

1шт.

11

B18282

FLANGE

4шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

6шт.

12

F17864

KEY - gib

1шт.

13

F4348

BEARING - center (13 and 14 ft. headers)

2шт.

11-652

BOLT - 3/8" x 3-1/4" rhd. sq. nk. and nut (25-106) Short NK, 3/8"-16 x 3 1/4", G2

2шт.

195-25

WASHER,3/8"

- flat and L.W. (92-6) 3/8"

2шт.

14

F16865

JACKSHAFT - main header drive (10 ft.)

1шт.

F19577

JACKSHAFT - main header drive (13 ft.)

1шт.

F19938

JACKSHAFT - main header drive (14 ft.)

1шт.

15

F81741

SPROCKET - (22T) auger drive (170 RPM)

1шт.

F81747

SPROCKET - (18T) auger drive (134 RPM)

1шт.

F81819

SPROCKET - (26T) auger drive (197 RPM)

1шт.

16

F82850

DRIVEN SPROCKET

SPROCKET - (22T) reel drive (28 - 45 RPM)

1шт.

F82898

SPROCKET ASSY.

SPROCKET - (15T) reel drive (19 - 31 RPM)

1шт.

F82851

SPROCKET ASSY.

SPROCKET - (27T) pickup drive

1шт.

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.
