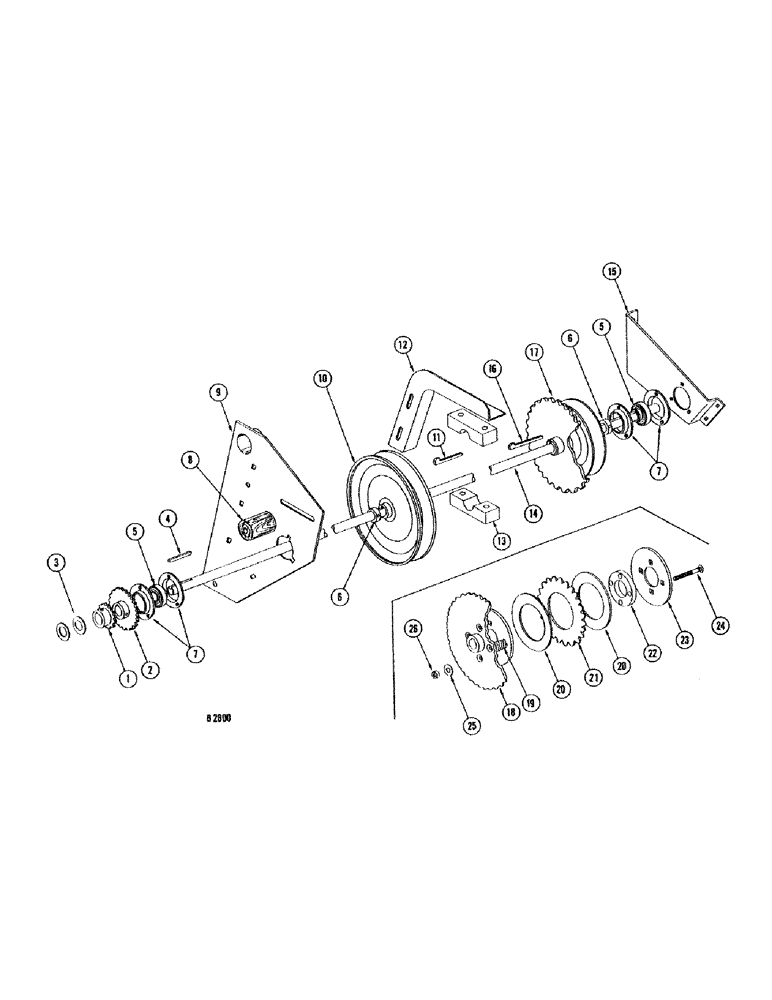

Запчасти Case IH 660 (051A) - MAIN HEADER DRIVE JACKSHAFT, NUMBER 8357001 AND AFTER

1

F92664

DRIVEN SPROCKET

SPROCKET - (22T) reel drive (28 - 45 RPM) (Exh. then use F89318)

1шт.

F89318

SPROCKET ASSY.

SPROCKET - (22T) reel drive (Replaces F92664 when exh.)

1шт.

F92661

SPROCKET - (15T) reel drive (19 - 31 RPM) (Exh. stock then use F89317

1шт.

F89317

SPROCKET - (15T) reel drive (Replaces F92661 when exh.)

1шт.

F82851

SPROCKET ASSY.

SPROCKET - (27T) pick-up drive (Exh. then use F89316)

1шт.

F89316

SPROCKET ASSY.

SPROCKET - (27T) pick-up drive (Replaces F82851 when exh.)

1шт.

2

F81741

SPROCKET - (22T) auger drive (170 RPM)

1шт.

F81747

SPROCKET - (18T) auger drive (134 RPM)

1шт.

F81819

SPROCKET - (26T) auger drive (197 RPM)

1шт.

3

F62073

WASHER

- jackshaft

2шт.

4

O5528N

KEY

1шт.

5

3074CSA

BALL BEARING

- jackshaft

2шт.

6

F62108

COLLAR

1шт.

7

B18282

FLANGE

4шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

6шт.

8

31621/2HT

BLOCK

IDLER - reel jackshaft drive

1шт.

11-552

BOLT

- 5/16" x 3-1/4" rhd. sq. nk. and nut (25-105)

1шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" flat and L.W. (92-5)

1шт.

9

F91934

BRACKET - L.H. outer pivot

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex., nut (25-114) L.W. (92-4)

1шт.

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

BOLT - 3/8" x 7/8" N.F. hex., nut (25-116) L.W. (92-6)

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex., nut (25-116) L.W. (92-6)

1шт.

10

F81281

SHEAVE - sickle drive

1шт.

11

F17863

KEY - gib

1шт.

12

F20993

BRACKET - support, center bearing (13 and 14 ft. headers)

1шт.

11-417

BOLT - 1/4" x 3/4" rhd. sq. nk. and nut (25-104)

2шт.

195-18

WASHER,1/4"

- flat and L.W. (92-4) 1/4"

2шт.

13

F4348

BEARING - center (13 and 14 ft. headers)

2шт.

11-652

BOLT - 3/8" x 3-1/4" rhd. sq. nk. and nut (25-106) Short NK, 3/8"-16 x 3 1/4", G2

2шт.

195-25

WASHER,3/8"

- flat and L.W. (92-6) 3/8"

2шт.

14

F22661

PLOW BOLT

JACKSHAFT - main header drive (10 ft.)

1шт.

F22662

PLOW BOLT

JACKSHAFT - main header drive (13 ft.)

1шт.

F22663

PLOW BOLT

JACKSHAFT - main header drive (14 ft.)

1шт.

15

F15750

BRACKET - inner support

1шт.

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4" x 3/4" rhd. sq. nk., nut (25-104) L.W. (92-4)

1шт.

12-410

BOLT - 1/4" x 5/8" rhd. short sq. nk., nut (25-104) L.W. (92-4)

2шт.

14-416

SCREW,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1, G5, Full Thd, Nut (25-114) L.W. (92-4)

1шт.

75-416

SCREW,Rd, 1/4" - 20 x 1"

- 1/4" x 1" N.C. mach., nut (25-104) L.W. (92-4)

1шт.

16

F17864

KEY - gib

1шт.

17

F82903

SHEAVE AND SPROCKET - drives jackshaft and upper feed rake shaft (Grain combine)

1шт.

18

F94354

SPROCKET AND CLUTCH PLATE - drives jackshaft and upper feed rake shaft (Ed. Bean combine)

1шт.

19

F60482

SPRING

- slip clutch (Ed. Bean combine)

4шт.

20

F22929

DISC - clutch (Ed. Bean combine)

2шт.

21

F22930

SPROCKET - (31T) slip clutch (Ed. Bean combine)

1шт.

22

F22931

SPACER - clutch disc and sprocket (Ed. Bean combine)

1шт.

23

F22927

PLATE - clutch (Ed. Bean combine)

1шт.

24

11-648

BOLT

- 3/8 " x 3" rhd. sq. nk.

4шт.

25

O8028AB

WASHER

4шт.

26

131-6

LOCK NUT,3/8"-16, GC

LOCKNUT - 3/8" N.C. hex.

4шт.

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.
