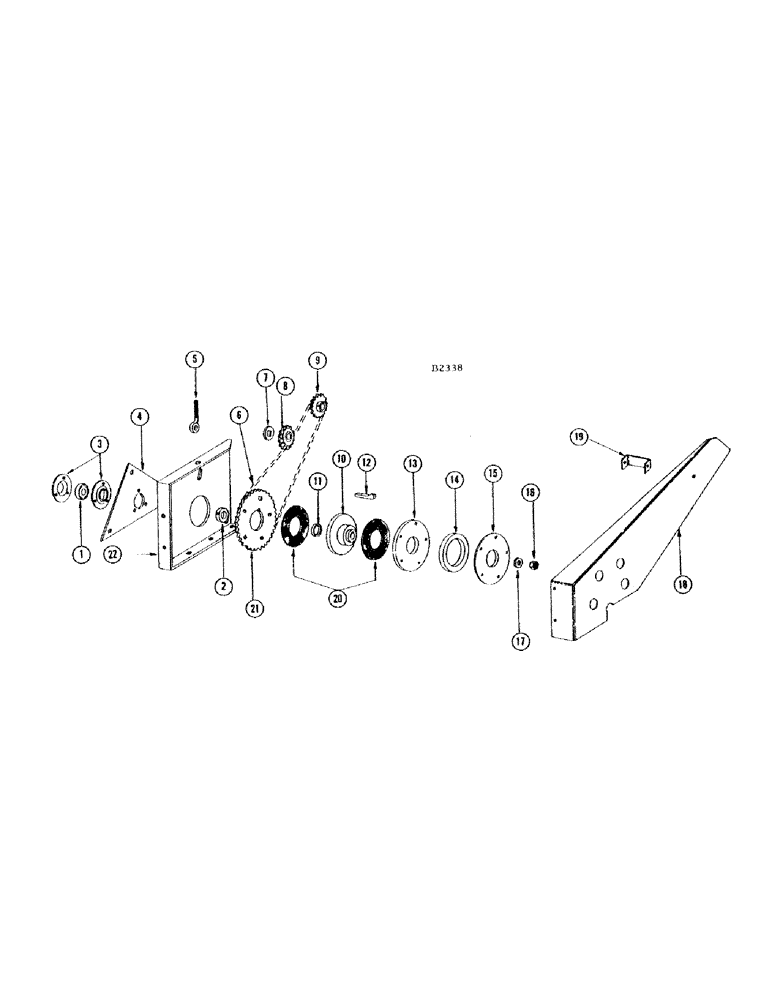

Запчасти Case IH 660 (050) - HEADER AUGER SLIP CLUTCH DRIVE
№
Артикул
Название
Примечание
Количество
1
2419CHA
SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W
BEARING - auger shaft, L.H. end
1шт.
2
F62226
COLLAR
1шт.
3
F62225
FLANGE
2шт.
BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) nut (25-106)
3шт.
4
F15804
BRACKET - auger adjustment, L.H. end
1шт.
BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)
2шт.
WASHER - 5/16" flat (195-21) L.W. (92-5)
2шт.
5
F17753
EYEBOLT - auger adjustment
1шт.
BOLT - 5/16" x 1" rhd. sq. nk. (11-516) nut (25-105)
1шт.
6
F17450
X
CHAIN - header auger drive (NSS - see page 7)
1шт.
7
O2287CS
WASHER - for carr. bolt (11-1040) of F6078 idler
2шт.
8
F6078
SPROCKET ASSY.
SPROCKET - (17T) tightener, header auger drive chain
1шт.
BOLT - 5/8" x 2-1/4" rhd. sq. nk. (11-1040) nut (25-1010)
1шт.
WASHER - 5/8" flat (95-10)
4шт.
9
F81741
SPROCKET - (22T) header auger drive (170 RPM)
1шт.
PIN - cotter 1/8" x 2" (132-56)
1шт.
F81747
SPROCKET - (18T) auger drive (134 RPM)
1шт.
PIN - cotter 1/8" x 2" (132-56)
1шт.
F81819
SPROCKET - (26T) header auger drive (197 RPM)
1шт.
PIN - cotter 1/8" x 2" (132-56)
1шт.
10
F82072
HUB - auger drive
1шт.
11
F17923
BUSHING
1шт.
12
O6267HT
KEY
1шт.
13
F17495
PLATE - thrust
1шт.
14
F17496
SPRING - rubber
1шт.
15
F22250
PLATE
- pressure (Replaces F17494 when stocks are exhausted)
1шт.
F17494
PLATE
- pressure (Replaced by F22250 when stocks are exhausted)
1шт.
16
131-37
LOCK NUT,3/4"-16
STOP NUT - (3/4" ESNA) for auger drive shaft
1шт.
17
95-12
WASHER,3/4"
FLAT WASHER - () for auger drive shaft 3/4"
1шт.
18
F84283
SHIELD - auger drive chain
1шт.
BOLT - 1/4" x 5/8" N.C. hex. (113-2) L.W. (192-19)
3шт.
19
F21390
BRACKET - support shield
1шт.
BOLT - 1/4" x 5/8" N.F. hex. (114-1) nut (129-121)
2шт.
WASHER - 1/4" flat (195-518) L.W. (192-19)
2шт.
20
F82061
FACING - slip clutch (Set of 2)
1шт.
21
F17493
SPROCKET - (45T) header auger drive, driven
1шт.
BOLT - 5/16" x 2" N.F. rhd. sq. nk. (111-218)
5шт.
NUT - 5/16" - 24 Flex Loc (131-575)
5шт.
22
F20268
BRACKET - auger support, L.H.
1шт.
BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115) L.W. (92-5)
2шт.
BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)
2шт.
WASHER - 5/16" flat (195-21) L.W. (92-5)
2шт.
Выбрано товаров: 42
