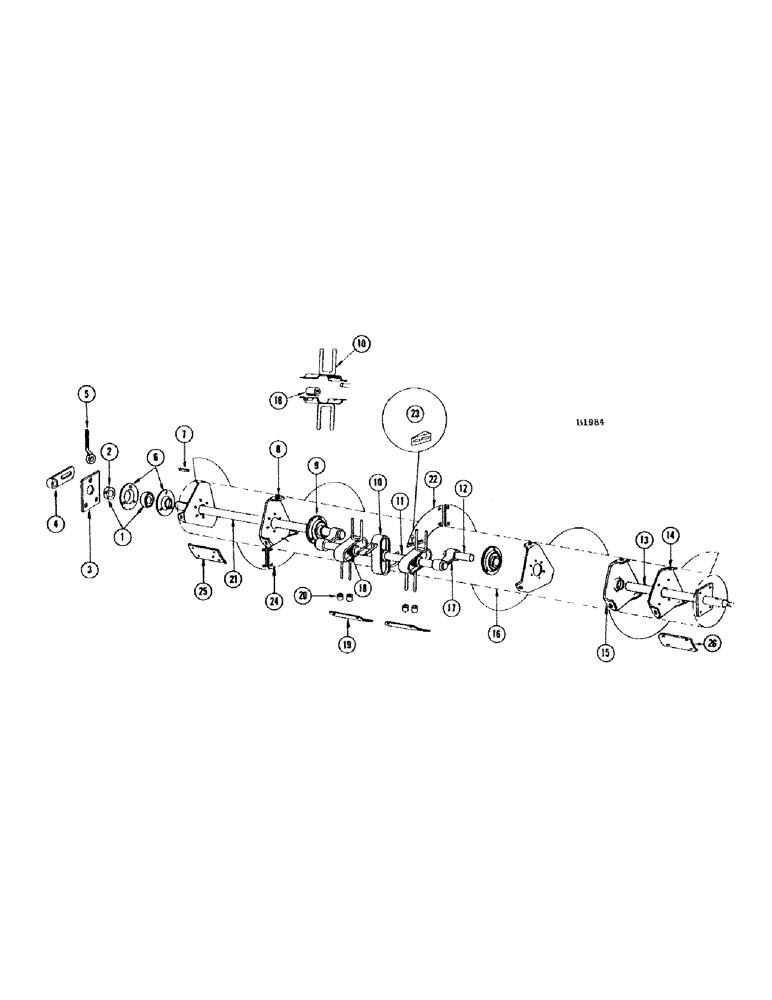

Запчасти Case IH 660 (046) - RETRACTABLE FINGER TYPE HEADER AUGER

1

F90306

BEARING ASSY

BEARING - auger shaft, R.H. end (10 and 13 ft. headers - 12 and 16 finger)

1шт.

1

2950CSA

HOUSING ASSY.

BEARING - auger shaft, R.H. end (14 ft. header - 12 and 16 finger)

1шт.

1

2950CSA

HOUSING ASSY.

BEARING - auger shaft, R.H. end (10 ft., 13 ft., and 14 ft. - 20 finger)

1шт.

2

O4233CS

COLLAR

1шт.

3

F15811

ADJUSTMENT - auger, R.H. end

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105) Short NK, 5/16"-18 x 3/4", G2

2шт.

195-21

WASHER,5/16"

- flat and L.W. (92-5) 5/16"

2шт.

4

F81959

ARM - finger control

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105) Short NK, 5/16"-18 x 3/4", G2

1шт.

195-21

WASHER,5/16"

- flat and L.W. (92-5) 5/16"

1шт.

5

F17753

EYEBOLT - auger adjustment

1шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, , and L.W. (92-5) Short NK, 5/16"-18 x 1", G2

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

5

B18282

FLANGE

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

3шт.

7

F62223

KEY

- arm

1шт.

8

O5114CS

BULK HEAD - auger tube

3шт.

9

N5077

FLANGED BEARING

BEARING - inner, auger shaft

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

6шт.

10

F83287

FINGER ASSEMBLY - 6 - 12 finger, 8 - 16 finger, and 10 - 20 finger

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

1шт.

11

F6281

SHAFT

- finger assembly, 12 finger

1шт.

F21183

SHAFT - finger assembly, 16 finger

1шт.

F10956

SHAFT - finger assembly, 20 finger

1шт.

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

- 5/16" x 2" N.F. hex., nut (25-115) L.W. (92-5)

1шт.

12

O4241CS

SHAFT - stub

1шт.

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

- 5/16" x 2" N.F. hex., nut (25-115) L.W. (92-5)

1шт.

13

F83176

SHAFT - auger drive

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex., nut (25-116) L.W. (92-6)

4шт.

131-7

LOCK NUT,7/16"-20

STOP NUT - 3/4", fl. wshr. (92-12)

1шт.

14

F18442

BULK HEAD - auger tube, L.H. end

1шт.

75-612

SCREW - 3/8" x 3/4" N.C. rhd. machine

9шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. and L.W. (92-6)

9шт.

15

F18441

HEAD

BULK HEAD - auger drive shaft support

1шт.

75-612

SCREW - 3/8" x 3/4" N.C. rhd. machine

6шт.

25-106

NUT,3/8"-16, G5

- 3/4" N.C. hex. and L.W. (92-6)

6шт.

16

F82515M

AUGER - header, 10 ft. - 12 finger (Mchy.) Gr. combine

1шт.

F83099

TUBE AND FLIGHTING

1шт.

16

F82525M

AUGER - header, 10 ft. - 12 finger (Mchy.) Ed. Bean combine

1шт.

F83104

TUBE AND FLIGHTING

1шт.

16

F84062M

AUGER - header, 10 ft. - 16 finger (Mchy.)

1шт.

F84066

TUBE AND FLIGHTING

1шт.

16

F91971

AUGER - header, 10 ft. - 20 finger (Mchy.)

1шт.

F91975

TUBE AND FLIGHTING

1шт.

16

F92657M

AUGER - header, 10 ft. - 20 finger (Mchy.) heavy duty

1шт.

F92668

TUBE AND FLIGHTING

1шт.

16

F82520M

AUGER - header, 13 ft. - 12 finger (Mchy.)

1шт.

F83960

TUBE AND FLIGHTING

1шт.

16

F84063M

AUGER - header, 13 ft. - 16 finger (Mchy.)

1шт.

F84067

TUBE AND FLIGHTING

1шт.

16

F91972M

AUGER - header, 13 ft. - 20 finger (Mchy.)

1шт.

F91977

TUBE AND FLIGHTING

1шт.

16

F83064M

AUGER - header, 14 ft. - 12 finger (Mchy.)

1шт.

F83172

TUBE AND FLIGHTING

1шт.

16

F84064M

AUGER - header, 14 ft. - 16 finger (Mchy.)

1шт.

F84068

TUBE AND FLIGHTING

1шт.

16

F91973M

AUGER - header, 14 ft. - 20 finger (Mchy.)

1шт.

F91976

TUBE AND FLIGHTING

1шт.

17

F7473

ARM

- crank, finger pivot

4шт.

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

- 5/16" x 2" N.F. hex., nut (25-105) L.W. (92-5)

2шт.

18

F11606

BUSHING

SPOOL - (3-12 and 16 finger, 5-20 finger)

1шт.

19

F76158

LARGE PLATE

COVER - (6-12 and 16 finger, 10-20 finger)

1шт.

187-348

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 5/8"

SCREW - #14 x 5/8" pan. hd. tapping

1шт.

445406

SPRING NUT,Tinn, 1/4"-14

- #14 speed

1шт.

20

F6658

BUSHING

2шт.

21

F18443

SHAFT - finger control, 10 ft. - 12 finger

1шт.

21

F21184

SHAFT - finger control, 10 ft. - 16 finger

1шт.

21

F22519

SHAFT - finger control, 10 ft. - 20 finger

1шт.

21

F18444

SHAFT - finger control, 13 ft. - 12 finger

1шт.

21

F21185

SHAFT - finger control, 13 ft. - 16 finger

1шт.

21

F22520

SHAFT - finger control, 13 ft. - 20 finger

1шт.

21

F20052

SHAFT - finger control, 14 ft. - 12 finger

1шт.

21

F21186

SHAFT - finger control, 14 ft. - 16 finger

1шт.

21

F22599

SHAFT - finger control, 14 ft. - 20 finger

1шт.

22

F11522

EXTENSION - flight, L.H. spiral

1шт.

111-215

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2, Full Thd

BOLT - 5/16" x 3/4" rhd. sq. nk. and nut (129-102), flight extension

2шт.

195-103

WASHER,5/16"

- flat and L.W. (192-20), flight extension 5/16"

2шт.

23

F11521

CLIP - mounting, flight extension

2шт.

11-215

BOLT - 5/16" x 3/4" rhd. sq. nk. and nut (129-102), flight extension

2шт.

195-103

WASHER,5/16"

- flat and L.W. (192-20), flight extension 5/16"

2шт.

24

F11523

EXTENSION - flight, R.H. spiral

1шт.

111-215

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2, Full Thd

BOLT - 5/16" x 3/4" rhd. sq. nk. and nut (129-102), flight extension

2шт.

195-103

WASHER,5/16"

- flat and L.W. (192-20), flight extension 5/16"

2шт.

25

F11520

PLATE - cover, flight extension

2шт.

111-215

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2, Full Thd

BOLT - 5/16" x 3/4" rhd. sq. nk., flight extension

8шт.

9635082

NUT,5/16" - 18, Gr 5

and L.W. (192-20), flight extension 5/16"-18, G5

8шт.

26

F9225

DOOR - inspection, flight extension

2шт.

187-348

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 5/8"

SCREW - #14 x 5/8" pan hd. tapping, flight extension

8шт.
