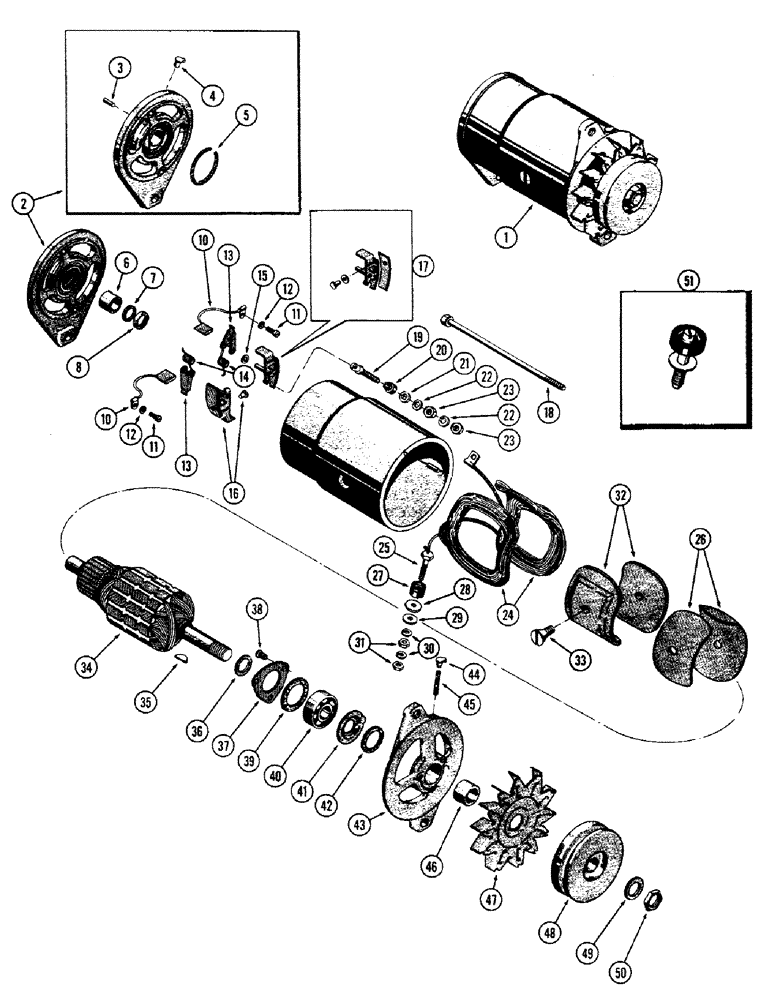

Запчасти Case IH 660 (422) - D27034 GENERATOR, 188 DIESEL ENGINE

1

D27034

GENERATOR

ASSY. - (Delco-Remy #1100404)

1шт.

2

A40679

HOUSING

ASSY. - commutator end

1шт.

3

R15095

PIN - head locating

1шт.

4

R16155

OILER

1шт.

5

A41417

WICK

- oiler

1шт.

6

A25459

BUSHING

- armature (9/16 x 25/32 x 11/16")

1шт.

7

R16157

WASHER

FELT - dust seal, comm. end

1шт.

8

R16156

CUP

- felt retainer

1шт.

10

R4286

BRUSH, COMMUTATOR

BRUSH

2шт.

11

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

- brush lead

2шт.

12

195-15

WASHER,#12

- brush lead screw (Lock)

2шт.

13

R15090

ARM

- brush

2шт.

14

R16161

VALVE SPRING

SPRING - brush pressure

2шт.

15

R16162

SPACER - brush arm

2шт.

16

A40703

NOZZLE HOLDER

BRUSH HOLDER KIT - (Grounded)

1шт.

17

A40704

NOZZLE HOLDER

BRUSH HOLDER KIT - (Insulated)

1шт.

18

A40129

BOLT

BOLT - thru

2шт.

19

A40701

STUD

- armature terminal

1шт.

20

R16147

BUSHING

- insulating, arm. term. stud

1шт.

21

R15079

WASHER

- arm. term. stud (Flat)

1шт.

22

192-17

LOCK WASHER,#12

Washer, Lock, , Arm. terminal stud #12

2шт.

23

129-18

NUT,#12-24

- arm. term. stud

2шт.

24

R16149

COIL ASSY.

- field

1шт.

25

NSS

NOT SOLD SEPARAT

STUD - field terminal (See ref. 51)

1шт.

26

R16152

INSULATOR

INSULATION - field coil

2шт.

27

NSS

NOT SOLD SEPARAT

BUSHING - insulating, field term. stud (Order ref. 51)

1шт.

28

R16148

WASHER

- field term. stud (Insulating) (See ref. 51)

1шт.

29

R15079

WASHER

- field term. stud (Flat)

1шт.

30

192-17

LOCK WASHER,#12

Washer, Lock, , Field terminal stud #12

2шт.

31

129-18

NUT,#12-24

- field term. stud ( hex) #12-24

2шт.

32

A40700

SHOE - pole

2шт.

33

74-610

SCREW,3/8" - 24 x 5/8"

- pole shoes (3/8 x 5/8" N.F. flat hd.)

2шт.

34

A25428

ARM ASSY.

ARMATURE

1шт.

35

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

Fan and pulley #5, 1/8" x 5/8", HT

1шт.

36

R15100

WASHER - thrust, bearing, inner

1шт.

37

R15101

PLATE

- bearing retainer

1шт.

38

A41959

SCREW,#10 - 32 x 3/8"

- brg. plate retaining

3шт.

39

R16170

GASKET

- brg. plate retainer

1шт.

40

G10623

BALL BEARING

BEARING - drive end

1шт.

41

R16169

LARGE PLATE

RETAINER - felt washer

1шт.

42

R16168

WASHER

- felt

1шт.

43

A25442

HOUSING

FRAME ASSY. - drive end

1шт.

44

219-202

OILER

1шт.

45

R16165

WICK - oiler

1шт.

46

R16166

BUSHING

COLLAR - pulley spacer

1шт.

47

A25449

FAN

- generator

1шт.

48

A25454

PULLEY

- fan drive

1шт.

49

192-116

WASHER, LOCK

WASHER - lock, pulley nut (11/16" std.)

1шт.

50

A25546

NUT

- pulley retaining

1шт.

51

A40702

STUD

KIT - coil stud repair (Incl. items 25, 27 & 28)

1шт.
