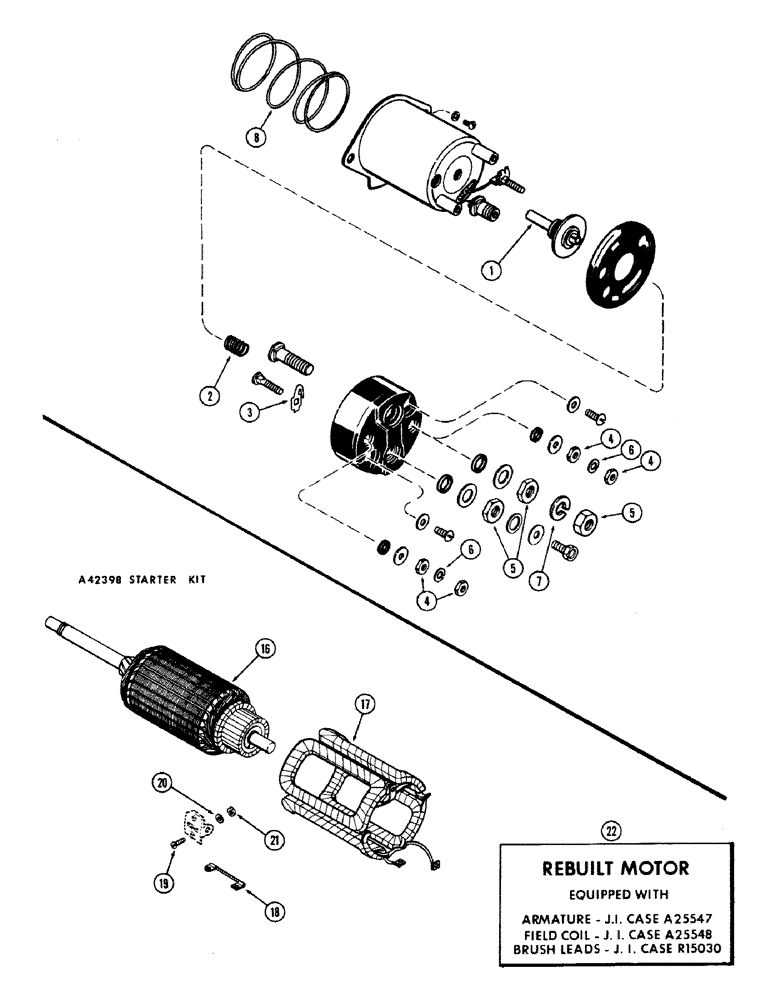

Запчасти Case IH 660 (419A) - G44891 SOLENOID, 188 DIESEL ENGINE

G44891

SOLENOID

ASSY. - starter (Delco 1114356) (See Delco-Remy dealer for all parts illustrated but not listed)

1шт.

1

A42061

SWITCH

CONTACT ASSY.

1шт.

2

A42059

SPRING

- contact return

1шт.

3

A42060

HALF BLADE

BLADE

1шт.

4

129-16

NUT,#8-32

Terminal #8-32

4шт.

5

R15015

X

NUT - copper, 3/8" N.C. hex.

2шт.

6

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

A40221

SPRING

- plunger return

1шт.

A42398

CONVERSION KIT

REBUILD KIT - for A36583 starter

1шт.

16

A25547

ARMATURE

A42398 rebuild starter kit

1шт.

17

A25548

COIL

- field, A42398 rebuild starter kit

1шт.

18

R15030

ELECTRICAL WIRE

LEAD - ground brush (#10 wire, 2" long), A42398 rebuild starter kit

2шт.

19

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- brush support (#10-24 x 1/2" rd. hd.), A42398 rebuild starter kit

4шт.

20

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , A42398 rebuild starter kit #10

4шт.

21

129-17

NUT,Hex, #10 - 24

NUT - ( hex.), A42398 rebuild starter kit #10-24

4шт.

22

321-1407

DECAL

- rebuilt motor, A42398 rebuild starter kit

1шт.
