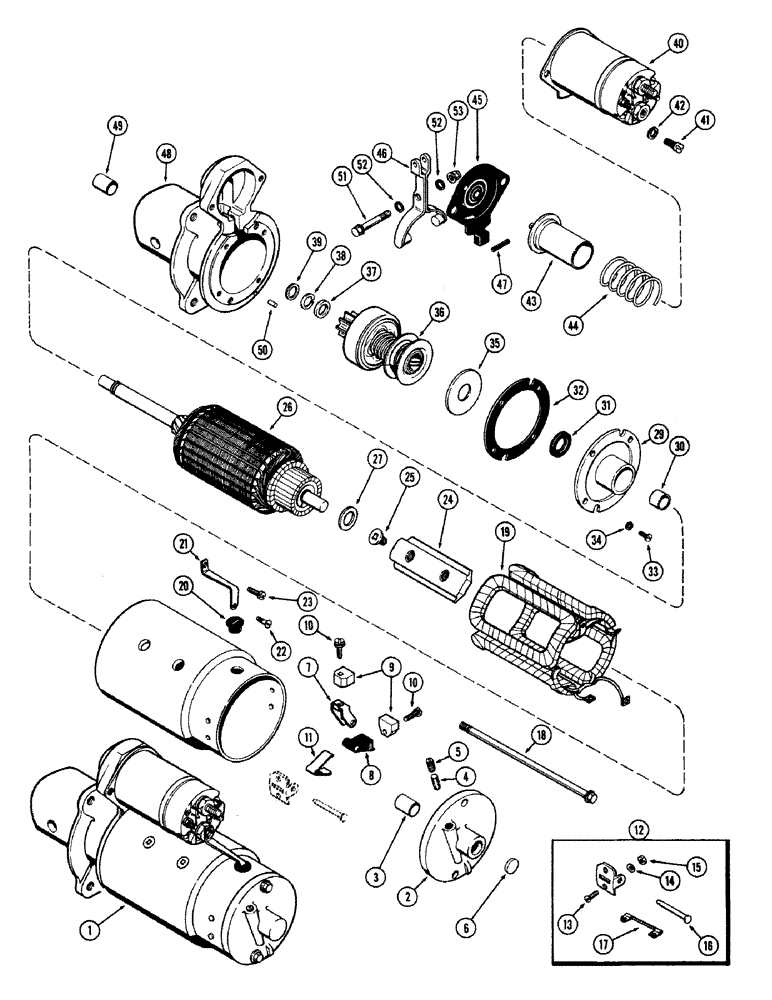

Запчасти Case IH 660 (418) - A36583 STARTER, 188 DIESEL ENGINE

1

A36583

STARTER MOTOR

STARTER ASSY. - (Delco-Remy #1107583) (See page 419A for rebuilt starter kit)

1шт.

2

A25304

FRAME

HEAD ASSY. - commutator end

1шт.

3

R15020

BUSHING

- armature shaft

1шт.

4

A41979

WICK

- oil

1шт.

5

221-1041

PLUG

- oil wick hole

1шт.

6

R15021

PLUG

- expansion

1шт.

7

A40217

HOLDER

- brush, ground

2шт.

8

R15027

HOLDER

- brush, insulated

2шт.

9

A25356

BRUSH, COMMUTATOR

BRUSH

4шт.

10

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush to holder

4шт.

11

A25359

SPRING

- brush tension

2шт.

12

A25379

KIT

SUPPORT KIT - brush holder

1шт.

13

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- brush support (#10 x 1/2" N.C., rd. hd.)

2шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

15

R15032

X

NUT - (#10 N.F. hex)

2шт.

16

A41983

PIN

-, Serial Range: holder-support

1шт.

17

A42494

ELECTRICAL WIRE

LEAD - brush ground (#12 wire, 1-5/8" long)

1шт.

18

A25552

BOLT

BOLT - thru

2шт.

19

A25319

COIL

ASSEMBLY - field

1шт.

20

A41980

GROMMET

- coil connector (In frame)

1шт.

21

A40225

CONNECTOR, ELEC

CONNECTOR - coil to solenoid (#10 x 7/16" N.F., rd. hd.)

1шт.

23

A42023

SCREW,#10 - 32 x 1/2"

- connector solenoid

1шт.

24

A25391

SHOE

- pole

4шт.

25

74-610

SCREW,3/8" - 24 x 5/8"

- pole shoes (3/8 x 5/8" N.F. flat hd.)

8шт.

26

A40219

ARMATURE

1шт.

27

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- brake, commutator end

1шт.

A40223

PLATE

ASSY. - center bearing

1шт.

29

NSS

NOT SOLD SEPARAT

PLATE - center bearing (Order A40223)

1шт.

30

A41982

BUSHING

BEARING - center (3/4 x 1-1/4 x 13/32")

1шт.

31

A40228

OIL SEAL

SEAL - oil (3/4 x 1-1/4 x 1/4")

1шт.

32

A41981

GASKET

- center bearing

1шт.

33

A41959

SCREW,#10 - 32 x 3/8"

- ctr. brg. to drive hsg.

4шт.

34

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

35

R15043

WASHER

- thrust, ctr. brg.

1шт.

36

A41871

DRIVE

ASSEMBLY - starter

1шт.

37

R15049

COLLAR

- stop, starter drive

1шт.

38

R15048

RING

- snap, collar retaining

1шт.

39

A25385

WASHER

- thrust, starter drive

1шт.

40

G44891

SOLENOID

ASSY. - (See page 418)

1шт.

41

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

- solenoid to housing (1/4 x 1/2" N.C. rd. hd.)

2шт.

42

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

43

A40218

PLUNGER

- solenoid

1шт.

44

A40221

SPRING

- plunger return

1шт.

45

A40222

BOOT

- solenoid cover

1шт.

46

A40220

LEVER

- shift

1шт.

47

138-93

LOCK PIN,3/16" x 13/16", Slotted

Pin, , lever to plunger 3/16" x 13/16", Slotted

1шт.

48

A40224

FRAME

HOUSING ASSY. - drive end

1шт.

49

A40227

BUSHING

- housing (1/2 x 9/16 x 25/32")

1шт.

50

R15041

PIN - drive end locating

1шт.

51

A40520

BOLT

PIVOT - shift lever

1шт.

52

A42181

SEALING WASHER

SEAL - pivot stud

2шт.

53

425-145

JAM NUT,Jam, 5/16"-18, G5

Pivot stud Jam, 5/16"-18, G5

1шт.
