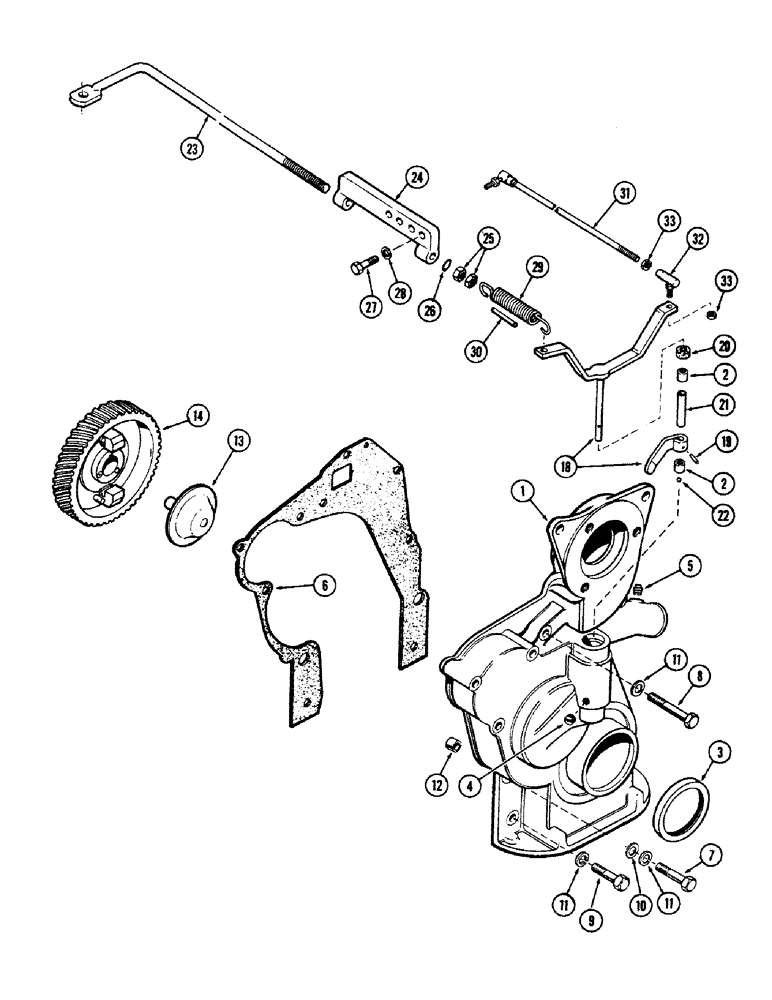

Запчасти Case IH 660 (414) - TIMING GEAR COVER, THROTTLE AND GOVERNOR, 201 SPARK IGNITION ENGINE, PRIOR TO SERIAL NUMBER 2616145

1

A36822

COVER

ASSY. - timing gear

1шт.

2

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

BEARING - needle, governor shaft

2шт.

3

A36609

OIL SEAL

- oil, crankshaft, frt. (2-1/8 x 3 x 1/2")

1шт.

4

A30016

FITTING

PLUG - (1/8" P.T., sltd. hd.)

1шт.

5

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - (3/8" P.T., sq. hd.)

1шт.

6

G46863

GASKET

- timing gear cover

1шт.

7

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Cover Hex, 3/8"-16 x 2 1/4", G5

1шт.

8

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- cover (3/8 x 3-1/4" N.C. hex)

1шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

9

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Cover Hex, 3/8"-16 x 2", G5

1шт.

10

195-25

WASHER,3/8"

- (13/32 x 13/16 x 1/16")

2шт.

11

92-6

LOCK WASHER,3/8"

5шт.

12

A29442

RING

- dowel, cover locating (13/32 x 9/16 x 5/8")

2шт.

13

A29957

SHAFT

ASSY. - governor

1шт.

14

G37066

GEAR

- camshaft, w/gov. weights

1шт.

18

A30125

SHAFT

ARM ASSEMBLY - governor control

1шт.

19

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

20

A30011

SEAL

- dust, governor shaft (3/8 x 13/16 x 3/8" felt)

1шт.

21

A30012

SPACER

- thrust, gov. shaft (25/64 x 1/2 x 1-11/16")

1шт.

22

211-5

BALL,3/16" Dia

- thrust (.) 3/16" Dia

1шт.

23

G15690

ROD - throttle

1шт.

24

A28878

GUIDE - throttle rod

1шт.

25

86585245

SPECIAL NUT,JAM, 5/8" - 18

- throttle rod (3/8" N.F. half hex)

2шт.

26

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

27

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Guide Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

28

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

29

A30127

SPRING

- governor control

1шт.

30

A36169

ROD - fuel shut-off (Inside spring)

1шт.

31

G45228

ROD

ASSY. - throttle, front

1шт.

32

A10329

BALL JOINT,1/4" - 28 x 1"

- throttle arm, front

1шт.

33

25-114

NUT,1/4"-28, G5

- (1/4" N.F. hex)

3шт.
