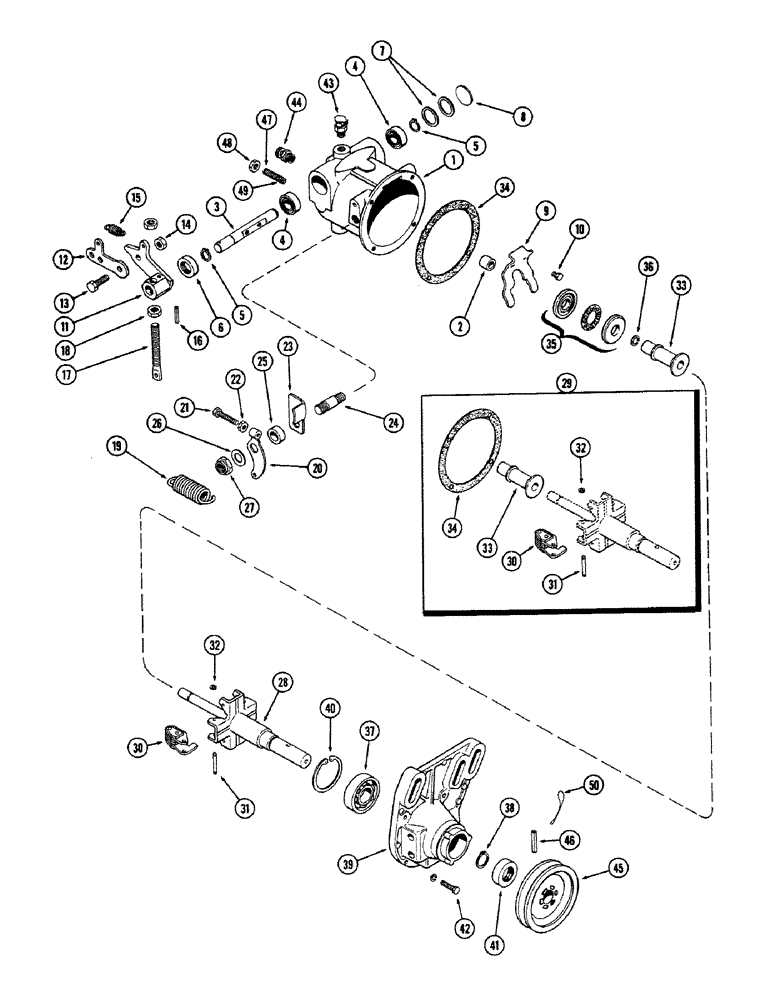

Запчасти Case IH 660 (413A) - A37881 GOVERNOR, 201 SPARK IGNITION ENGINE, ENGINE SERIAL NUMBER 2616145 TO 2638956
№
Артикул
Название
Примечание
Количество
A37881
VANEUM GAUGE
GOVERNOR ASSY. - (Pierce #GC-9909) (Not illust.)
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - governor (Order A37881)
1шт.
2
A41291
BUSHING
- drive shaft
1шт.
3
NSS
NOT SOLD SEPARAT
SHAFT - rocker
1шт.
4
A41271
BEARING
- rocker shaft
2шт.
5
A41282
X
RING - snap, Serial Range: bearing-shaft
2шт.
6
A41295
OIL SEAL
SEAL - oil
1шт.
7
A41287
WASHER - thrust (23/32 x 7/8 x 1/16")
2шт.
8
A41284
PLUG - body, rocker shaft hole
1шт.
9
NSS
NOT SOLD SEPARAT
YOKE - rocker shaft
1шт.
10
193-504
SCREW - yoke (#10-32 x 7/16" Sems, self-tapping)
2шт.
11
A41300
LEVER - governor throttle
1шт.
12
NSS
NOT SOLD SEPARAT
LEVER - auxiliary, governor throttle
1шт.
13
A41265
BOLT - throttle levers (1/4 x 3/4" N.F. hex)
1шт.
14
131-526
NUT - throttle levers (1/4" N.F. Flexloc)
1шт.
15
A41280
SPRING - auxiliary lever
1шт.
16
138-73
LOCK PIN,5/32" x 3/4", Slotted
PIN, 5/32" x 3/4", Slotted
1шт.
17
NSS
NOT SOLD SEPARAT
SCREW - adjusting eye (5/16" N.F.)
1шт.
18
25-115
NUT,5/16"-24, G5
- 5/16" NF hex
2шт.
19
A41277
SPRING
- speed control
1шт.
20
A41298
LEVER - spring adjusting
1шт.
21
A41274
SCREW - lever adjusting (#12 x 1-1/2" N.C. hex)
1шт.
22
225-14112
NUT,#12-24
- (#12 N.C. hex)
1шт.
23
NSS
NOT SOLD SEPARAT
BRACKET - adjusting lever stop
1шт.
24
NSS
NOT SOLD SEPARAT
STUD - adjusting, Serial Range: lever-body
1шт.
25
NSS
NOT SOLD SEPARAT
SPACER - stop brkt. to adj. lever
1шт.
26
A41285
WASHER - (29/64 x 3/4 x 1/16")
1шт.
27
NSS
NOT SOLD SEPARAT
NUT - (7/16" N.F. hex lock)
1шт.
28
NSS
NOT SOLD SEPARAT
SHAFT & SPIDER ASSEMBLY
1шт.
29
A41312
REPAIR KIT - shaft (See note)
1шт.
30
NSS
NOT SOLD SEPARAT
WEIGHT ASSEMBLY
2шт.
31
NSS
NOT SOLD SEPARAT
PIN - weight pivot
2шт.
32
NSS
NOT SOLD SEPARAT
"E"-RING - weight pin retaining
2шт.
33
NSS
NOT SOLD SEPARAT
SLEEVE - thrust
1шт.
34
A41278
GASKET - cover
1шт.
35
A41276
BEARING
ASSY. - thrust
1шт.
36
A41283
RING - snap, thrust sleeve retaining
1шт.
37
A43356
BEARING ASSY
BEARING - drive shaft
1шт.
38
A41292
RING
- snap, Serial Range: bearing-shaft
1шт.
39
NSS
NOT SOLD SEPARAT
FLANGE - body (Order A37881)
1шт.
40
A41293
RING - snap, Serial Range: bearing-flange
1шт.
41
A41273
OIL SEAL
SEAL - oil, drive shaft
1шт.
42
193-522
SCREW,SEMS, Hex Hd, #10-32 x 5/8"
- cover (#10-24 x 5/8" Sems hex. hd.)
4шт.
43
A41272
CUP - oil, governor body
1шт.
44
A41286
CARTRIDGE
CHECKER - oil lever plug
1шт.
45
A41303
PULLEY - governor
1шт.
46
138-97
LOCK PIN,3/16" x 1 1/8", Slotted
PIN, 3/16" x 1 1/8", Slotted
1шт.
47
NSS
NOT SOLD SEPARAT
SCREW - gov. bumper (1/4 x 1" N.F. spec.)
1шт.
48
A41275
NUT
- bumper screw (1/4" N.F. hex., shoulder)
1шт.
49
A41279
SPRING - bumper screw
1шт.
50
391-613
WIRE
- lock, roll pin (4" long)
1шт.
Выбрано товаров: 51
