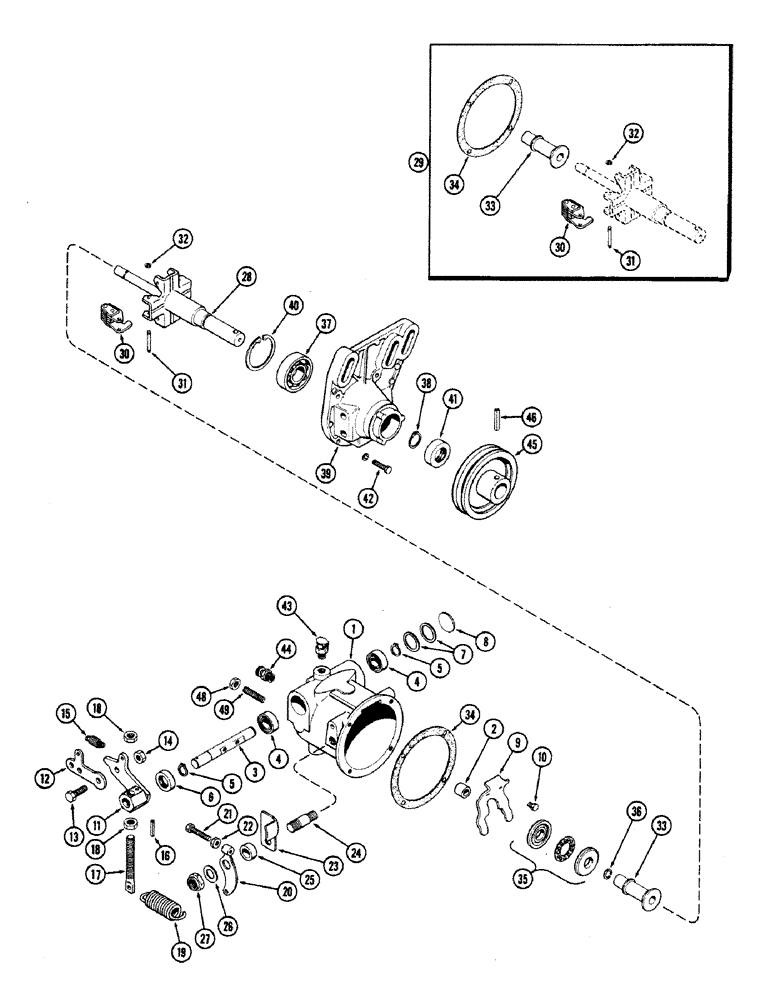

Запчасти Case IH 660 (412) - A38271 GOVERNOR, 201 SPARK IGNITION ENGINE, 1ST USED ENGINE SERIAL NUMBER 2638956

A38271

GOVERNOR

ASSY. - (Pierce #GC-9909-1) (Not illust.)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - governor (Order A38271)

1шт.

2

A41291

BUSHING

- drive shaft

1шт.

3

NSS

NOT SOLD SEPARAT

SHAFT - rocker

1шт.

4

A41271

BEARING

- rocker shaft

1шт.

5

A41282

X

RING - snap, Serial Range: bearing-shaft

2шт.

6

A41295

OIL SEAL

SEAL - oil

1шт.

7

A41287

WASHER - thrust (23/32 x 7/8 x 1/16")

2шт.

8

A41284

PLUG - body, rocker shaft hole

1шт.

9

NSS

NOT SOLD SEPARAT

YOKE - rocker shaft

1шт.

10

193-504

SCREW - yoke (#10-32 x 7/16" Sems, self-tapping)

2шт.

11

A41300

LEVER - governor throttle

1шт.

12

NSS

NOT SOLD SEPARAT

LEVER - auxiliary, governor throttle

1шт.

13

A41265

BOLT - throttle levers (1/4 x 3/4" N.F. hex)

1шт.

14

131-526

NUT - throttle levers (1/4" N.F. Flexloc)

1шт.

15

A41280

SPRING - auxiliary lever

1шт.

16

138-73

LOCK PIN,5/32" x 3/4", Slotted

PIN, 5/32" x 3/4", Slotted

1шт.

17

NSS

NOT SOLD SEPARAT

SCREW - adjusting eye (5/16" N.F.)

1шт.

18

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

19

A41277

SPRING

- speed control

1шт.

20

A41298

LEVER - spring adjustment

1шт.

21

A41274

SCREW - lever adjusting (#12 x 1-1/2" N.C. hex)

1шт.

22

139-8

NUT - (#12 N.C. hex)

1шт.

23

NSS

NOT SOLD SEPARAT

BRACKET - adjusting lever stop

1шт.

24

NSS

NOT SOLD SEPARAT

STUD - adjusting, Serial Range: lever-body

1шт.

25

NSS

NOT SOLD SEPARAT

SPACER - stop brkt. to adj. lever

1шт.

28

A41285

WASHER - (29/64 x 3/4 x 1/16")

1шт.

27

NSS

NOT SOLD SEPARAT

NUT - (7/16" N.F. hex lock)

1шт.

28

NSS

NOT SOLD SEPARAT

SHAFT & SPIDER ASSEMBLY

1шт.

29

A41312

REPAIR KIT - shaft (See note)

1шт.

30

NSS

NOT SOLD SEPARAT

WEIGHT ASSY.

2шт.

31

NSS

NOT SOLD SEPARAT

PIN - weight pivot

2шт.

32

NSS

NOT SOLD SEPARAT

"E"-RING - weight pin retaining

2шт.

33

NSS

NOT SOLD SEPARAT

SLEEVE - thrust

1шт.

34

A41278

GASKET - cover

1шт.

35

A41276

BEARING

ASSY. - thrust

1шт.

36

A41562

RING - snap, thrust sleeve retaining

1шт.

37

A43356

BEARING ASSY

BEARING - drive shaft

1шт.

38

A41292

RING

- snap, Serial Range: bearing-shaft

1шт.

39

NSS

NOT SOLD SEPARAT

FLANGE - body (Order A38271)

1шт.

40

A41293

RING - snap, Serial Range: bearing-flange

1шт.

41

A41273

OIL SEAL

SEAL - oil, drive shaft

1шт.

42

193-522

SCREW,SEMS, Hex Hd, #10-32 x 5/8"

- cover (#10-24 x 5/8" Sems, hex hd.)

4шт.

43

A41272

CUP - oil, governor body

1шт.

44

A41286

CARTRIDGE

CHECKER - oil level plug

1шт.

45

A41303

PULLEY - governor

1шт.

46

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

1шт.

47

NSS

NOT SOLD SEPARAT

SCREW - governor bumper

1шт.

48

A41275

NUT

- bumper screw (1/4" N.F. hex, shoulder)

1шт.

49

A41279

SPRING - bumper screw

1шт.
