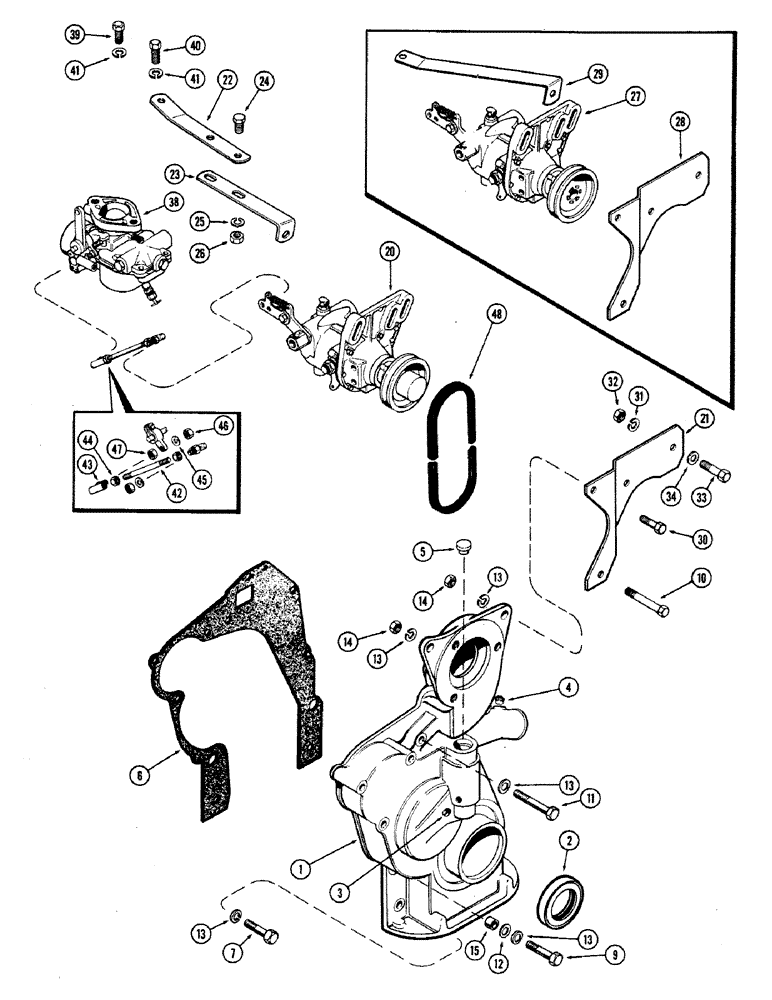

Запчасти Case IH 660 (410) - TIMING GEAR COVER, THROTTLE & GOVERNOR, 201 SPARK IGNITION ENG., USED ENG. S/N 2616145 TO 2685204

1

A38317

COVER

ASSY. - timing gear

1шт.

2

A36609

OIL SEAL

- oil, crankshaft, frt. (2-1/8 x 3 x 1/2")

1шт.

3

A30016

FITTING

PLUG - (1/8" P.T., sltd. hd.)

1шт.

4

221-843

PLUG,Hex Soc, 3/8"-18

- (3/8" P.T. sckt. hd.)

1шт.

5

A37874

PLUG - governor shaft hole

1шт.

6

A38227

GASKET

- timing gear cover (Replaces G46863)

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover (3/8 x 1-1/2" N.C. hex)

2шт.

9

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Cover Hex, 3/8"-16 x 2", G5

1шт.

10

13-639

BOLT - cover (3/8 x 2-7/16" N.C. hex)

1шт.

11

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- cover (3/8 x 3-1/4" N.C. hex)

3шт.

12

195-25

WASHER,3/8"

- (13/32 x 13/16 x 1/16")

54шт.

13

92-6

LOCK WASHER,3/8"

10шт.

14

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex)

3шт.

15

A29442

RING

- dowel, cover locating (13/32 x 9/16 x 5/8")

2шт.

20

A38271

GOVERNOR

ASSY. - (See page 412) (Pierce #GC-9909-1) (1st used eng. ser. no. 2638956)

1шт.

21

A38190

BRACKET - governor mounting (W/5/8" offset)

1шт.

22

A38273

STRAP - governor stabilizing (Replaces A38191)

1шт.

23

A38192

STRAP - governor stabilizing

1шт.

24

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

27

A37881

VANEUM GAUGE

GOVERNOR ASSY. - (See page 413A) (Pierce #GC-9909) (Used prior to eng. ser. no. 2638956)

1шт.

28

A37878

BRACKET - governor mounting (W/1/2" offset)

1шт.

29

A37877

STRAP - governor stabilizing (Order 1-A38192 and 1-A38273)

1шт.

30

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Gov. bracket to cover Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

31

92-6

LOCK WASHER,3/8"

3шт.

32

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

3шт.

33

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- gov. to brkt. (3/8 x 1-3/8" N.C. hex)

2шт.

34

95-6

WASHER,3/8"

- (7/16 x 1 x 5/64")

2шт.

38

A38177

CARBURETOR ASSY. - (See page 406) (Zenith #13178B) (1st used eng. ser. no. 2623740)

1шт.

38

A37880

CARBURETOR ASSY. - (See page 406) (Zenith #13178) (Used prior to eng. ser. no. 2623740) (Order A38177)

1шт.

39

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Carb. to manifold Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

40

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Gov. strap to carb. & manifold Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

41

92-6

LOCK WASHER,3/8"

2шт.

42

A35642

ROD

- governor to carburetor (6-1/2" long) (1st used eng. ser. no. 2638956)

1шт.

42

A37876

ROD - governor to carburetor (5-7/8" long) (Used prior to eng. ser. no. 2638956)

1шт.

43

A10329

BALL JOINT,1/4" - 28 x 1"

- rod

2шт.

44

25-154

JAM NUT,Jam, 1/4"-28, G5

- 1/4" N.F. hex, jam

2шт.

45

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

46

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

2шт.

47

425-154

JAM NUT,Jam, 1/4"-28, G5

- 1/2" N.F. hex jam

1шт.

48

G46195

V-BELT,0.40" W x 10.75" L

Governor Drive 0.40" W x 10.75" L

1шт.
