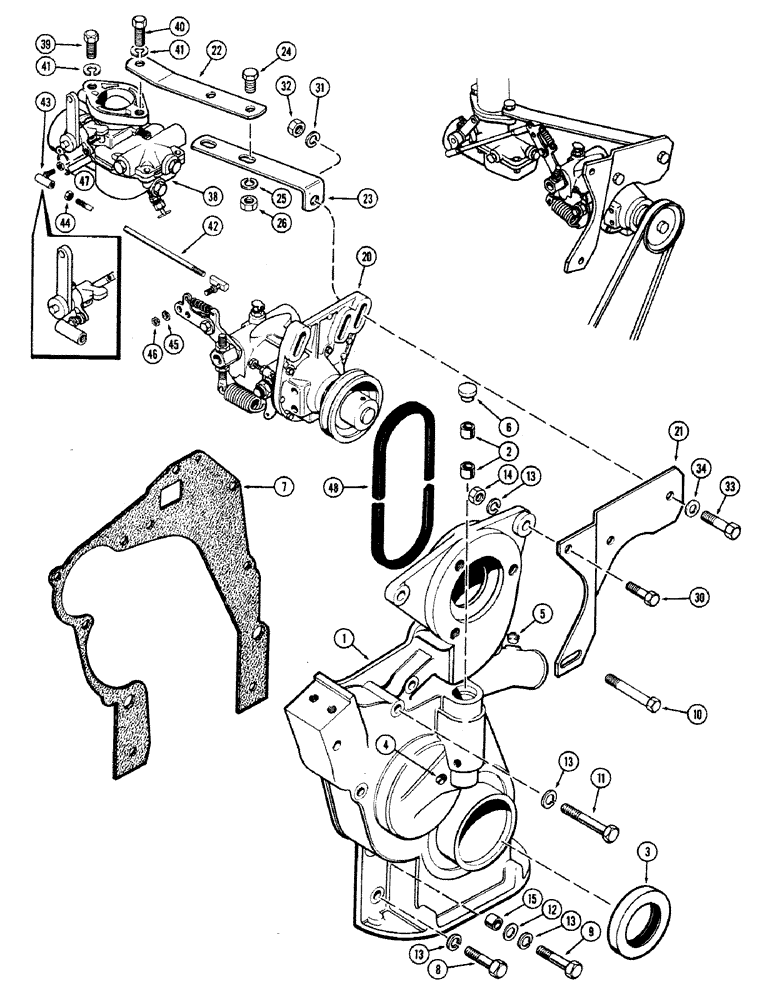

Запчасти Case IH 660 (409A) - TIMING GEAR COVER, THROTTLE AND GOVERNOR, 201 SPARK IGNITION ENG., 1ST USED ENG. SERIAL NO. 2616145

1

A38913

COVER

ASSY. - timing gear

1шт.

2

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

BEARING - needle, governor shaft

2шт.

3

A36609

OIL SEAL

- oil, crankshaft front (2 x 3-1/2")

1шт.

4

A30016

FITTING

PLUG - 1/8" P.T., sltd. hd.

1шт.

5

221-843

PLUG,Hex Soc, 3/8"-18

- 3/8" P.T. sckt. hd.

1шт.

6

A37874

PLUG - governor shaft hole

1шт.

7

A38227

GASKET

- timing gear cover

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

8

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

2шт.

9

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

10

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex

1шт.

11

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N.C. hex

3шт.

12

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

2шт.

13

92-6

LOCK WASHER,3/8"

12шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

3шт.

15

A29442

RING

- dowel, cover locating, 13/32 x 9/16 x 5/8"

2шт.

20

A38271

GOVERNOR

ASSY. - (See page 412)

1шт.

21

A38190

BRACKET - governor mounting

1шт.

22

A38273

STRAP - governor stabilizing

1шт.

23

A38192

STRAP - governor stabilizing

1шт.

24

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

30

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

31

92-6

LOCK WASHER,3/8"

3шт.

32

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

3шт.

33

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- 3/8 x 1-3/8" N.C. hex

2шт.

34

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

2шт.

38

A38177

CARBURETOR ASSY. - (See page 406)

1шт.

39

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

40

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

41

92-6

LOCK WASHER,3/8"

2шт.

42

A35642

ROD

-, Serial Range: governor-carburetor

1шт.

43

A10329

BALL JOINT,1/4" - 28 x 1"

BALLJOINT - rod

2шт.

44

25-154

JAM NUT,Jam, 1/4"-28, G5

- 1/4" N.F. hex, jam

2шт.

45

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

46

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

2шт.

47

425-154

JAM NUT,Jam, 1/4"-28, G5

- 1/2" N.F. hex, jam

1шт.

48

G46195

V-BELT,0.40" W x 10.75" L

Governor Drive 0.40" W x 10.75" L

1шт.
