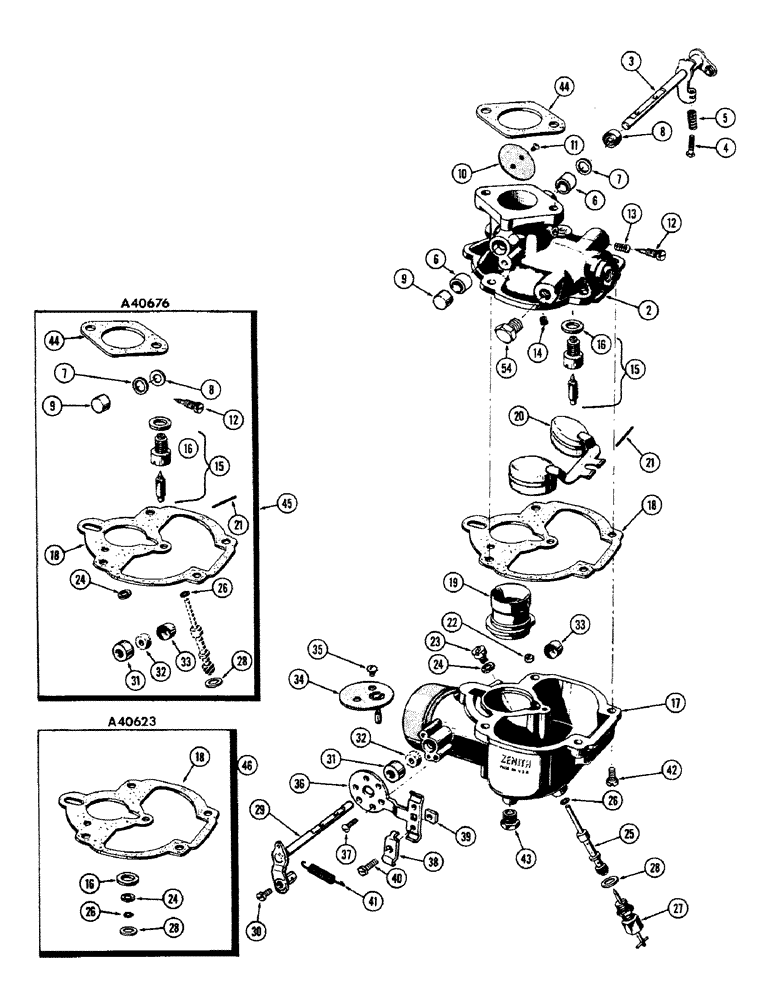

Запчасти Case IH 660 (408) - A36872 CARBURETOR, 201 SPARK IGNITION ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2616145

A36872

CARBURETOR ASSY. - (Not illust.) (Zenith #13038)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - (Order A36872)

1шт.

3

A25105

SHAFT

LEVER ASSY. - throttle shaft

1шт.

4

A25106

SCREW

- stop, throttle lever

1шт.

5

A25107

SPRING - throttle lever stop screw

1шт.

6

A40609

BUSHING

- throttle shaft

2шт.

7

B51528

SEAL

- throttle shaft

1шт.

8

B59360

RETAINER

- throttle shaft seal

1шт.

9

B51509

PLUG

- throttle shaft hole

1шт.

10

A40614

PLATE - throttle disc

1шт.

11

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- throttle disc

2шт.

12

B51265

HOSE

NEEDLE - idle adjusting

1шт.

13

B51404

SPRING

- idle adj. needle

1шт.

14

A40621

JET - idle

1шт.

15

A40938

VALVE

ASSEMBLY - fuel seat (Replaces B51343)

1шт.

16

B51618

WASHER

- fuel valve seat (See ref. 46)

1шт.

17

NSS

NOT SOLD SEPARAT

BOWL - fuel (Order A36872)

1шт.

18

A40616

GASKET

- bowl to body (See ref. 46)

1шт.

19

A40619

VENTURI

1шт.

20

B51359

FLOAT

- fuel level

1шт.

21

A40615

AXLE

- float pivot

1шт.

22

B59369

JET - wall vent

1шт.

23

A40620

JET - main

1шт.

24

B51619

WASHER

- main jet (See ref. 46)

1шт.

25

A40622

JET

- discharge

1шт.

26

B51610

WASHER

- discharge jet (See ref. 46)

1шт.

27

B51330

ADJUSTER

NEEDLE - main adjustment jet

1шт.

28

B51618

WASHER

- main jet adj. (See ref. 46)

1шт.

29

A40618

LEVER ASSEMBLY - choke shaft

1шт.

30

B51579

SCREW - choke wire

1шт.

31

B51439

RETAINER

- packing washer

1шт.

32

B51533

WASHER

SEAL - dust, choke shaft (Felt)

1шт.

33

B51509

PLUG

- choke shaft hole

1шт.

34

B51365

PLATE

- choke disc

1шт.

35

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- choke disc

2шт.

36

B51401

BRACKET - choke

1шт.

37

B51458

SCREW,#8 - 32 x 0.37"

-, Serial Range: bracket-bowl

2шт.

38

B51403

CLIP

CLAMP - choke cable

1шт.

39

B51594

X

NUT - clamp screw ret.

1шт.

40

B51580

SCREW

-, Serial Range: clamp-bracket

1шт.

41

B51412

SPRING

- choke lever return

1шт.

42

B51635

SCREW,5/8" x 0.335"

-, Serial Range: bowl-body

4шт.

43

B51541

PLUG

- carburetor

3шт.

44

B51459

GASKET

-, Serial Range: carburetor-manifold

1шт.

45

A40676

KIT

REPAIR KIT - carburetor

1шт.

46

A40623

GASKET KIT

- carburetor

1шт.
