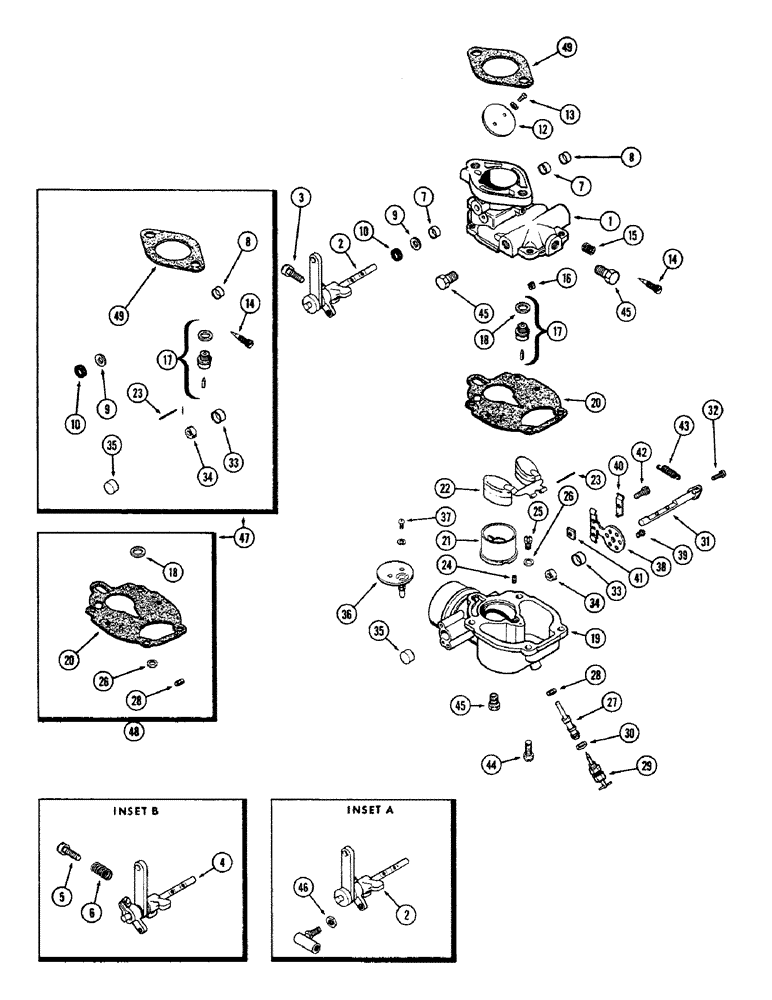

Запчасти Case IH 660 (406) - A38177 AND A37880 CARBURETOR, 201 SPARK IGNITION ENGINE

A38177

CARBURETOR ASSY. - (Not illust.) (Zenith #13178B) (Incl. items 1 thru 3, 7 thru 46) (1st used eng. ser. no. 2623740)

1шт.

A37880

CARBURETOR ASSY. - (Not illust.) (Zenith #13178) (Incl. items 1, 4 thru 45) (Order A38177 and ref. 46) (Used eng. ser no. 2616145 thru 2673739)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - (Order A38177 and 129-161 nut)

1шт.

2

A41398

LEVER

ASSY. - throttle shaft (See inset A)

1шт.

3

A41396

SCREW - throttle stop lever

1шт.

4

NSS

NOT SOLD SEPARAT

LEVER ASSY. - throttle shaft (Order ref. 2 and 46) (See inset B)

1шт.

5

A25106

SCREW

- stop, throttle lever

1шт.

6

A25107

SPRING - throttle lever stop screw

1шт.

7

A40609

BUSHING

- throttle shaft

2шт.

8

A40612

PLUG

- throttle shaft hole (See ref. 47)

1шт.

9

B51528

SEAL

- throttle shaft (See ref. 47)

1шт.

10

B59360

RETAINER

- throttle shaft seal (See ref. 47)

1шт.

12

A40614

PLATE - throttle disc

1шт.

13

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- throttle disc

2шт.

14

B51265

HOSE

NEEDLE - idle adj. (See ref. 47)

1шт.

15

B51404

SPRING

- idle adj. needle

1шт.

16

A40621

JET - idle

1шт.

17

A40938

VALVE

ASSY. - fuel seat (See ref. 47)

1шт.

18

B51618

WASHER

- fuel valve seat (See ref. 48)

1шт.

19

NSS

NOT SOLD SEPARAT

BOWL - fuel (Order A38177 and 129-161 nut)

1шт.

20

B51471

GASKET

- bowl to body (See ref. 48)

1шт.

21

A40619

VENTURI

1шт.

22

B51359

FLOAT

- fuel level

1шт.

23

B51433

AXLE

- float pivot (See ref. 47)

1шт.

24

B59369

JET - wall vent

1шт.

25

A40620

JET - main

1шт.

26

B51619

WASHER

- main jet (See ref. 48)

1шт.

27

A40622

JET

- discharge

1шт.

28

B51610

WASHER

- discharge jet (See ref. 48)

1шт.

29

B51330

ADJUSTER

NEEDLE - main adjustment jet

1шт.

30

B51618

WASHER

- main jet adjustment (See ref. 48)

1шт.

31

A40618

LEVER ASSY. - choke shaft

1шт.

32

B51579

SCREW - choke wire

1шт.

33

B51439

RETAINER

- packing washer (See ref. 47)

1шт.

34

B51533

WASHER

SEAL - dust, choke shaft (Felt) (See ref. 47)

1шт.

35

B51509

PLUG

- choke shaft hole (See ref. 47)

1шт.

36

B51365

PLATE

- choke disc

1шт.

37

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- choke disc

2шт.

38

B51401

BRACKET - choke

1шт.

39

B51458

SCREW,#8 - 32 x 0.37"

-, Serial Range: bracket-bowl

2шт.

40

B51403

CLIP

CLAMP - choke cable

1шт.

41

B51594

X

NUT - clamp screw ret.

1шт.

42

B51580

SCREW

-, Serial Range: clamp-bracket

1шт.

43

B51412

SPRING

- choke lever return

1шт.

44

B51635

SCREW,5/8" x 0.335"

-, Serial Range: bowl-body

4шт.

45

B51541

PLUG

- carburetor

3шт.

46

425-154

JAM NUT,Jam, 1/4"-28, G5

- 1/2" N.F. hex jam (See inset A)

1шт.

47

CASA40940

KIT

REPAIR KIT - carburetor overhaul

1шт.

48

B51496

GASKET

KIT - carburetor

1шт.

49

B51459

GASKET

-, Serial Range: carburetor-manifold

1шт.
