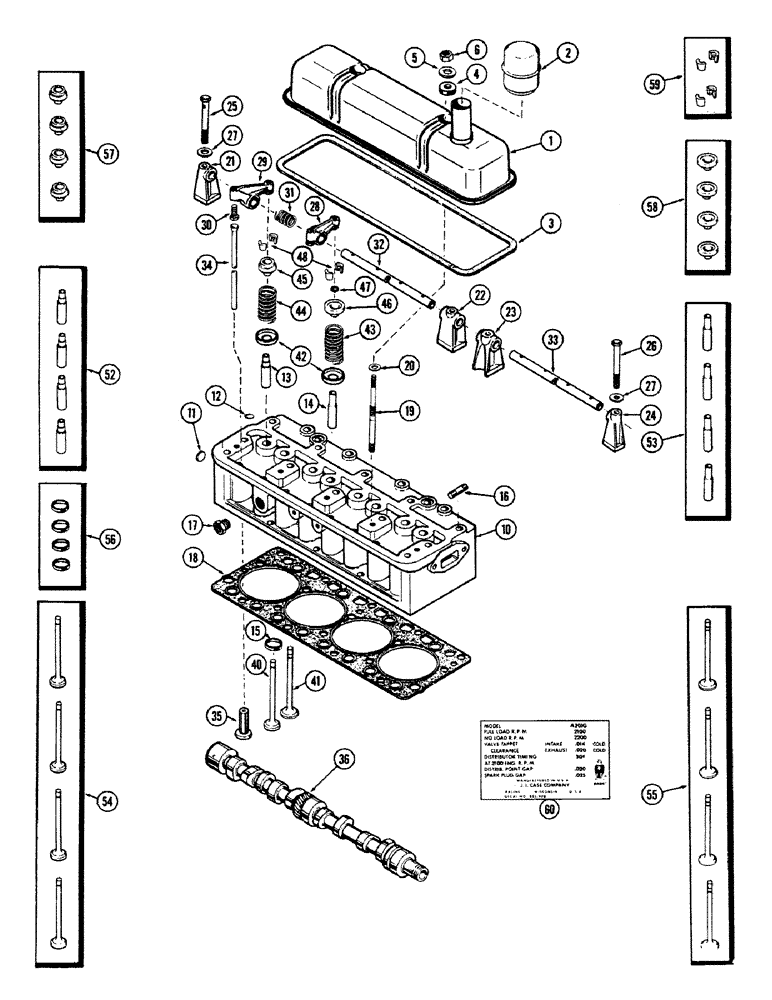

Запчасти Case IH 660 (402) - CYLINDER HEAD ASSEMBLY, 201 SPARK IGNITION ENGINE

1

G37060

COVER - cylinder head

1шт.

2

A36608

CAP

- oil filler & breather

1шт.

3

G46866

GASKET

- cylinder head cover

1шт.

4

G46867

GROMMET

- cover (13/32 x 1-1/4 x 3/8" rubber)

2шт.

5

G49400

WASHER

- cover (13/32 x 1-5/32 x 10 Ga.)

2шт.

6

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

10

G11871

HEAD (CYLINDER)

HEAD ASSY. - cylinder

1шт.

11

41-18

PLUG

- rear (1-1/8" expansion)

1шт.

12

41-13

GUARD,Exp, 13/16"

- top (13/16" expansion)

1шт.

13

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (See ref. 52)

4шт.

14

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (See ref. 53)

4шт.

15

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (See ref. 56)

4шт.

16

A29431

STUD

- manifold, 3/8" N.C. x 1-3/4"

7шт.

17

A30136

ADAPTER

- heat gauge bulb

1шт.

18

A36585

CYLINDER HEAD GASKET

- cylinder head

1шт.

19

A36780

STUD

- head and cover

2шт.

20

G11352

BUSHING

SPACER - cylinder head

2шт.

21

A36615

BRACKET

- rocker shaft, rear

1шт.

22

G2101

BRACKET

- rocker shaft, center

1шт.

23

G2102

BRACKET

- rocker shaft, intermediate

2шт.

24

G2100

BRACKET

- rocker shaft, front

1шт.

25

G49067

BOLT

- rear bracket (3/8 x 3-1/2" N.C. hex spec.)

1шт.

26

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- bracket (3/8 x 3-1/2" N.C. hex)

4шт.

27

A30058

WASHER

- bracket bolt (13/32 x 7/8 x 1/8")

5шт.

28

G45770

ARM

ASSY. - rocker, right hand (Incl. item 30)

4шт.

29

G45771

ARM

ASSY. - rocker, left hand (Incl. item 30)

4шт.

30

G49075

ADJUSTMENT SCREW,3/8" - 24 x 0.50"

- adjusting, rocker arm

1шт.

31

G48501

SPRING

- rocker shaft

4шт.

32

A38181

SHAFT

- rocker arm

2шт.

34

G47129

PUSH ROD

ROD - push

8шт.

35

A30006

TAPPET

- valve

8шт.

36

G2091

CAMSHAFT

- (See pages 392 and 394)

1шт.

40

NSS

NOT SOLD SEPARAT

VALVE - exhaust (See ref. 54)

4шт.

41

NSS

NOT SOLD SEPARAT

VALVE - intake (See ref. 55)

4шт.

42

G49065

SEAT

- valve spring

8шт.

43

A30025

SPRING

- intake valve (2-3/8" free length)

4шт.

44

G10004

SPRING

- exhaust valve (2-3/16" free length)

4шт.

45

NSS

NOT SOLD SEPARAT

ROTO-CAP ASSY. - exhaust valve (See ref. 57)

4шт.

46

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (See ref. 58)

4шт.

47

G46851

SEAL

- intake valve stem (19/64 x 27/64 x 5/64" rubber)

4шт.

48

NSS

NOT SOLD SEPARAT

LOCK - valve spring keeper (See ref. 59)

16шт.

52

G11861

GUIDE

KIT - exhaust valve (Set of 4)

1шт.

53

G11946

GUIDE

KIT - intake valve (Set of 4)

1шт.

54

G11988

VALVE

KIT - exhaust (Set of 4)

1шт.

55

G11987

VALVE

KIT - intake (Set of 4)

1шт.

56

G11986

KIT

INSERT KIT - exhaust valve (Set of 4)

1шт.

57

G11928

CAP

ROTO-CAP KIT - exhaust valve (Set of 4)

1шт.

58

G11927

RETAINER

KIT - intake valve (Set of 4)

1шт.

59

G11929

LOCK

KIT - valve keeper (Set of 4)

4шт.

60

321-1363

DECAL

- engine data

1шт.
