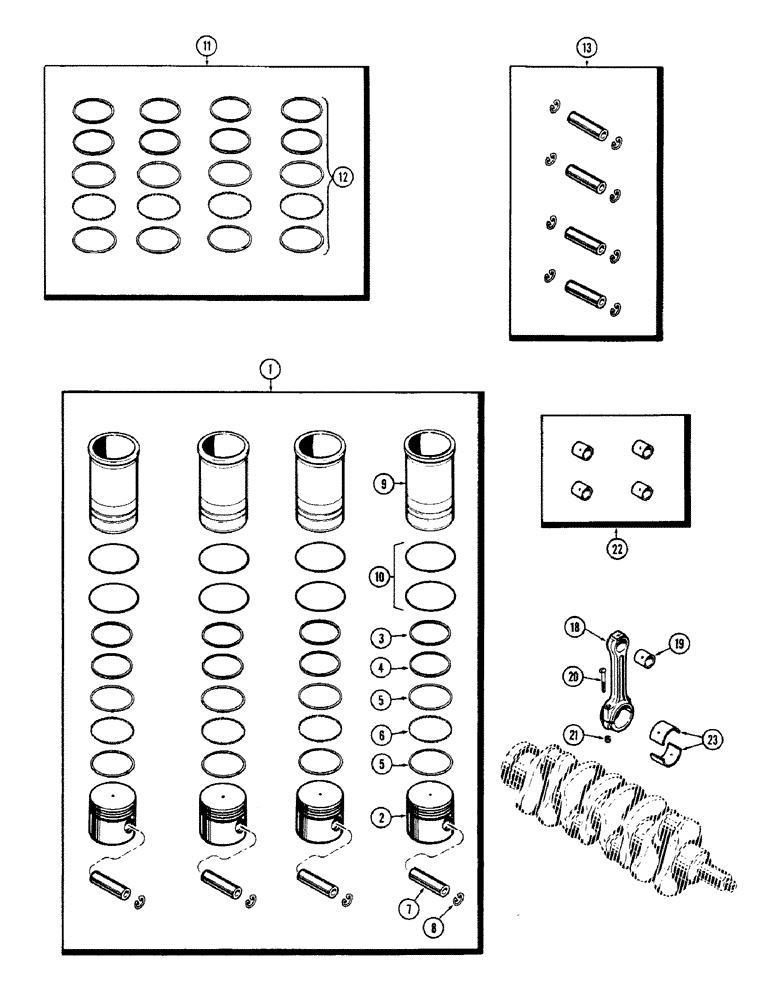

Запчасти Case IH 660 (400) - CRANKSHAFT AND FLYWHEEL, 201 SPARK IGNITION ENGINE

1

A40797

SPARE PART

PISTON & SLEEVE ASSY. - (Set of 4)

1шт.

2

A36863

PISTON

- cylinder (3-15/16" bore)

4шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, 1st groove (Order ref. 12)

4шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, 2nd groove (Order ref. 12)

4шт.

5

NSS

NOT SOLD SEPARAT

RAIL - oil control, 3rd groove (Order ref. 12)

8шт.

6

NSS

NOT SOLD SEPARAT

SPACER - oil control rail, 3rd groove (Order ref. 12)

4шт.

7

NSS

NOT SOLD SEPARAT

PIN - piston (See ref. 13)

4шт.

8

A26915

RING, SNAP

RING - snap, piston pin ret.

8шт.

9

A36862

SLEEVE

- piston (Cylinder liner)

4шт.

10

G46888

O-RING,3.737" ID x 3.943" OD

"O"-RING - sleeve packing

8шт.

11

A40605

PISTON RING SET

RING SET - piston re-ring (Set of 4)

1шт.

12

A40604

RING

SET - piston re-ring (Set of 1)

4шт.

13

A36030

KIT

PIN KIT - piston, with retaining rings (Set of 4)

1шт.

18

G11172

STEM

ROD ASSY. - connecting

4шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (See ref. 22)

1шт.

20

G11701

BOLT

- conn. rod cap

2шт.

21

G49060

NUT

- conn. rod bolt

2шт.

22

G11922

BUSHING

KIT - piston pin (Set of 4)

1шт.

23

A36500

SEAL

INSERT ASSY. - conn. rod brg. (Std.) (Set of 2)

4шт.

23

A36501

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.002") (Set of 2)

4шт.

23

A36502

LINING

INSERT ASSY. - conn. rod brg. (-.010") (Set of 2)

4шт.

23

A36503

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.020") (Set of 2)

4шт.

23

A36504

KIT

INSERT ASSY. - conn. rod brg. (-.030") (Set of 2)

4шт.
