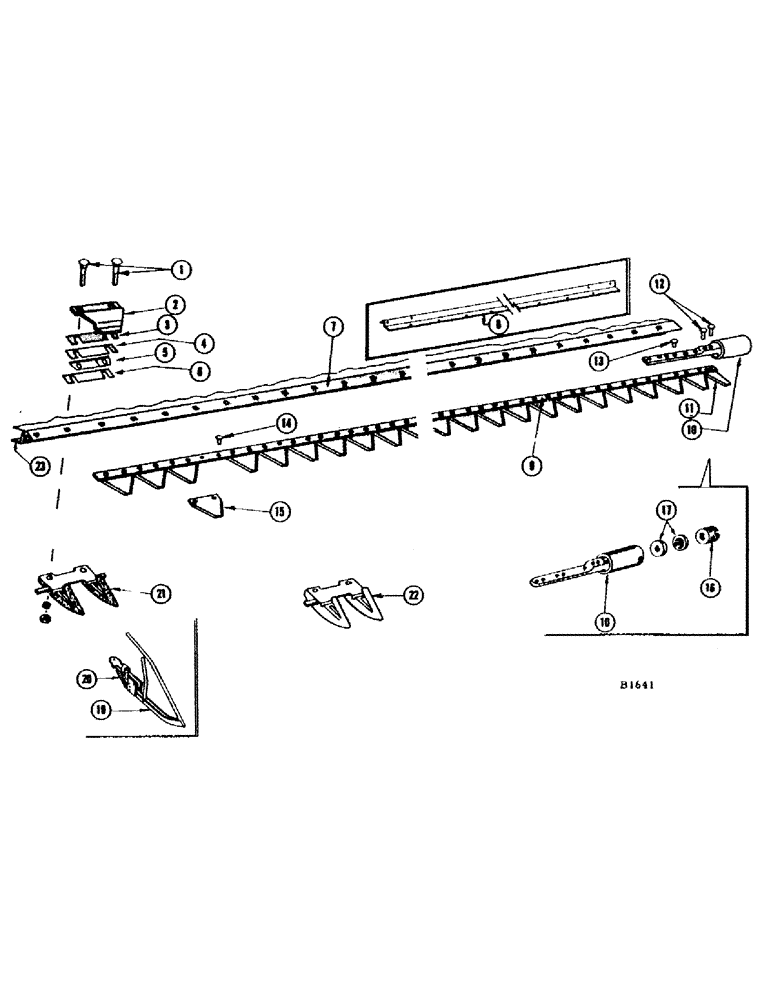

Запчасти Case IH 660 (042) - SICKLE AND CUTTER BAR, BEFORE NUMBER 8334601

1

F76562

BOLT - sickle guard (3/8" x 1-1/2" carr. bolt w/nut and lockwasher) pkg. 25 per box

1шт.

2

F8356

CLIP

- hold down (10 - 10 ft., 13 - 13 ft., and 14 - 14 ft. header)

1шт.

3

E3354S

SHIM - (20 - 10 ft., 26 - 13 ft., 28 - 14 ft. header)

1шт.

4

F8355

SHIM - (10 - 10 ft., 13 - 13 ft., 14 - 14 ft. header)

1шт.

5

F7098

LARGE PLATE

PLATE - chaffing (10 - 10', 13 - 13', 14 - 14' header)

1шт.

6

F9392

SHIM - (10 - 10 ft., 13 - 13 ft., 14 - 14 ft. header)

1шт.

7

F16871

RAIL - cutter bar (10 ft. sickle)

1шт.

BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514) nut (25-105) and L.W. (92-5)

9шт.

F17545

RAIL - cutter bar (13 ft. sickle)

1шт.

BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514) nut (25-105) and L.W. (92-5)

13шт.

F19934

FLANGE BOLT

RAIL - cutter bar (14 ft. sickle)

1шт.

BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514) nut (25-105) and L.W. (92-5)

15шт.

8

F18499

SHIELD - cutter bar (Used in place of sickle guards on pickup header for 660 special) 10 ft. header

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (114-209) nut (129-123) and L.W. (192-21) fl. wshr. (195-104)

20шт.

9

F82508

KNIFE ASSY

SICKLE - 10 ft. (w/F11304 sections) see F88044

1шт.

F82517

KNIFE ASSY

SICKLE - 13 ft. (w/F11304 sections) see F88046

1шт.

F83063

KNIFE ASSY

SICKLE - 14 ft. (w/F11304 sections) see F88047

1шт.

10

F77330

HEAD

- sickle

1шт.

11

F9956

PLATE

- filler, L.H. end of sickle

1шт.

12

45-418

RIVET,Button, 6.35mm OD x 28.57mm L

- (1/4" x 1-1/8" rhd.) sickle head

2шт.

13

Z1716

RIVET

- (#5-1/2" x 1" rhd.) sickle head to bar (1 lb. pkg.)

5шт.

14

Z1690

RIVET

- (#5-1/2" x 9/16" rhd.) sections to bar (1 lb. pkg.)

1шт.

15

F11304

KNIFE SECTION

SECTION - underserrated (40 - 10', 52 - 13', 56 - 14')

1шт.

16

F8360

ADJUSTMENT SCREW,1 5/16" - 18 x 3/4"

- adjusting

1шт.

FITTING - grease 1/8" str. (219-1) for head

1шт.

PIN - cotter 3/32" x 1/2" (132-24) for head

2шт.

17

A57918

SEAT

BEARING

2шт.

F12506

SECTION - top serrated

1шт.

F88044

KNIFE ASSY

SICKLE - 10 ft. (w/F14437 sections)

1шт.

F88046

KNIFE ASSY

SICKLE - 13 ft. (w/F14437 sections)

1шт.

F88047

KNIFE ASSY

SICKLE - 14 ft. (w/F14437 sections)

1шт.

F14437

KNIFE SECTION

SECTION - underserrated, chrome plated Also includes ref. 10, 13, 15, and 16.

1шт.

F14477

KNIFE SECTION

SECTION - top serrated, chrome plate

1шт.

T13492

RIVET

- #5-1/2 x 7/8" rhd. plated (1 lb. pkg.) chrome sections

1шт.

T13489

RIVET

- #5-1/2 x 9/16" rhd. plated (1 lb. pkg.) chrome sections

1шт.

19

F84171

GUARD - pickup, grain saving (Special)

1шт.

20

A30455

SPRING

1шт.

21

F3146

GUARD

- sickle (19 - 10 ft., 25 - 13 ft., and 27 - 14 ft.)

1шт.

22

F3147

GUARD

- sickle, L.H. end

1шт.

23

F16872

REINFORCEMENT - for 10 ft. cutter bar rail F16871

1шт.

F17546

REINFORCEMENT - for 13 ft. cutter bar rail F17545

1шт.

F19935

REINFORCEMENT - for 14 ft. cutter bar rail F19934

1шт.
