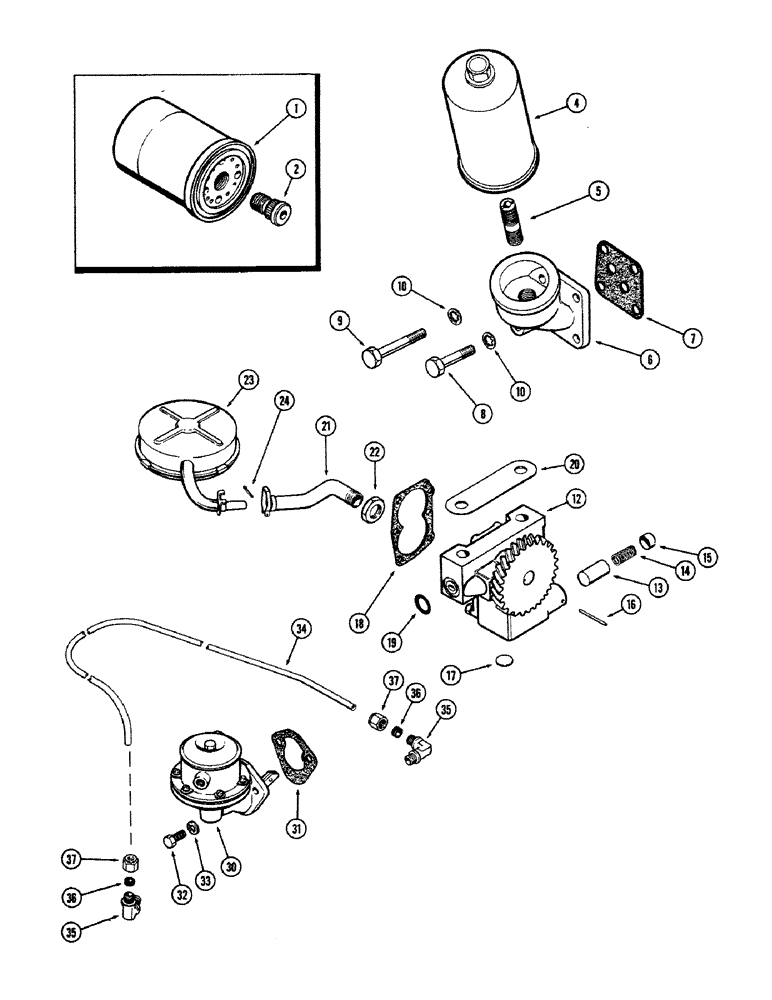

Запчасти Case IH 660 (396) - OIL FILTERS, 201 SPARK IGNITION ENGINE, FLANGE MOUNTED

1

A37189

FILTER, ELEMENT

FILTER - oil, engine (Replaces G45210), Flange Mounted

1шт.

2

A153552

ADAPTER

-, Serial Range: filter-block

1шт.

4

G45210

FILTER, ELEMENT

FILTER - oil, engine (Can use A37189), Bracket Mounted

1шт.

5

G49074

ADAPTER -, Serial Range: filter-bracket

1шт.

6

G2118

BRACKET - filter mounting

1шт.

7

G46854

GASKET

-, Serial Range: bracket-block

1шт.

8

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Bracket Hex, 5/16"-18 x 7/8", G5, Full Thd

3шт.

9

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Bracket Hex, 5/16"-18 x 2", G5

1шт.

10

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

12

G11844

PUMP, ENGINE OIL

PUMP ASSY. - oil (Complete)

1шт.

13

A155144

VALVE, PRESSURE RELI

- relief, oil pump

1шт.

14

G48513

VALVE SPRING

SPRING - pressure, relief valve (2" free length), oil pump

1шт.

15

A29260

RETAINER

CAP - relief valve spring, oil pump

1шт.

16

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, , Cap ret., oil pump 1/8" x 3/8", Slotted

1шт.

17

41-102

PLUG,Exp, 1/2"

- pump body (1/2" expansion), oil

2шт.

18

G46852

GASKET

- pump cover, oil

1шт.

19

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port (3/4" x 15/16" x 3/32"), pump

1шт.

20

G11337

SHIM,.002" Thk

Pump to bearing cap, Oil .002" Thk

1шт.

20

G11338

SHIM,.005" Thk

Pump to bearing cap, Oil .005" Thk

1шт.

21

A39035

TUBE

PIPE - suction (Replaces G45766), oil pump

1шт.

23

A39036

FLOAT

- oil pan (Replaces A30126), pump

1шт.

22

223-207

LOCK NUT

NUT - pipe to pump (3/8" conduit locknut), oil

1шт.

24

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Oil pump 1/8" x 1 1/4"

1шт.

30

G45778

PUMP

ASSY. - fuel, pump

1шт.

31

G46902

GASKET

- fuel, Serial Range: pump-block

1шт.

32

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Pump, Fuel pump Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

33

92-5

LOCK WASHER,5/16"

fuel pump 5/16"

2шт.

34

G46295

LINE - fuel, Serial Range: pump-carburetor

1шт.

35

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

- fuel line, pump

2шт.

36

222-653

SLEEVE,5/16" Tube, Comp

- (For 5/16" O.D. tube), fuel pump

1шт.

37

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - (For 5/16" O.D. tube), fuel pump

1шт.
