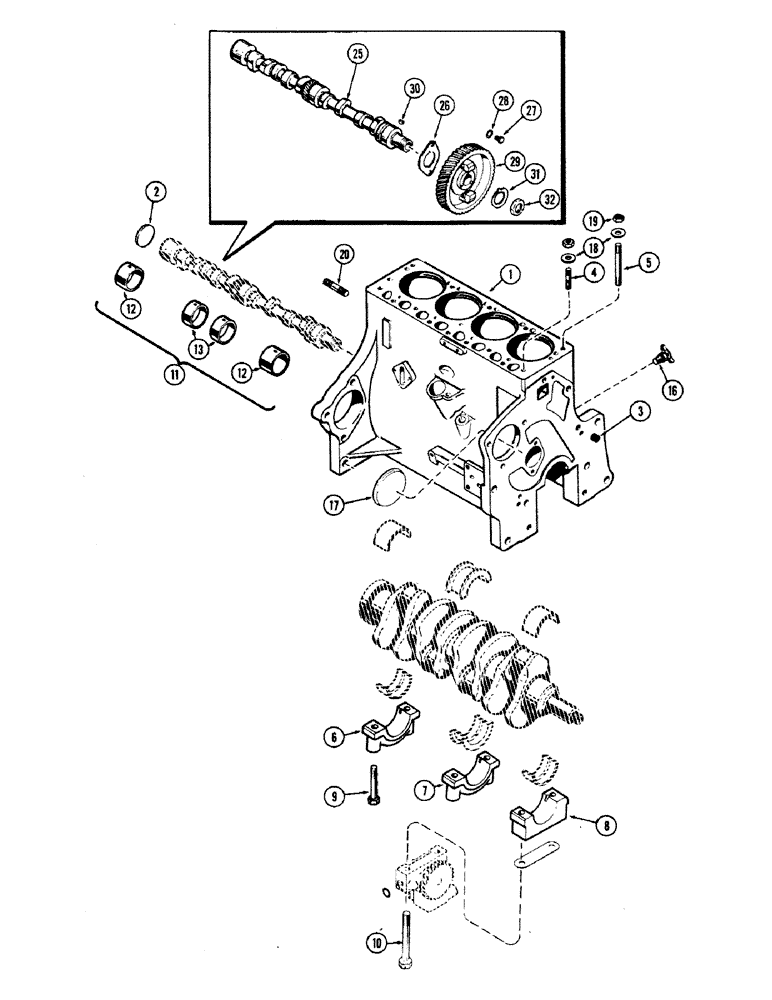

Запчасти Case IH 660 (394) - CYLINDER BLOCK ASSEMBLY, 201 SPARK IGNITION ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2615012

A40598

BLOCK ASSY. - short (Incl. stripped block, crankshaft & brgs., camshaft, timing gears, oil pump, piston assy., conn. rods & brgs., governor)

1шт.

1

A40596

BLOCK ASSY. - stripped

1шт.

2

A39241

PLUG,Exp, 2.12" dia

- camshaft hole (2-1/8" expansion)

1шт.

3

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- oil gallery (1/4" P.T., ctsk. sckt. hd.)

3шт.

4

A30057

STUD

- cyl. hd. (1/2" N.C./N.F. x 2")

3шт.

5

A29436

STUD

- cyl. hd. (1/2" N.C./N.F. x 5-13/16")

14шт.

6

G2062

CAP - crankshaft main brg., rear

1шт.

7

G2060

CAP - crankshaft main brg., center

1шт.

8

G2059

CAP - crankshaft main brg., front

1шт.

9

G49038

BOLT - rear and center brg. caps (1/2" x 3-3/8" N.C. spec)

4шт.

10

G49059

BOLT

- front brg. cap (1/2" x 4-3/4" N.C. spec.)

2шт.

11

A41229

BUSHING

SET - camshaft

1шт.

12

NSS

NOT SOLD SEPARAT

BUSHING - front & rear (1-7/32" wide)

2шт.

13

NSS

NOT SOLD SEPARAT

BUSHING - center (1/2" wide)

2шт.

16

217-103

COCK, DRAIN

COCK - drain, cylinder block

1шт.

17

A29268

PLUG

COVER - power steering pump hole

1шт.

18

G49404

WASHER

- cyl. head studs (17/32" x 27/32" x 1/16")

17шт.

19

A30021

NUT

- cyl. head studs (1/2" N.F. hex, spec.)

17шт.

20

A29365

STUD - engine mounting (5/8" N.C. x 3")

2шт.

25

G2091

CAMSHAFT

1шт.

26

A29290

PLATE

- thrust, camshaft

1шт.

27

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

BOLT - plate (5/16" x 1/2" N.C. spec.), camshaft

2шт.

28

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, , Camshaft Ext Tooth, 5/16"

2шт.

29

G37066

GEAR

- camshaft timing (Incl. gov. weights)

1шт.

30

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Timing gear, camshaft #6, 5/32" x 5/8"

1шт.

31

A29438

LOCK NUT

WASHER - tab, camshaft nut

1шт.

32

A30063

NUT

- timing gear retaining, camshaft

1шт.
