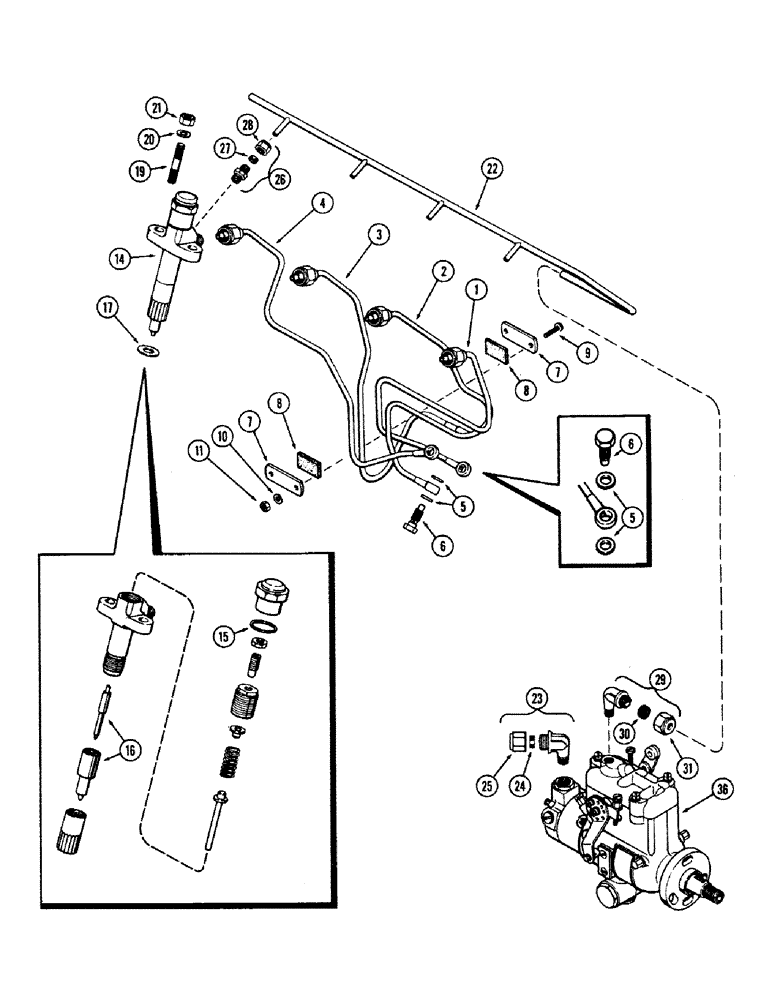

Запчасти Case IH 660 (388) - FUEL INJECTION SYSTEM, 188 DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2627377

1

A35058

TUBE

ASSY. - inj. pump to #1 cyl. (Incl. item 5)

1шт.

2

A35059

TUBE

ASSY. - inj. pump to #2 cyl. (Incl. item 5)

1шт.

3

A35060

TUBE

ASSY. - inj. pump to #3 cyl. (Incl. item 5)

1шт.

4

A35061

TUBE

ASSY. - inj. pump to #4 cyl. (Incl. item 5)

1шт.

5

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - screw connector

8шт.

6

73613

SCREW

- connector injection tube

4шт.

7

A27978

CLAMP

- injection tubes

2шт.

8

A27980

CUSHION

- injection tubes

2шт.

9

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- clamp (#10-24 x 1" rd. hd.)

2шт.

10

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

11

129-7

NUT,Hex, #10 - 24

- ( hex) #10-24

2шт.

14

A49056

NOZZLE CAP

INJECTOR ASSEMBLY - fuel

4шт.

15

G46885

GASKET

- injector cap

1шт.

16

A35085

NOZZLE CAP

NOZZLE ASSY. - (Fuel atomizer)

1шт.

17

G49068

GASKET

- injector nozzle

1шт.

G11724

LINER

SLEEVE - fuel injector (In cyl. head) (Not illust.) (See page 380)

4шт.

19

A29431

STUD

- injector (3/8" N.C. x 1-3/4")

8шт.

20

92-6

LOCK WASHER,3/8"

8шт.

21

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

8шт.

22

A36511

PIPE

TUBE - fuel leak-off

1шт.

23

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - fuel line (At pump)

1шт.

24

222-104

SLEEVE,3/8" Tube

- (For 3/8" O.D. tube)

1шт.

25

222-114

NUT,5/8"-24

NUT - (For 3/8" O.D. tube)

1шт.

26

222-21

FITTING,7/16"-24 x 1/8" NPTF

Leak-off tubes 7/16"-24 x 1/8" NPTF

4шт.

27

222-101

SLEEVE,3/16" Tube

- (For 3/16" O.D. tube)

1шт.

28

222-111

TUBE NUT,7/16" - 24

NUT - (For 3/16" O.D. tube)

1шт.

29

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - leak-off tube

1шт.

30

222-103

SLEEVE,5/16" Tube

1шт.

31

222-113

TUBE NUT,9/16"-24

NUT - (For 5/16" O.D. tube)

1шт.

36

A35777

PUMP, FUEL INJECTION

PUMP ASSY. - fuel injection (For breakdown, see page 390)

1шт.
