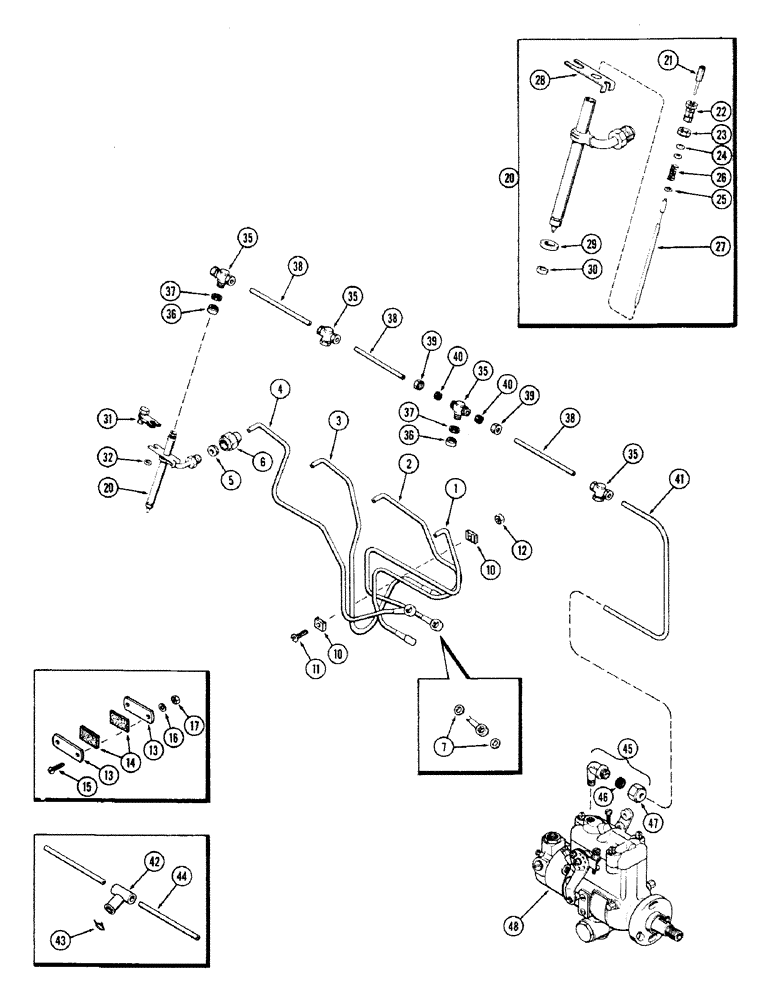

Запчасти Case IH 660 (386) - FUEL INJECTION SYSTEM, 188 DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 2627377

1

A41391

TUBE

ASSY. - inj. pump to #1 cyl. (Incl. items 5, 6 & 7)

1шт.

2

A41392

TUBE

ASSY. - inj. pump to #2 cyl. (Incl. items 5, 6 & 7)

1шт.

3

A41393

TUBE

ASSY. - inj. pump to #3 cyl. (Incl. items 5, 6 & 7)

1шт.

4

A41394

TUBE

ASSY. - inj. pump to #4 cyl. (Incl. items 5, 6 & 7)

1шт.

5

A37850

PIPE FITTING

SLEEVE - tube

1шт.

6

A37851

NUT

- tube

1шт.

7

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - screw connector

2шт.

10

A58709

BRACKET

CLAMP - injection tubes (1st used eng. S.N. 2651269)

4шт.

11

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

BOLT - #10-24 x 1" rd. hd.

2шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - #10-24 Tinnerman

2шт.

13

A27978

CLAMP

- injection tubes (Used prior to eng. S.N. 2651269)

2шт.

14

A27980

CUSHION

- tube clamp (Used prior to eng. S.N. 2651269)

2шт.

15

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- clamp (#10-24 x 1" rd. hd.)

2шт.

16

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

17

129-7

NUT,Hex, #10 - 24

- ( hex) #10-24

2шт.

20

A37836

NOZZLE

ASSY. - fuel injector (See note)

4шт.

A140829R

REMAN-INJECT NOZZLE

660 FIRST USED ENGINE SERIAL NUMBER 2627377, Reman For New P/N A37836

4шт.

A140829C

CORE-NOZZLE, INJECT

Return Number

1шт.

21

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - lift adjusting

1шт.

22

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting

1шт.

23

A42424

LOCK NUT

- lock

1шт.

24

A41407

WASHER

- ball type

1шт.

25

A41401

SEAT

- spring

2шт.

26

A41444

VALVE SPRING

SPRING - pressure adjusting

1шт.

27

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

28

A41405

PLATE

- nozzle locating

1шт.

29

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

30

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

31

A37837

CLAMP

ASSY. - injector nozzle

4шт.

32

A37839

SPACER

- nozzle clamp

4шт.

35

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - nozzle leak-off (Metal)

4шт.

36

A58961

NUT

- nozzle (Use w/A58960 tee)

4шт.

37

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- nozzle to tee (Use w/A58961 nut)

4шт.

38

A38644

TUBE

- leak-off (3-7/8" lg. used w/metal tee)

3шт.

39

87017024

TUBE NUT,1/2"-24

NUT - leak-off tube to tee (1/4" tube)

4шт.

40

222-102

SLEEVE,1/4" Tube

Leak-off tube to tee 1/4" Tube

4шт.

41

A38158

TUBE

- leak-off, injection, Serial Range: pump-boot

1шт.

42

A37838

BOOT

- nozzle leak-off (Nylon) (Order ref. 35, 36, 37, 38, 39, 40 and 41)

4шт.

43

214-104

HOSE CLAMP,#9, 9/16", Spring

CLAMP - boot (Use w/nylon boot)

4шт.

44

A37840

TUBE

- leak-off boot (4-3/16" lg. used w/nylon boot)

3шт.

45

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- injection pump leak-off (For 1/4" O.D. tube)

1шт.

46

222-102

SLEEVE,1/4" Tube

1шт.

47

87017024

TUBE NUT,1/2"-24

NUT - (For 1/4" O.D. tube)

1шт.

48

A38160

LOCK NUT

- elbow sealing

1шт.

49

A35777

PUMP, FUEL INJECTION

PUMP ASSY. - fuel injection (For breakdown, see page 390)

1шт.
