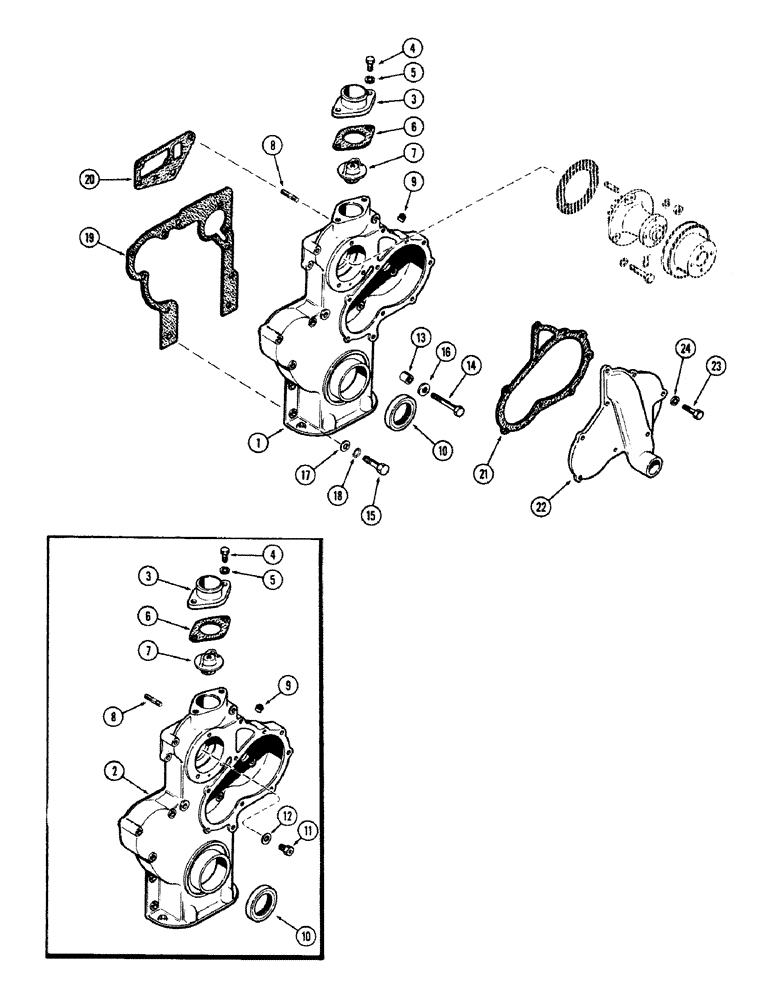

Запчасти Case IH 660 (385A) - TIMING GEAR COVER, 188 DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2679761
№
Артикул
Название
Примечание
Количество
1
A38088
COVER ASSY. - timing gear (Incl. items 3 thru 10) (Used eng. ser. no., Serial Range: 2631491-2679761)
1шт.
2
A36823
COVER
ASSY. - timing gear (Incl. items 3 thru 10) (Used prior to eng. ser. no. 2631491)
1шт.
3
G2144
FITTING
CONNECTION - water outlet
1шт.
4
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
2шт.
5
92-6
LOCK WASHER,3/8"
2шт.
6
G49907
GASKET -, Serial Range: connection-cover
1шт.
7
A57641
THERMOSTAT
E - (Replaces G45788)
1шт.
8
G11204
STUD
- injection pump, 3/8" N.C. x 1-7/16"
3шт.
10
A36609
OIL SEAL
- oil, crankshaft, 2-3/32" x 3" x 1/2"
1шт.
11
G49083
BOLT
- drilled, 1/2" x 3/4" N.C. hex (Used w/A36823)
1шт.
12
193-77
LOCK WASHER,Int Tooth, 1/2"
WASHER, LOCK, (Used w/G49083) Int Tooth, 1/2"
1шт.
13
A29442
RING
- dowel, Serial Range: cover-block
2шт.
14
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
1шт.
14
13-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
- 3/8" x 2-3/4" N.C. hex
3шт.
14
13-648
BOLT,Hex, 3/8" - 16 x 3", Gr 5
- 3/8" x 3" N.C. hex
1шт.
14
13-652
BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5
- 3/8" x 3-1/4" N.C. hex
3шт.
15
13-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
2шт.
15
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
3шт.
15
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- 3/8" x 1-1/2" N.C. hex
1шт.
16
195-25
WASHER,3/8"
- 13/32" x 13/16" x 1/16"
5шт.
17
92-6
LOCK WASHER,3/8"
12шт.
18
193-10
LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN
WASHER, LOCK, Ext Tooth, 3/8"
2шт.
19
A38228
GASKET
- cover to block (Replaces G46857)
1шт.
20
A38084
GASKET,1.27mm Thk
- cover to head (Replaces G46858)
1шт.
21
G46859
GASKET
- gear cover
1шт.
22
G2077
COVER ASSY
COVER - drive opening
1шт.
23
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
8шт.
23
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
1шт.
24
92-6
LOCK WASHER,3/8"
9шт.
Выбрано товаров: 30
