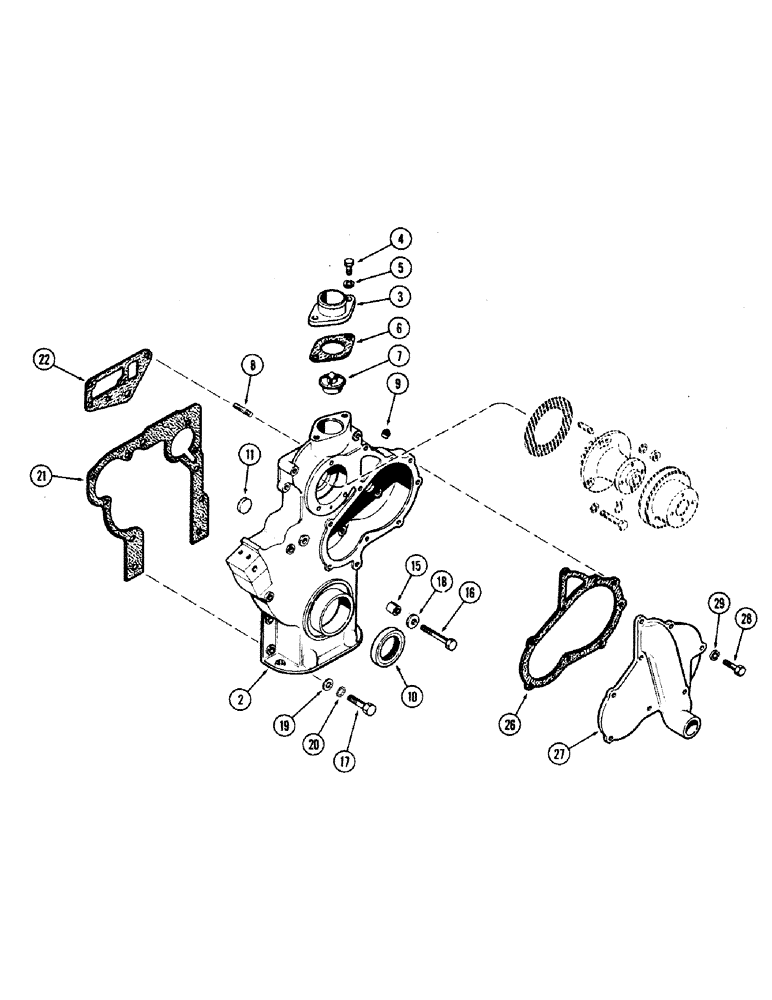

Запчасти Case IH 660 (384) - TIMING GEAR COVER, 188 DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 2679761

A38955

COVER ASSY. - timing gear

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - timing gear

1шт.

3

G2144

FITTING

CONNECTION - water outlet

1шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

G46907

GASKET

-, Serial Range: connection-cover

1шт.

7

A57641

THERMOSTAT

1шт.

8

G11204

STUD

- injection pump, 3/8" N.C. x 1-7/16"

3шт.

9

221-1022

PLUG,Sq Soc, 1/2"-14 NPTF

- 3/8" P.T. sckt. hd.

1шт.

10

A36609

OIL SEAL

- oil, crankshaft, 2-3/32" x 3" x 1/2"

1шт.

11

A58620

PLUG,Cup, 3/4", Stainless

- water cooler hole (49/64" cup)

1шт.

15

A29442

RING

- dowel, Serial Range: cover-block

2шт.

16

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

16

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8" x 2-3/4" N.C. hex

3шт.

16

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8" x 3" N.C. hex

1шт.

16

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8" x 3-1/4" N.C. hex

3шт.

17

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

17

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex

1шт.

18

195-25

WASHER,3/8"

- 13/32" x 13/16" x 1/16"

5шт.

19

92-6

LOCK WASHER,3/8"

12шт.

20

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

21

A38228

GASKET

- cover to block (Replaces G46857)

1шт.

22

A38084

GASKET,1.27mm Thk

-, Serial Range: cover-head

1шт.

26

G46859

GASKET

- gear cover

1шт.

27

G2077

COVER ASSY

COVER - timing gear housing

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

28

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

29

92-6

LOCK WASHER,3/8"

9шт.
