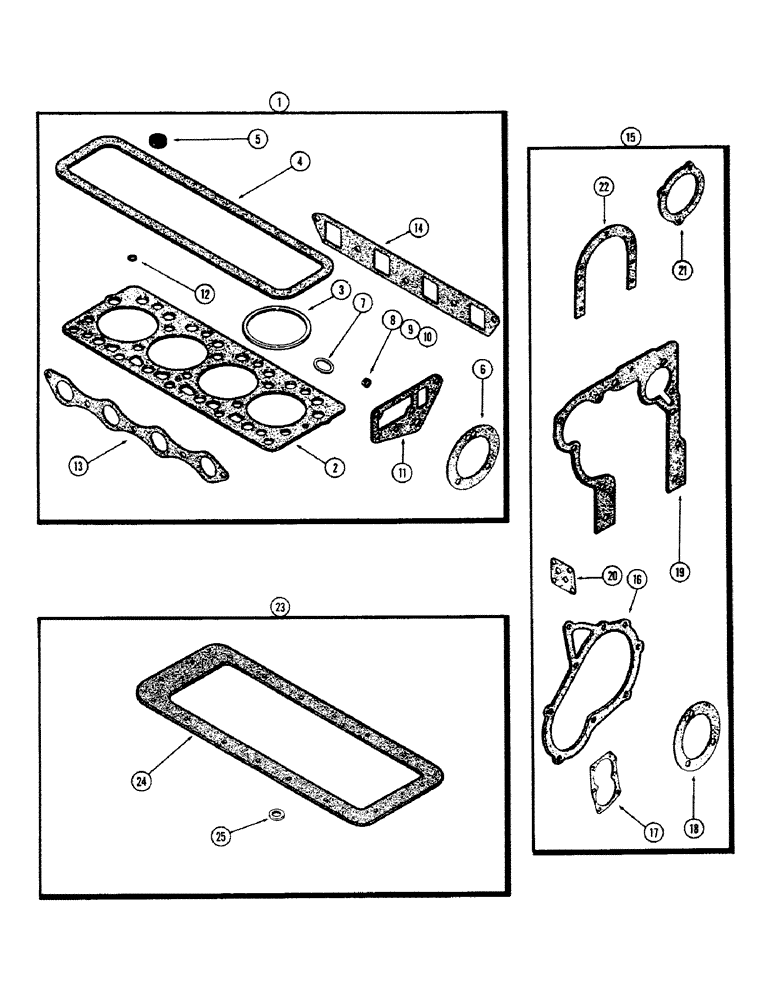

Запчасти Case IH 660 (382) - ENGINE GASKET KITS, 188 DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2639536

1

A40707

GASKET KIT

VALVE GRIND KIT - (See note)

1шт.

2

G46867

GROMMET

- valve cover (Rubber)

2шт.

3

G46866

GASKET

- valve cover

1шт.

4

A36877

GASKET

- cylinder head

1шт.

5

A36900

RING, PISTON

RING - fire, Serial Range: cylinder-head

4шт.

6

G46851

SEAL

- valve stem (Rubber)

8шт.

7

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

8

G46871

GASKET

- intake manifold

1шт.

9

G49068

GASKET

- fuel injector seat

4шт.

10

222-101

SLEEVE,3/16" Tube

- fuel line (For 3/16" tube)

4шт.

10

222-103

SLEEVE,5/16" Tube

Fuel line 5/16" Tube

4шт.

11

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - injection lines

8шт.

12

G46858

GASKET

- timing gear cover (Upper)

1шт.

13

G46875

GASKET

- water pump

1шт.

20

G11950

GASKET

CYLINDER BLOCK GASKET KIT - (See note)

1шт.

21

G46854

GASKET

- oil filter mounting bracket

1шт.

22

G46852

GASKET

- oil pump cover

1шт.

23

G46857

GASKET

- timing gear cover (Lower)

1шт.

24

G46859

GASKET

- timing gear cover (Front)

1шт.

25

G46875

GASKET

- water pump

1шт.

26

A38196

GASKET

- rear oil seal retainer

1шт.

27

A30042

GASKET

- power steering pump

1шт.

30

A40712

KIT

OIL PAN KIT - (See note)

1шт.

31

NSS

NOT SOLD SEPARAT

GASKET - pan to block (Order A40712)

1шт.

32

A58608

GASKET

- drain plug (Nylon)

1шт.
