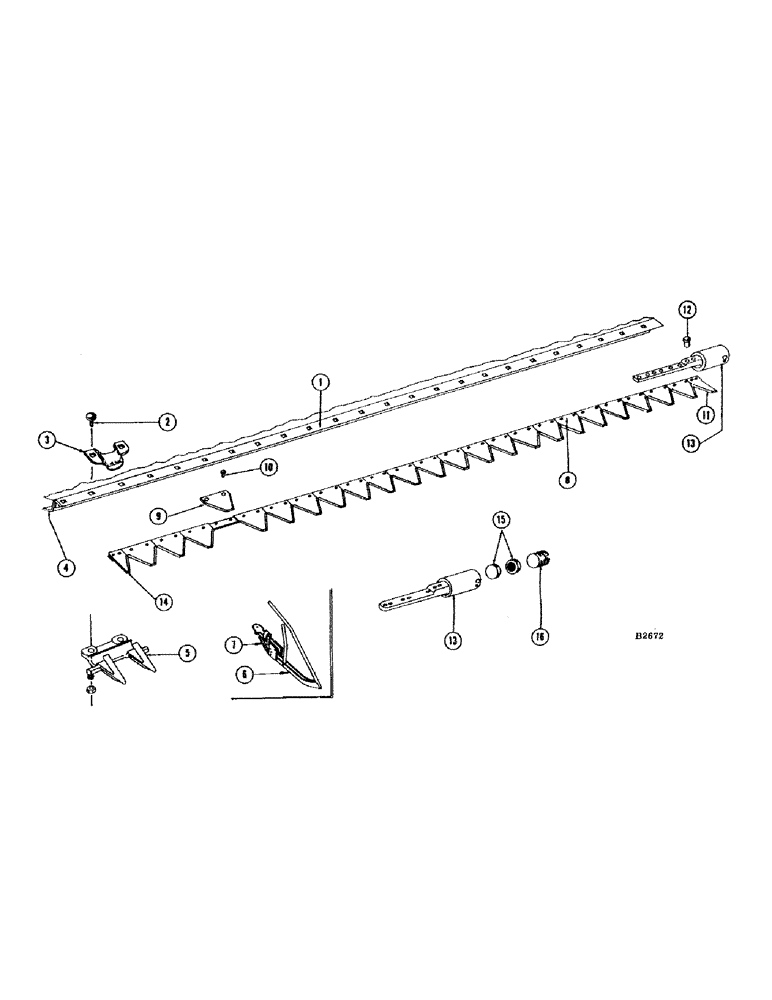

Запчасти Case IH 660 (041A) - SICKLE AND CUTTER BAR, NUMBER 8334601 AND AFTER

1

F16871

RAIL - cutter bar (10 ft. sickle)

1шт.

BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514)

9шт.

NUT - 5/16" N.C. hex. (25-105) lockwasher (92-5)

9шт.

F17545

RAIL - cutter bar (13 ft. sickle)

1шт.

BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514)

13шт.

NUT - 5/16" N.C. hex. (25-105) lockwasher (92-5)

13шт.

F19934

FLANGE BOLT

RAIL - cutter bar (14 ft. sickle)

1шт.

BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514)

15шт.

NUT - 5/16" N.C. hex. (25-105) lockwasher (92-5)

15шт.

2

111-304

BOLT - 3/8" x 1-1/4" N.F. rhd. sq. nk. #5 (For ref. 3 & 5)

1шт.

3

F13511

CLIP

- hold down (10 - 10 ft., 13 - 13 ft. and 14 - 14 ft.)

1шт.

4

F16872

REINFORCEMENT - cutter bar rail (10 ft. sickle)

1шт.

F17546

REINFORCEMENT - cutter bar rail (13 ft. sickle)

1шт.

F19935

REINFORCEMENT - cutter bar rail (14 ft. sickle)

1шт.

5

F3154

GUARD

- sickle (19 - 10 ft., 25 - 13 ft., and 27 - 14 ft.)

1шт.

BOLT - 3/8" x 1" N.F. rhd. sq. nk. grade 5 (111-363)

1шт.

NUT - 3/8" N.F. hex. (25-116) lockwasher (92-6)

1шт.

F3153

GUARD - sickle, L.H. end

1шт.

BOLT - 3/8" x 1" N.F. rhd. sq. nk. grade 5 (111-363)

2шт.

NUT - 3/8" N.F. hex. (25-116) lockwasher (92-6)

2шт.

6

F84171

GUARD - pickup, grain saving (Special)

1шт.

7

A30455

SPRING

1шт.

8

F92623

KNIFE ASSY

SICKLE - 10 ft. (w/39-MT944S sections) see F92622 or F96331

1шт.

F92615

KNIFE ASSY

SICKLE - 13 ft. (w/51-MT944S sections) see F92614 or F96332

1шт.

F92617

KNIFE ASSY

SICKLE - 14 ft. (w/55-MT944S sections) see F92616 or F96333

1шт.

9

MT944S

KNIFE SECTION

SECTION - underserrated (Standard)

1шт.

T13492

RIVET

- (#5-1/2 x 7/8" rhd. chrome plated) sickle head

1шт.

10

Z1690

RIVET

- (#5-1/2 x 9/16" rhd.) sections to bar (1 lb. pkg.)

1шт.

T13489

RIVET

- (#5-1/2 x 9/16" rhd. chrome plated) sections to bar (1 lb. pkg.)

1шт.

11

F13701

PLATE - filler

1шт.

47-418

RIVET - (1/4" x 1-1/8" flat hd.) filler, Serial Range: plate-head

2шт.

12

Z1716

RIVET

- (#5-1/2 x 1" rhd.) sickle head to bar (1 lb. pkg.)

5шт.

T13492

RIVET

- (#5-1/2 x 7/8" rhd. chrome plated) sickle head to bar (1 lb. pkg.)

5шт.

13

F77330

HEAD

- sickle

1шт.

14

F22513

CUTTER BAR

HALF SECTION - R.H. end

1шт.

F59129

HALF SECTION - R.H. (Chrome plated)

1шт.

15

A57918

SEAT

BEARING - Pitman socket (1 each side of head)

2шт.

16

F8360

ADJUSTMENT SCREW,1 5/16" - 18 x 3/4"

- adjusting, Pitman

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

1шт.

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

F92622

X

SICKLE - 10 ft. (w/39-T13010 sections)

1шт.

F92614

KNIFE ASSY

SICKLE - 13 ft. (w/51-T13010 sections)

1шт.

F92616

SICKLE - 14 ft. (w/55-T13010 sections)

1шт.

T13010

KNIFE SECTION

SECTION - underserrated, chrome plated (Special)

1шт.

F96331

SICKLE - 10 ft. (w/39-O14295S sections)

1шт.

F96332

SICKLE - 13 ft. (w/51-O14295S sections)

1шт.

F96333

SICKLE - 14 ft. (w/55-O14295S sections)

1шт.

O14295S

KNIFE SECTION

SECTION - top serrated (Special)

1шт.

F59106

KNIFE SECTION

SECTION - top serrated, chrome plated (Special)

1шт.

T13009

KNIFE SECTION

SECTION - smooth, chrome plated (Special)

1шт.
