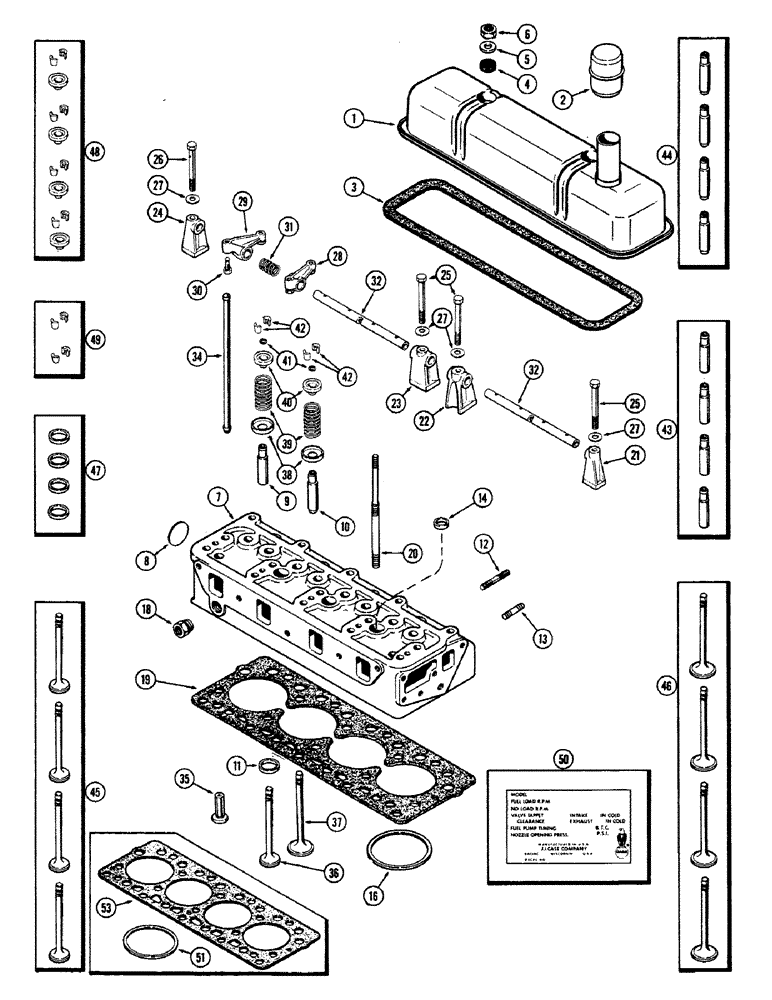

Запчасти Case IH 660 (378) - CYLINDER HEAD ASSEMBLY, 188 DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 2627377 AND AFTER

1

G37060

COVER - cylinder head

1шт.

2

A36608

CAP

- oil filler & breather

1шт.

3

G46866

GASKET

- cylinder head cover

1шт.

4

G46867

GROMMET

- cover (13/32 x 1-1/4 x 3/8" rubber)

2шт.

5

G49400

WASHER

- cover (13/32 x 1-5/32 x 10 Ga.)

2шт.

6

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

7

A37856

CYLINDER HEAD

HEAD ASSEMBLY - cylinder (Casting no. A37835)

1шт.

8

A30036

PLUG

- rear (1-3/4" expansion)

1шт.

9

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (See ref. 43)

4шт.

10

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (See ref. 44)

4шт.

11

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (See ref. 47)

1шт.

12

A35175

STUD

- manifold clamp (3/8" N.C. x 2-7/16")

6шт.

13

A29431

STUD

- manifold (3/8" N.C. x 1-3/4")

4шт.

14

41-1016

PLUG,Cup, 1"

- cylinder head, top (1" cup type)

3шт.

16

A38639

RING

- fire (Std. w/orange mark) (1st used eng. SN 2686844)

4шт.

16

A38651

RING

- fire (Oversize w/black mark) (1st used eng. SN 2656844)

4шт.

18

A30136

ADAPTER

- heat gauge bulb

1шт.

19

A38640

- head to block (1st used eng. SN 2656844)

1шт.

20

A36903

STUD

- head & cover

2шт.

21

G2100

BRACKET

- rocker shaft, front

1шт.

22

G2101

BRACKET

- rocker shaft, center

1шт.

23

G2102

BRACKET

- rocker shaft, intermediate

2шт.

24

A36615

BRACKET

- rocker shaft, rear

1шт.

25

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- bracket (3/8 x 3-1/2" N.C. hex.)

4шт.

26

G49067

BOLT

- rear bracket (3/8 x 3-1/2" N.C. hex. spec.)

1шт.

27

A30058

WASHER

- bracket bolts (13/32 x 7/8 x 1/8")

5шт.

28

G45770

ARM

ASSY. - rocker, right hand (Incl. item 30)

4шт.

29

G45771

ARM

ASSY. - rocker, left hand (Incl. item 30)

4шт.

30

G49075

ADJUSTMENT SCREW,3/8" - 24 x 0.50"

- adjusting, rocker arm

1шт.

31

G48501

SPRING

- rocker shaft

4шт.

32

A38181

SHAFT

- rocker arm, front and rear

2шт.

34

G47079

ROD

- push

8шт.

35

G47077

TAPPET

- valve

8шт.

36

NSS

NOT SOLD SEPARAT

VALVE - exhaust (See ref. 45)

4шт.

37

NSS

NOT SOLD SEPARAT

VALVE - intake (See ref. 46)

4шт.

38

G49065

SEAT

- valve spring

8шт.

39

A30025

SPRING

- valve (2-3/8" free length)

8шт.

40

NSS

NOT SOLD SEPARAT

RETAINER - valve spring (See ref. 48)

8шт.

41

G46851

SEAL

- valve stem (19/64 x 27/64 x 5/64" rubber)

8шт.

42

NSS

NOT SOLD SEPARAT

LOCK - valve spring keeper (See ref. 49)

16шт.

43

G11946

GUIDE

KIT - exhaust valve (Set of 4)

1шт.

44

G11945

GUIDE

KIT - intake valve (Set of 4)

1шт.

45

A41727

VALVE

KIT - exhaust (Set of 4)

1шт.

48

A41726

VALVE

KIT - intake (Set of 4)

1шт.

47

G11986

KIT

INSERT KIT - exhaust valve (Set of 4)

1шт.

48

G11927

RETAINER

KIT - valve spring, w/locks (Set of 4 retainers and 8 locks)

2шт.

49

G11929

LOCK

KIT - valve keepers (Set of 4)

4шт.

50

321-1373

DECAL - engine data

1шт.

51

A36900

RING, PISTON

RING - fire (Std. w/orange mark) (Used prior to eng. SN 2656844)

4шт.

51

A37031

RING

- fire (Oversize w/black mark) (Used prior to eng. SN 2656844)

4шт.

53

A36877

GASKET

- cylinder head (Used prior to eng. SN 2656844)

1шт.
