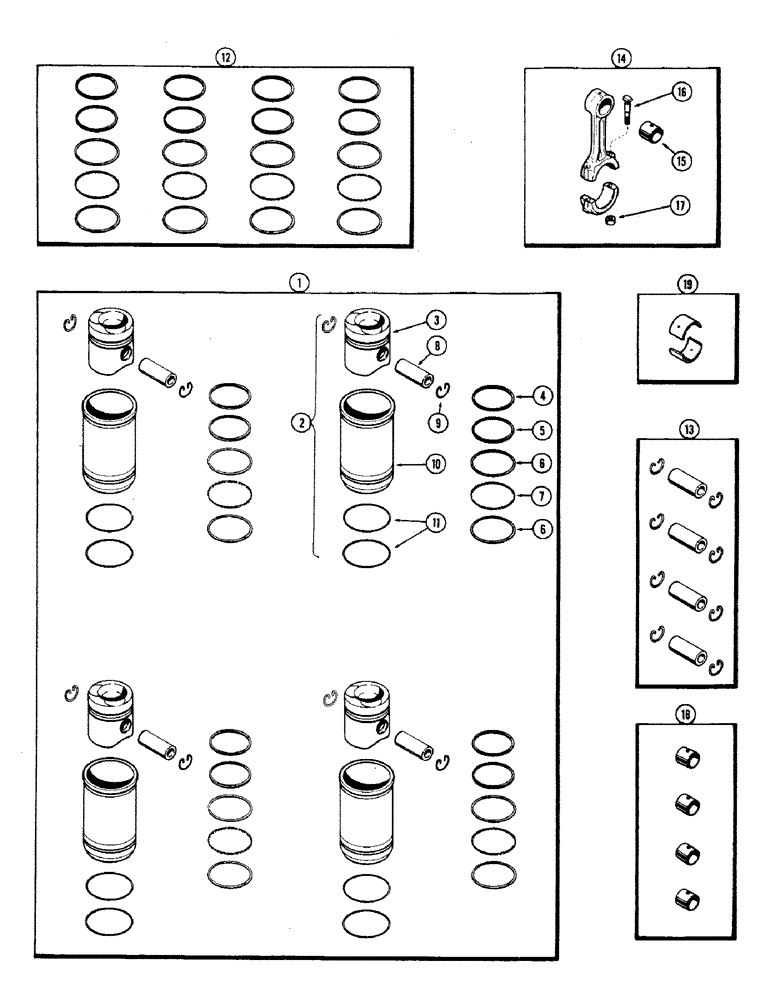

Запчасти Case IH 660 (376) - PISTON ASSY. & CONNECTING RODS, 188 DIESEL, W/ WIDE FLANGED SLEEVES, SERIAL NO. 2614827 THRU 2656843

1

A37764

PISTON & SLEEVE SET - (Set of 4)

1шт.

2

A37769

X

PISTON & SLEEVE ASSY.- (Set of 1)

4шт.

3

G2137

X

PISTON

1шт.

4

G4819

RING

- compression, 1st groove (See ref. 12)

1шт.

5

G4817

RING

- compression, 2nd groove (See ref. 12)

1шт.

6

G47155

RAIL

- oil control, 3rd groove (See ref. 12)

2шт.

7

G47174

SPRING

SPACER - oil control rails (See ref. 12)

1шт.

8

NSS

NOT SOLD SEPARAT

PIN - piston (See ref. 13)

1шт.

9

G46702

RING, LOCKING

RING - snap, piston pin ret.

2шт.

10

A37763

X

SLEEVE - piston (Cylinder liner) (See note)

1шт.

11

G46888

O-RING,3.737" ID x 3.943" OD

- sleeve packing

2шт.

12

G37075

RING

SET - (Set of 4)

1шт.

13

A35771

KIT

PIN SET - piston (Set of 4 pins & 8 rings)

1шт.

14

G11847

ROD

ASSEMBLY - connecting

4шт.

15

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (See ref. 18)

1шт.

16

G49064

STEP BOLT

BOLT - conn. rod cap

2шт.

17

G49060

NUT

- conn. rod bolt

2шт.

18

G11953

BUSHING

SET - piston pin (Set of 4)

1шт.

19

A36500

SEAL

INSERT ASSY. - conn. rod brg. (Std.)

4шт.

19

A36501

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.002")

4шт.

19

A36502

LINING

INSERT ASSY. - conn. rod brg. (-.010")

4шт.

19

A36503

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.020")

4шт.

19

A36504

KIT

INSERT ASSY. - conn. rod brg. (-.030")

4шт.
