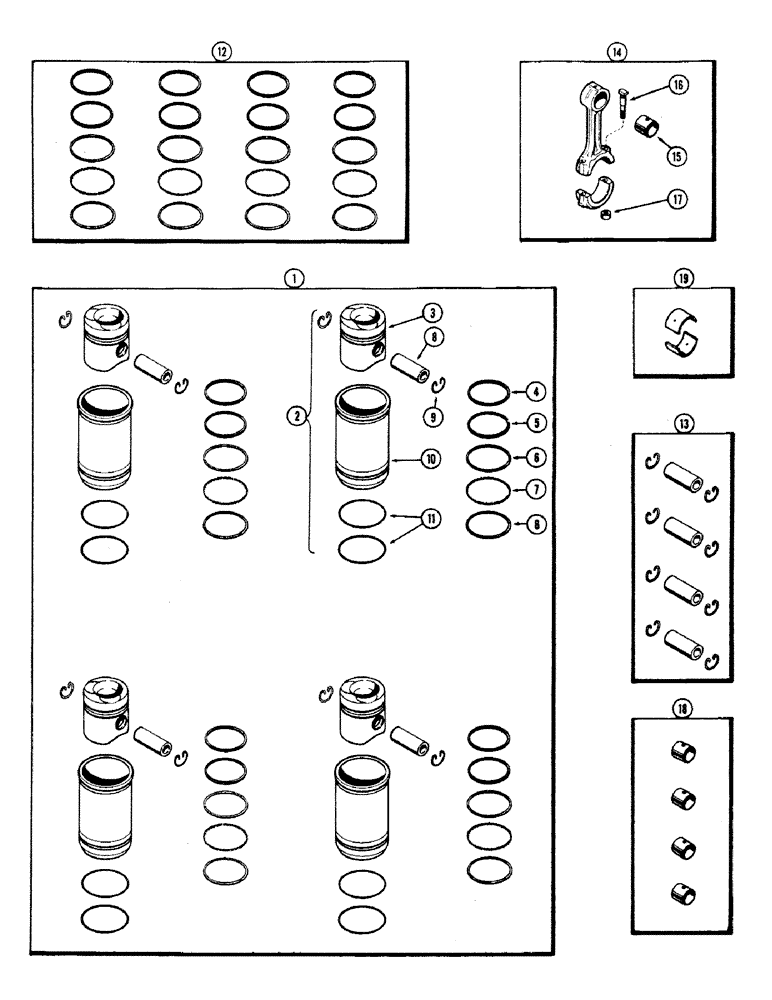

Запчасти Case IH 660 (375A) - PISTON ASSY. & CONNECTING RODS, 188 DIESEL, WITH WIDE FLANGED SLEEVES, SERIAL NO. 2656844 AND AFTER

1

A42813

PISTON

& SLEEVE - (Set of 4) (Replaces A42002) (Also order A42001 valve grind kit)

1шт.

2

A42812

SLEEVE

PISTON & SLEEVE - (Set of 1) (Replaces A42003) (Also order A42001 valve grind kit)

1шт.

3

A38424

PISTON

1шт.

4

G4819

RING

- compression, 1st groove, (See ref. 12)

1шт.

5

G4817

RING

- compression, 2nd groove (See ref. 12)

1шт.

6

G47155

RAIL

- oil control, 3rd groove (See ref. 12)

2шт.

7

G47174

SPRING

SPACER - oil control rails (See ref. 12)

1шт.

8

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 13)

1шт.

9

G46702

RING, LOCKING

RING - snap, piston pin ret.

2шт.

10

A39006

SLEEVE

- piston (Replaces A38638)

1шт.

11

G46888

O-RING,3.737" ID x 3.943" OD

"O"-RING - sleeve packing

2шт.

12

G37075

RING

SET - (Set of 4)

1шт.

13

A35771

KIT

PIN SET - piston (Set of 4 pins and 8 rings)

1шт.

14

G11847

ROD

ASSEMBLY - connecting

4шт.

15

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 18)

1шт.

16

G49064

STEP BOLT

BOLT - conn. rod cap

2шт.

17

G49060

NUT

- conn. rod bolt

2шт.

18

G11953

BUSHING

SET - piston pin (Set of 4)

1шт.

19

A36500

SEAL

INSERT ASSY. - conn. rod brg. (Std.)

4шт.

19

A36501

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.002")

4шт.

19

A36502

LINING

INSERT ASSY. - conn. rod brg. (-.010")

4шт.

19

A36503

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.020")

4шт.

19

A36504

KIT

INSERT ASSY. - conn. rod brg. (-.030")

4шт.
