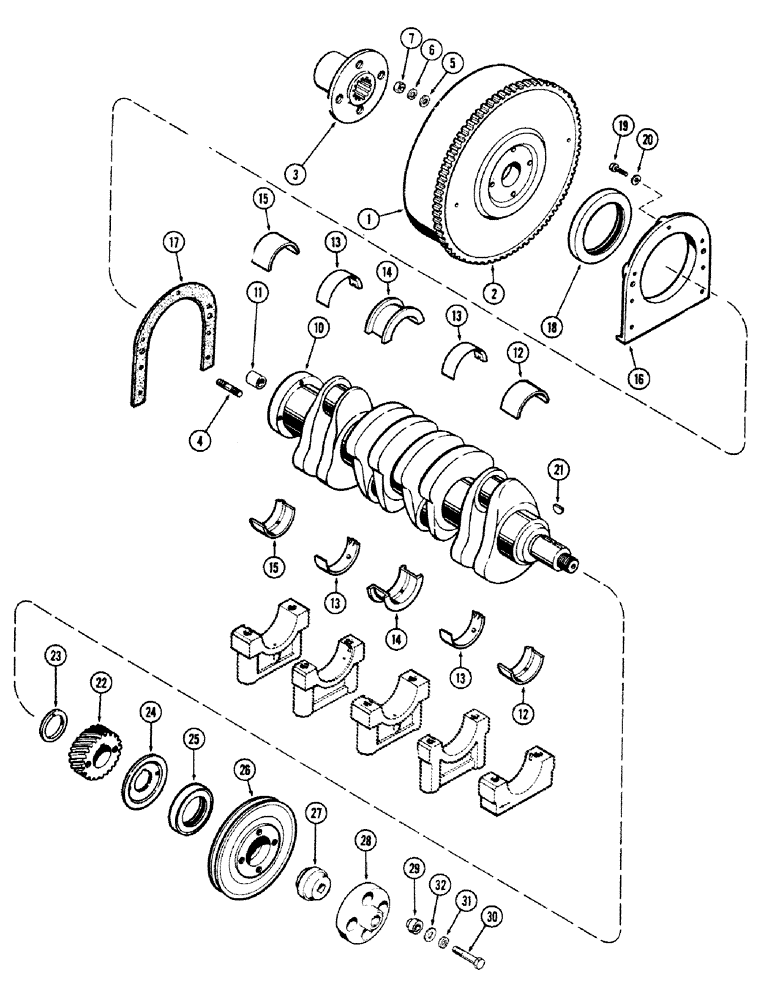

Запчасти Case IH 660 (374) - CRANKSHAFT AND FLYWHEEL, 188 DIESEL ENGINE

1

G37061

FLYWHEEL ASSY.

1шт.

2

G11710

GEAR

- starter ring

1шт.

3

F3408

HUB - flywheel

1шт.

4

G11374

STUD

- flywheel (7/16" N.F. x 2-1/4") (Order A37216)

4шт.

A37216

BOLT

- flywheel (7/16 x 1-1/2" N.F. Gr. 8) (Not shown)

4шт.

5

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- 29/64 x 3/4 x 1/16"

4шт.

6

92-7

LOCK WASHER,7/16"

4шт.

7

25-117

NUT,7/16"-20, G5

- (7/16" N.F. hex)

4шт.

10

A37211

CRANKSHAFT

- w/13 int. spline teeth (First used eng. ser. #2614827)

1шт.

10

G11889

CRANKSHAFT

ASSY. - (Used prior to eng. ser. #2614827)

1шт.

11

A30024

BUSHING,15.98mm ID x 20.73mm OD x 22.23mm L

- pilot (5/8 x 13/16 x 7/8")

1шт.

12

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

INSERT ASSY. - main brg., front (Std.)

1шт.

12

A36481

LINING

INSERT ASSY. - main brg., front (-.002")

1шт.

12

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

INSERT ASSY. - main brg., front (-.010")

1шт.

12

A36483

LINING

INSERT ASSY. - main brg., front (-.020")

1шт.

12

A36484

LINING

INSERT ASSY. - main brg., front (-.030")

1шт.

13

A36485

LINING

INSERT ASSY. - main brg., intermediate (Std.)

2шт.

13

A36486

LINING

INSERT ASSY. - main brg., intermediate (-.002")

2шт.

13

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

INSERT ASSY. - main brg., intermediate (-.010")

2шт.

13

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

INSERT ASSY. - main brg., intermediate (-.020")

2шт.

13

A36489

LINING

INSERT ASSY. - main brg., intermediate (-.030")

2шт.

14

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

INSERT ASSY. - main brg., center (Std.)

1шт.

14

A36491

LINING

INSERT ASSY. - main brg., center (-.002")

1шт.

14

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

INSERT ASSY. - main brg., center (-.010")

1шт.

14

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

INSERT ASSY. - main brg., center (-.020")

1шт.

14

A36494

LINING

INSERT ASSY. - main brg., center (-.030")

1шт.

15

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

INSERT ASSY. - main brg., rear (Std.)

1шт.

15

A36496

LINING

INSERT ASSY. - main brg., rear (-.002")

1шт.

15

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

INSERT ASSY. - main brg., rear (-.010")

1шт.

15

A36498

KIT

INSERT ASSY. - main brg., rear (-.020")

1шт.

15

A36499

BEARING LINER

INSERT ASSY. - main brg., rear (-.030")

1шт.

16

A38390

RETAINER

- rear oil seal (Replaces G2017)

1шт.

17

A38196

GASKET

- rear oil seal retainer

1шт.

18

A36610

OIL SEAL

- oil, crankshaft, rear (4 x 5 x 1/2")

1шт.

19

113-25

X

BOLT - retainer (1/4 x 3/4" N.C. hex)

4шт.

19

113-26

BOLT

- retainer (1/4 x 1" N.C. hex)

3шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

21

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & timing gear (1/4 x 1-1/16" Hi-Pro)

2шт.

22

A29263

GEAR

- crankshaft timing

1шт.

23

A29294

BUSHING

WASHER - thrust, timing gear

1шт.

24

A29259

SLINGER

- oil

1шт.

25

A36609

OIL SEAL

- oil, crankshaft, front (2-1/8 x 3 x 1/2")

1шт.

26

G11342

X

PULLEY - fan & generator drive

1шт.

27

A35673

NUT

- pulley retaining

1шт.

28

G36217

HUB ASSY.

COUPLING ASSEMBLY - flexible

1шт.

29

G36905

BLOCK

- rubber, with steel insert

4шт.

30

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

Coupling Hex, 7/16"-14 x 1 1/4", G5, Full Thd

4шт.

31

92-7

LOCK WASHER,7/16"

4шт.

32

95-7

WASHER,7/16"

- 1/2 x 1-1/4 x 5/64"

4шт.
