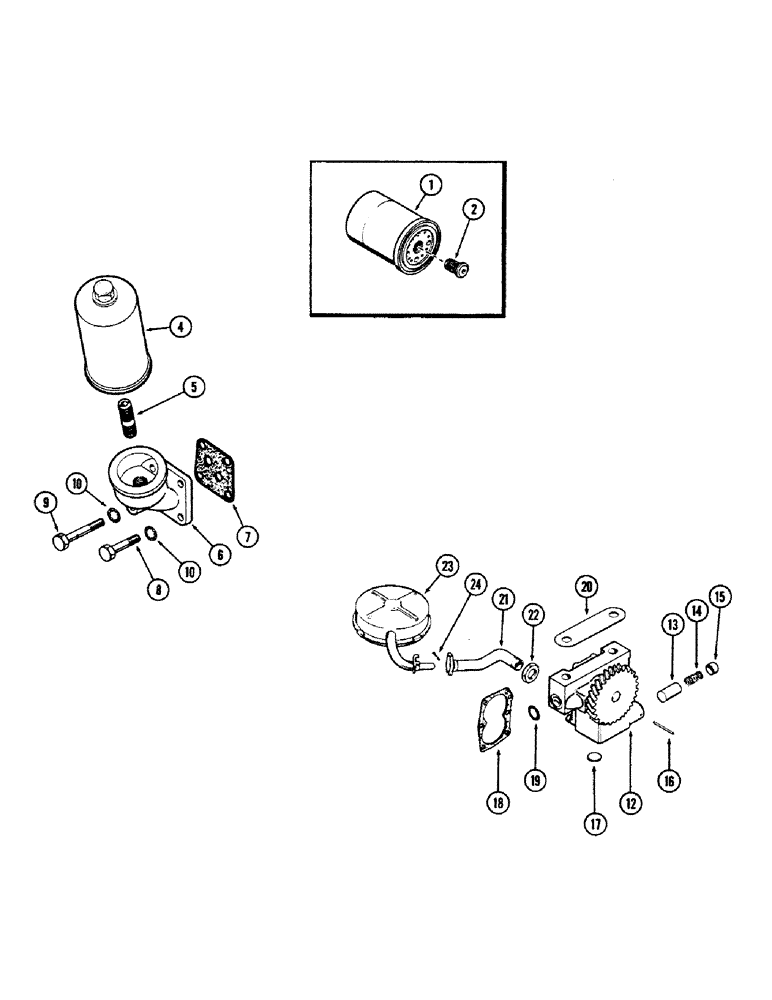

Запчасти Case IH 660 (372) - OIL FILTERS, 188 DIESEL ENGINE, FLANGE MOUNTED, FIRST USED ENGINE SERIAL NUMBER 2615012

1

A37189

FILTER, ELEMENT

FILTER - oil, engine (Replaces G45210), Flange Mounted

1шт.

First used Engine Ser. No. 2615012

1шт.

2

A153552

ADAPTER

-, Serial Range: filter-block

1шт.

4

G45210

FILTER, ELEMENT

FILTER - oil, engine, Bracket Mounted

1шт.

Used prior to Engine Ser. No. 2615012

1шт.

5

G49074

ADAPTER -, Serial Range: filter-bracket

1шт.

6

G2118

BRACKET - filter mounting

1шт.

7

G46854

GASKET

-, Serial Range: bracket-block

1шт.

8

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Bracket Hex, 5/16"-18 x 7/8", G5, Full Thd

3шт.

9

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Bracket Hex, 5/16"-18 x 2", G5

1шт.

10

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

12

G37070

X

PUMP ASSY. - oil (Complete)

1шт.

13

A155144

VALVE, PRESSURE RELI

- relief, oil pump

1шт.

14

G48500

SPRING

- pressure, relief valve (2-1/8" free length), oil pump

1шт.

15

A29260

RETAINER

CAP - relief valve spring, oil pump

1шт.

16

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN, , Cap, oil pump 1/8" x 1 1/8", Slotted

1шт.

17

41-102

PLUG,Exp, 1/2"

- pump body (1/2" expansion), oil

2шт.

18

G46852

GASKET

- pump cover, oil

1шт.

19

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O"-RING - oil port (3/4 x 15/16 x 3/32"), pump

1шт.

20

G11337

SHIM,.002" Thk

Pump to bearing cap, Oil .002" Thk

1шт.

20

G11338

SHIM,.005" Thk

Pump to bearing cap, Oil .005" Thk

1шт.

21

G45766

PIPE, EXHAUST SYSTEM

PIPE - suction, oil pump

1шт.

22

223-207

LOCK NUT

NUT - pipe to pump (3/8" conduit locknut), oil

1шт.

23

A30126

FLOAT - oil pan, pump

1шт.

24

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Oil pump 1/8" x 1 1/4"

1шт.
