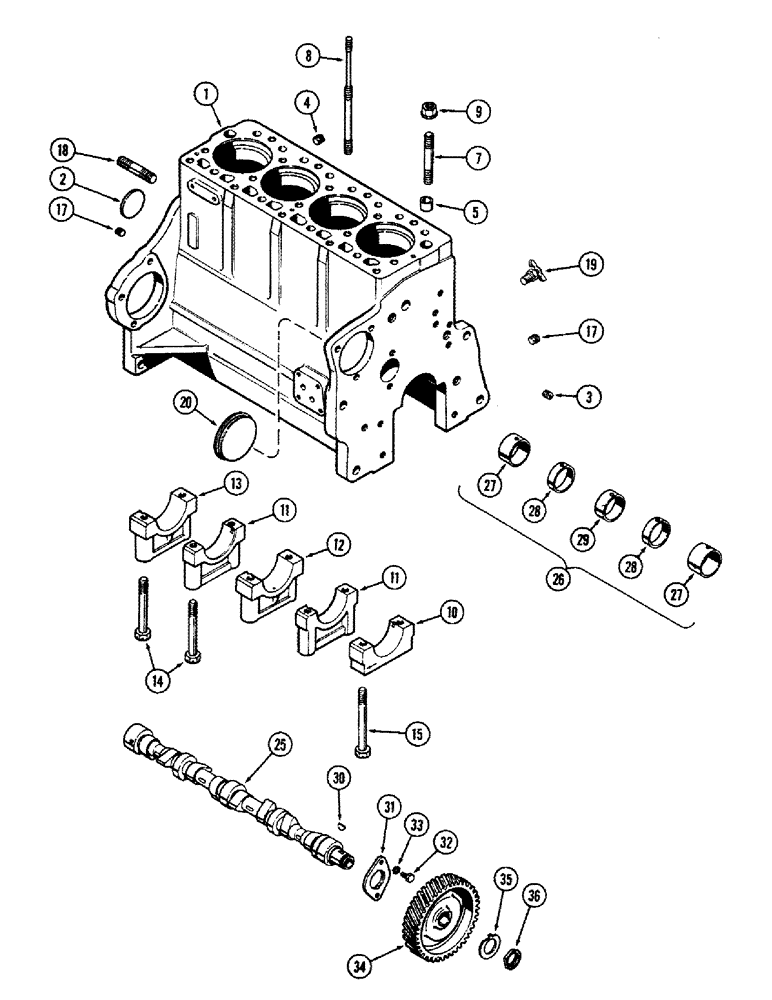

Запчасти Case IH 660 (368) - CYLINDER BLOCK ASSY., 188 DIESEL ENG., FOR WIDE FLANGE SLEEVES, ENG. SERIAL NO. 2610997 THRU 2614826

1

A37773

BLOCK ASSY. - cylinder, short (Not illust.) (Order A40817) (Incl. stripped block, crankshaft & brgs., camshaft, timing gears, piston assy., connecting rods & brgs. and oil pump assy.)

1шт.

1

A37772

BLOCK ASSY. - cylinder, stripped (Order A40818)

1шт.

2

A39241

PLUG,Exp, 2.12" dia

- camshaft hole, 2-1/8" exp.

1шт.

3

G49070

PLUG

- oil gallery, front, drilled

1шт.

4

221-32

PLUG,Sq Soc, 3/8"-18 NPTF

- water jacket, 3/8" P.T., ctsk. sckt. hd.

1шт.

5

G49608

RING

DOWEL - ring, head locating (17/32 x 3/4 x 7/8")

2шт.

7

A36904

STUD

- cyl. head (1/2" N.C. x 4")

4шт.

7

A36902

STUD

- cyl. head (1/2" N.x. x 5-5/8")

11шт.

7

A36905

STUD

- cyl. head (1/2" N.C. x 6")

2шт.

8

A36903

STUD

- cyl. head and cover

2шт.

9

A37030

FLANGE NUT

- cyl. hd. stud (1/2" N.C., flanged)

19шт.

10

G2126

CAP

- main brg., front

1шт.

11

G2128

CAP

- main brg., intermediate

2шт.

12

G2127

CAP

- main brg., center

1шт.

13

G2129

CAP

- main brg., rear

1шт.

14

G49078

BOLT - brg. caps, 1/ x 4-1/2" N.C. spec.

8шт.

15

G49077

BOLT

- front brg. cap (1/2 x 5-1/8" N.C. spec.)

2шт.

17

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- oil gallery (1/4" P.T., ctsk. sckt. hd.)

2шт.

18

A29365

STUD - engine, (5/8" N.C./N.F. x 2-1/2")

2шт.

19

217-103

COCK, DRAIN

COCK - drain, engine block

1шт.

20

A29268

PLUG

COVER - pump hole

1шт.

25

A36853

X

CAMSHAFT

1шт.

26

A41232

KIT

BUSHING SET - camshaft (Replaces A36317), Serial Range: (Reamed-size)

1шт.

27

NSS

NOT SOLD SEPARAT

BUSHING - front & rear (1-7/32" wide), camshaft

2шт.

28

NSS

NOT SOLD SEPARAT

BUSHING - intermediate (1/2" wide), camshaft

2шт.

29

NSS

NOT SOLD SEPARAT

BUSHING - center (23/32" wide), camshaft

1шт.

30

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Camshaft gear #6, 5/32" x 5/8"

1шт.

31

A29290

PLATE

- thrust, camshaft

1шт.

32

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

- thrust plate, 5/16 x 1/2" N.C. spec., camshaft

2шт.

33

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, , Camshaft Ext Tooth, 5/16"

2шт.

34

G2066

X

GEAR - camshaft timing

1шт.

35

A29438

LOCK NUT

WASHER - tab, camshaft nut lock

1шт.

36

A30063

NUT

-, Serial Range: gear-camshaft

1шт.
