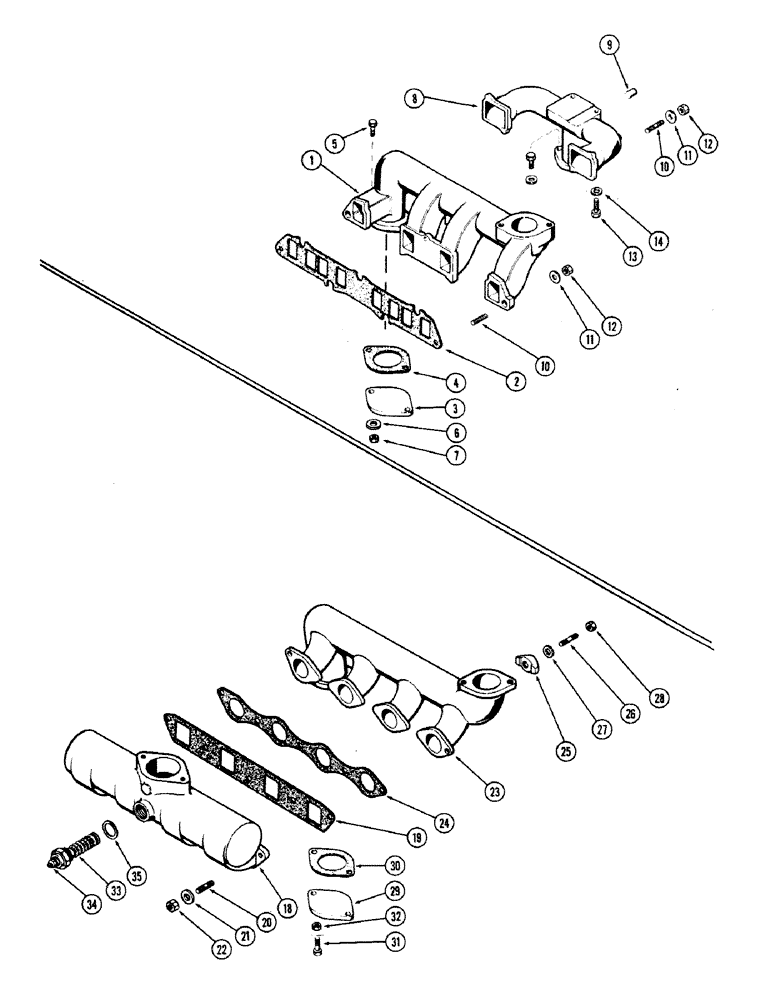

Запчасти Case IH 660 (364) - MANIFOLD, (201) SPARK IGNITION ENGINE

1

G2097

MANIFOLD

- exhaust, 201 Spark Ignition Engine

1шт.

2

G46868

MANIFOLD GASKET

-, Serial Range: manifold-head

1шт.

3

A38188

PLATE

COVER - exhaust opening

1шт.

4

G46853

MANIFOLD GASKET

- exhaust opening cover

1шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover, 3/8" x 1-1/2" N.C. hex

2шт.

6

195-25

WASHER,3/8"

- 13/32" x 13/16" x 1/16"

2шт.

7

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex (Seez-Pruf)

2шт.

8

A37170

MANIFOLD

- intake (Takes 1/4" plug), 201 Spark Ignition Engine

1шт.

9

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - 1/4" P.T., sq. hd.

1шт.

8

G11989

MANIFOLD

- intake (Takes 1/8" plug), 201 Spark Ignition Engine

1шт.

9

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" P.t., sq. hd.

1шт.

10

A29431

STUD

- manifold, 3/8" N.C. x 1-3/4"

7шт.

11

A30058

WASHER

- manifold stud, 13/32" x 7/8" x 1/8"

7шт.

12

131-902

NUT,1/4"-28

- 3/8" N.C. hex (Seez-Pruf)

7шт.

13

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- intake manifold, 3/8" x 2-1/2" N.C. hex

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

18

A35782

MANIFOLD

- intake, 188 Diesel Engine

1шт.

19

G46871

GASKET

- intake manifold to head, 188 diesel engine

1шт.

20

A29431

STUD

- intake manifold, 3/8" x 1-3/4" N.C., 188 diesel engine

4шт.

21

92-6

LOCK WASHER,3/8"

188 diesel engine 3/8"

4шт.

22

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex, 188 diesel engine

6шт.

23

G2113

EXHAUST MANIFOLD

MANIFOLD - exhaust, 188 Diesel Engine

1шт.

24

G46872

MANIFOLD GASKET

- exhaust manifold, 188 diesel engine

1шт.

25

A35028

CLAMP

- exhaust manifold, 188 diesel engine

6шт.

26

A35175

STUD

- clamp, 3/8" x 2-7/16" N.C., 188 diesel engine

6шт.

27

195-25

WASHER,3/8"

- 13/32" x13/16" x1/16", 188 diesel engine

6шт.

28

131-903

NUT,3/8"-16

NUT - 3/8" N.C. (Seez-Pruf), 188 diesel engine

4шт.

29

A38188

PLATE

COVER - exhaust opening, 188 diesel engine

1шт.

30

G46853

MANIFOLD GASKET

- exhaust opening cover, 188 diesel engine

1шт.

31

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover, 3/8" x 1-1/2" N.C. hex, 188 diesel engine

2шт.

32

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex (Seez-Pruf), 188 diesel engine

2шт.

33

A37775

HEATER

ASSY. - manifold (Replaces A24396), 188 diesel engine

1шт.

34

129-503

NUT,1/4"-20, Brass

188 Diesel Engine 1/4"-20, Brass

1шт.

35

A20916

MANIFOLD GASKET

GASKET - heater to manifold, 188 diesel engine

1шт.
