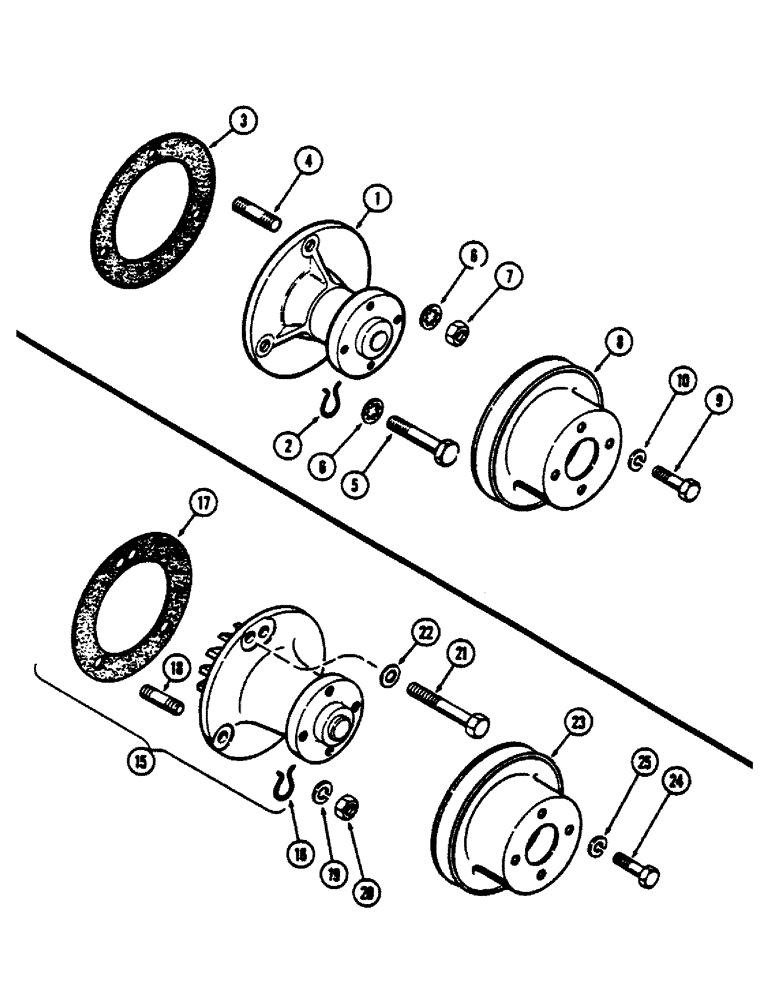

Запчасти Case IH 660 (362) - WATER PUMP, (201) SPARK IGNITION ENGINE

1

A37759

PUMP

ASSY. - water (Complete) (Replaces G11969), 201 Spark Ignition Engine

1шт.

2

A30067

RING

- retainer

1шт.

3

A38083

GASKET

-, Serial Range: pump-engine

1шт.

4

A29433

STUD

- pump to engine (3/8" N.C. x 1-1/8")

1шт.

5

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Pump Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

5

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- pump (3/8" x 2-3/4" N.C. hex)

1шт.

6

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

7

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

8

G11339

PULLEY

- pump and fan drive

1шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Pulley Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

10

92-5

LOCK WASHER,5/16"

4шт.

15

A39074

PUMP

ASSY. - water (Replaces A37758), 188 Diesel Engine

1шт.

16

A30067

RING

- retainer, 188 diesel engine

1шт.

17

A38083

GASKET

- pump to engine, 188 diesel

1шт.

18

A29433

STUD

- pump to engine, 3/8" N.C. x 1-1/8", 188 diesel

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex, 188 diesel engine

2шт.

21

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8" x 2-3/4" N.C. hex, 188 diesel engine

1шт.

22

A22317

WASHER

- 25/64" x 9/16" x 3/64" copper, 188 diesel engine

1шт.

23

G11339

PULLEY

- pump and fan drive, 188 diesel engine

1шт.

24

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Pulley, 188 diesel engine Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

25

92-5

LOCK WASHER,5/16"

188 diesel engine 5/16"

4шт.
